956 I/C (3070208) - Giant-Vac Hard Surface Heavy Duty Lawn Vac, 14.5hp 956 I/C Hard Surface Vacuum Parts Diagram

Hard Surface Heavy Duty Lawn Vac, 14.5hp

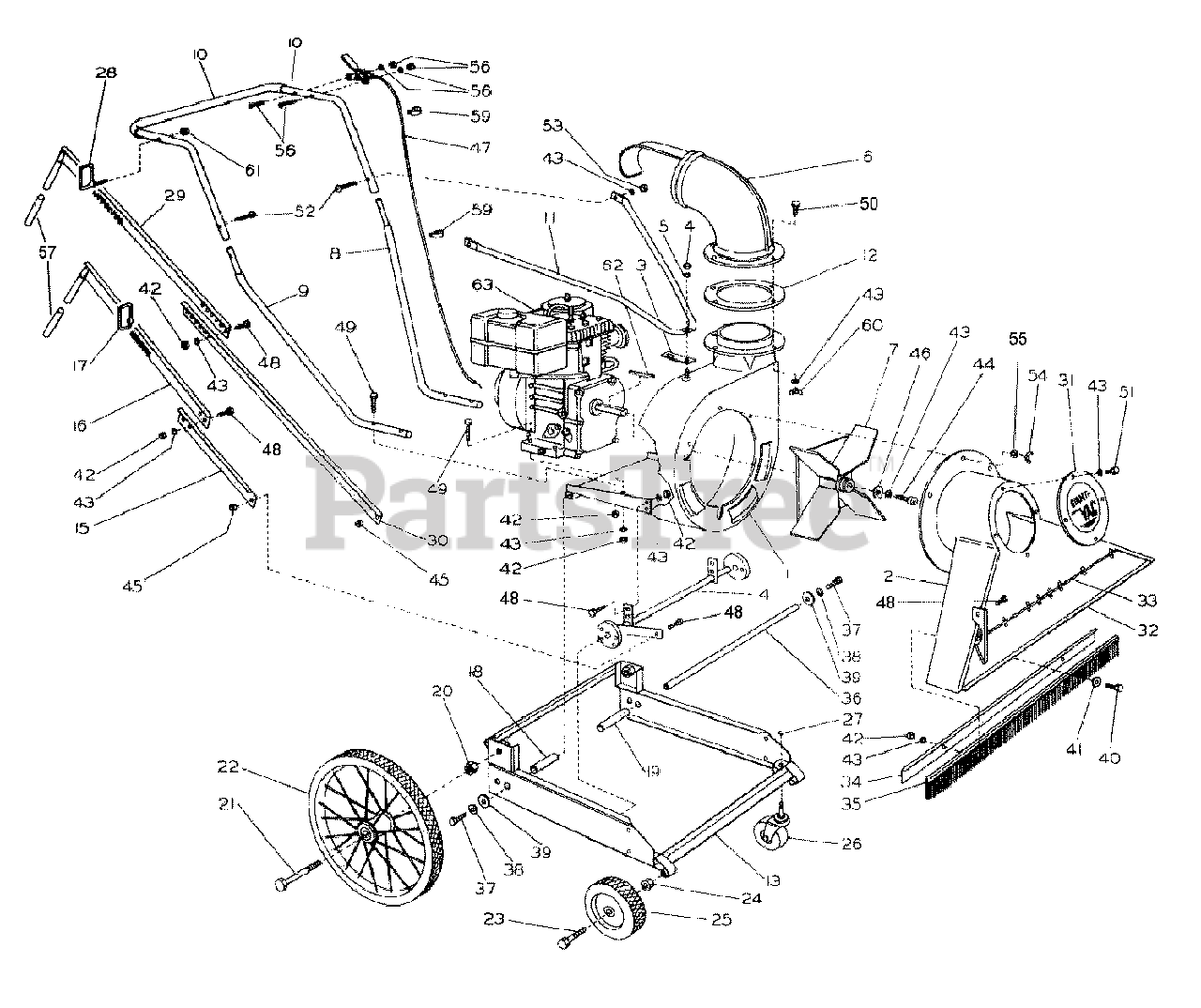

956 I/C Hard Surface Vacuum Parts Diagram

  • Title

1

Giant-Vac 3010235

Blower housing & engine base

$

$

Not available

2

Giant-Vac 3027059

30F nose cone body

$

$

Currently unavailable

2

Giant-Vac 3027061

36F nose cone body

$

$

Currently unavailable

2

Giant-Vac 3027058

30C nose cone body

$

$

Currently unavailable

2

Giant-Vac 3027060

36C nose cone body

$

$

Currently unavailable

3

Giant-Vac 3031591

Anti-vibration bracket

$

$

Not available

4

Giant-Vac 3031009

Nut, 3/8’ hex
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

5

Giant-Vac 3031115

Washer, 3/8 lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

6

Giant-Vac 3024510

Exhaust elbow

$

$

Not available

7

Giant-Vac 3021558

Impeller (complete w/Taper-Lok hub #46)

$

$

Currently unavailable

8

Giant-Vac 3023013

Lower handle left

$

$

Not available

9

Giant-Vac 3023010

Lower handle right

$

$

Not available

10

Giant-Vac 3023009

Upper handle

$

$

Currently unavailable

10

Giant-Vac 1723568

Foam handle cover

Note: was 3031590

$

$

Not available

11

Giant-Vac 3023011

Handle brace

$

$

Not available

12

Giant-Vac 3031105

Rubber gasket

$

$

Not available

13

Giant-Vac 3027055

Under carriage

$

$

Currently unavailable

14

Giant-Vac 3027056

Lifter cam

$

$

Currently unavailable

15

Giant-Vac 3023038

Lower lifter arm

$

$

Not available

16

Giant-Vac 3023039

Upper lifter arm

$

$

Not available

17

Giant-Vac 3031111

Lifter arm U clip

$

$

Currently unavailable

18

Giant-Vac 3033152

Spacer back wheel - right

$

$

Not available

19

Giant-Vac 3033043

Spacer back wheel - left

$

$

Not available

20

3031110

Nut, 3/4 hex

$

$

Not available

21

Giant-Vac 3031109

Bolt, 3/4 x 5 hex

$

$

Not available

22

Giant-Vac 3033041

Wheel, 20 - Rear

$

$

Currently unavailable

23

Giant-Vac 3031461

Bolt, 1/2-13 x 2-1/2 hex
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

24

Giant-Vac 3031022

Nut, 1/2-13 hex

$

$

Currently unavailable

25

Giant-Vac 3033010

Wheel, 8 x 1.75 - Front

$

$

Currently unavailable

26

Giant-Vac 3033009

4 caster wheel – plain stem

$

$

Not available

27

-----

Snap clip – comes with 4 caster

$

$

Not available

28

Giant-Vac 3031102

U type holder

$

$

Not available

29

Giant-Vac 3023040

Upper adjuster bar

$

$

Not available

30

Giant-Vac 3023041

Lower adjuster bar

$

$

Not available

31

Giant-Vac 3027064

Cover plate

$

$

Not available

32

Giant-Vac 3027062

Door for 30F

$

$

Currently unavailable

32

Giant-Vac 3027063

Door for 36F

$

$

Not available

33

Giant-Vac 3027043

Hinge for 30F

$

$

Currently unavailable

33

Giant-Vac 3027044

Hinge for 36F

$

$

Currently unavailable

34

Giant-Vac 3027019

Brush holder 30

$

$

Currently unavailable

34

Giant-Vac 3027020

Brush holder 36

$

$

Not available

35

Giant-Vac 3027010

30 brush

$

$

Not available

35

Giant-Vac 3027011

36 brush

$

$

Not available

36

3033045

22 lift pivot axle

$

$

Not available

37

3031044

Bolt, 1/2 x 1 hex

$

$

Not available

38

Giant-Vac 3031078

Washer, 1/2 lock

$

$

Currently unavailable

39

Giant-Vac 3031119

Washer, 1/2 flat
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

40

Giant-Vac 7091527

Bolt, 5/16 x 1 1/4 hex
(Superseded to 7091527YP)

Note: was 3031005

$4.49

$

In Stock, only 4 left!

0

41

Giant-Vac 3031145

Washer, 5/16 flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

42

Giant-Vac 7091511

Nut, 5/16 hex
(Superseded to 7091511SM)

Note: was 3031004

$3.49

$

In Stock, Qty 20+

0

43

Giant-Vac 7091315

Washer, 5/16 lock
(Superseded to 703116)

Note: was 3031003

$3.49

$

In Stock, Qty 20+

0

44

Giant-Vac 3031646

Bolt, 5/16-18 x 1-1/4 hex Gr 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

45

Giant-Vac 3031436

Nut, 5/16 lock

$

$

Currently unavailable

46

Giant-Vac 3021559

Taper-Lok hub – 1-1/8

$

$

Not available

47

Giant-Vac 3035002

Throttle control

$

$

Currently unavailable

48

Giant-Vac 3031031

Bolt, 5/16 x 3/4 hex

$

$

Not available

49

Giant-Vac 3031002

Bolt, 5/16 x 1 3/4 hex

$

$

Not available

49

Giant-Vac 7091098

Washer, 5/16 flat (engine base) (Not shown)
(Superseded to 703302)

Note: was 3031027

$4.49

$

In Stock, Qty 20+

0

50

Giant-Vac 3031032

Bolt, 5/16 x 1 hex
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

51

Giant-Vac 3031016

Bolt, 5/16 x 5/8 hex

$

$

Not available

52

Giant-Vac 3031056

Bolt, 5/16 x 1 1/2 round head

$

$

Not available

53

Giant-Vac 3031028

Nut, 5/16 acorn

$

$

Currently unavailable

54

Giant-Vac 3031026

Bolt, 3/8-16 wing

$

$

Not available

55

Giant-Vac 3031008

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

56

Giant-Vac 3031010

Kit, 10-24 x 1 1/4 bolt/washer/nut

$

$

Currently unavailable

57

Giant-Vac 3031283

Handle grip
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0

59

Giant-Vac 3031007

Throttle clip

$

$

Currently unavailable

60

Giant-Vac 3031592

Nut, 5/16 wing

$

$

Not available

61

Giant-Vac 3031098

Nut, 1/4 lock
(Superseded to 3031098YP)

$3.49

$

Usually ships in 2-12 days

0

62

Giant-Vac 3031795

1/4 x 2-1/8 impeller key
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

63

204312-0181-B1

* Engine, 9 HP B&S Intek

Note: was 205312-0301-B1 or 205412-0230-B1

$

$

Not available

$

$

Not available

Items Listed Below are NOT SHOWN

$

$

Not available

$

$

Not available

--

Giant-Vac 3000210

Dust control bag

$

$

Not available

--

Giant-Vac 3000510

Liner bag

$

$

Currently unavailable

--

3000710

Polypropylene bag

$

$

Not available

--

Giant-Vac 3020101

Blower intake baffle

$

$

Not available

--

3020106

Intake flange 4

$

$

Not available

--

Giant-Vac 3020107

Intake flange 5

$

$

Currently unavailable

--

Giant-Vac 3020108

Intake flange 6

$

$

Not available

--

3020115

Intake flange 8

$

$

Not available

--

Giant-Vac 3020145

Nozzle 4

$

$

Currently unavailable

--

Giant-Vac 3020146

Nozzle 5

$

$

Not available

--

Giant-Vac 3020147

Nozzle 6

$

$

Not available

--

Giant-Vac 3020149

Nozzle 8

$

$

Currently unavailable

--

3020151

DF1 hose holder 4

$

$

Not available

--

Giant-Vac 3020152

DF1 hose holder 5

$

$

Currently unavailable

--

3020153

DF1 hose holder 6

$

$

Not available

--

3024511

Exhaust flange 7

$

$

Not available

--

Giant-Vac 3024513

Blower chute deflector

$

$

Not available

--

3024533

Blower air chute

$

$

Not available

--

3031055

Kit, 1/4 x 5/8 bolt, wing nut & lock washer

$

$

Not available

--

Giant-Vac 3034002

Intake hose 4

$

$

Currently unavailable

--

Giant-Vac 3034003

Intake hose 5

$

$

Currently unavailable

--

Giant-Vac 3034004

Intake hose 6

$

$

Currently unavailable

--

Giant-Vac 3034006

Intake hose 8

$

$

Currently unavailable

--

Giant-Vac 3034011

Hose clamp 4

$

$

Currently unavailable

--

Giant-Vac 3034012

Hose clamp 4" - 5"

$

$

Not available

--

Giant-Vac 3034013

Hose clamp 6

$

$

Currently unavailable

--

Giant-Vac 3034015

Hose clamp 8

$

$

Currently unavailable

--

Giant-Vac 3034018

Exhaust hose 7 x 10’ metal

$

$

Currently unavailable

--

Giant-Vac 3034048

Squeeze ring 7 - 8"

Note: was 3034047

$

$

Currently unavailable
