9551-0 - Generac XL 2,200 Watt Portable Generator Control Panel Parts Diagram

XL 2,200 Watt Portable Generator

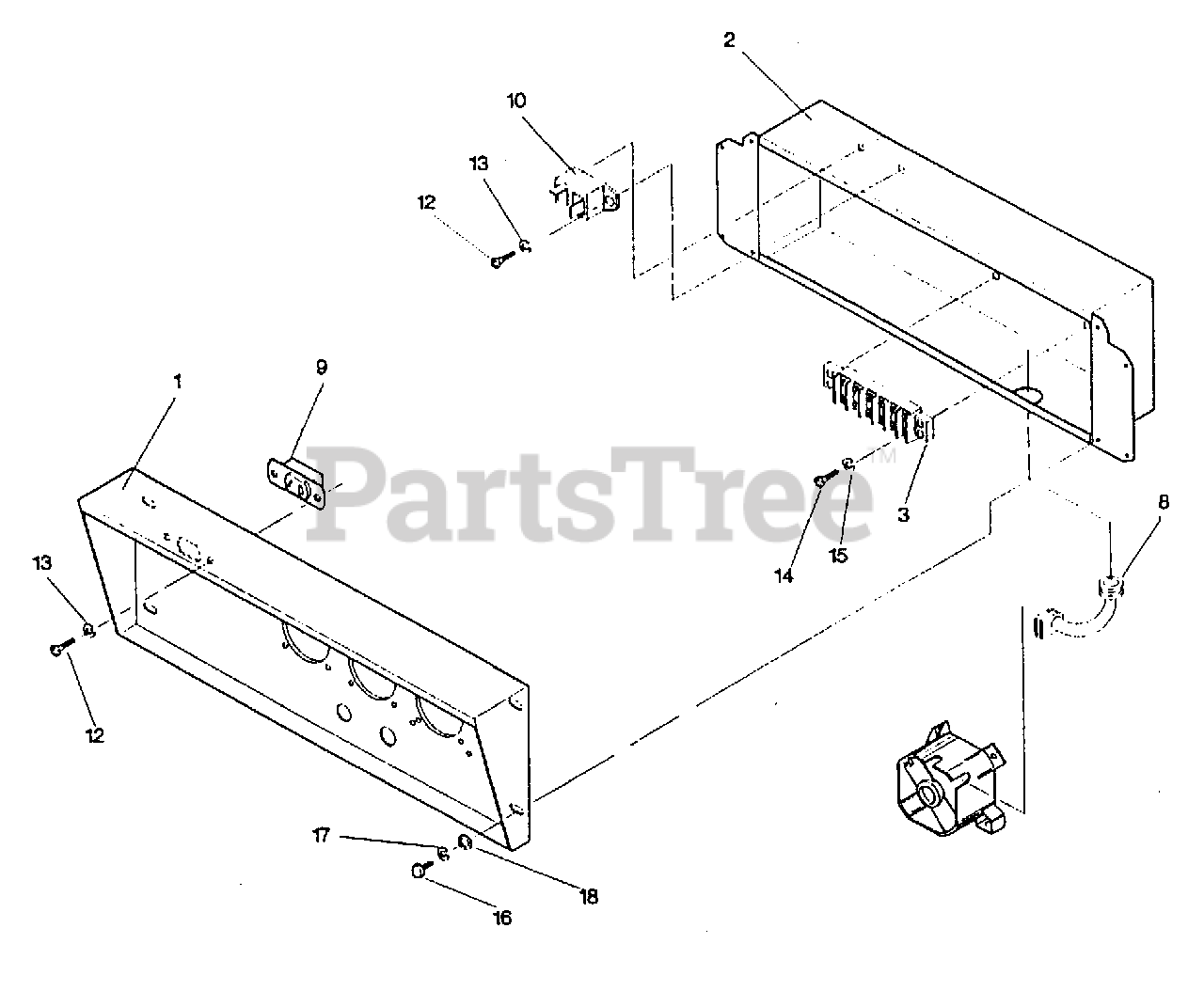

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 88653

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 88654

Control Panel Box

$

$

Currently unavailable

3

Briggs & Stratton 46357

Terminal Block
(Superseded to 7046357YP)

$14.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

12 Volts DC Outlet and Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

12 Volts, 10 amp Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43181

M3-0.5 x 10mm Pan Head Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 76055

M4-0.7 x 16mm Pan Head Screw

$

$

Not available

15

Briggs & Stratton 22264

M4 Lock Washer

$

$

Not available

16

Briggs & Stratton 52749

M5-0.8 x 12mm Pan Head Screw

$

$

Currently unavailable

17

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0
