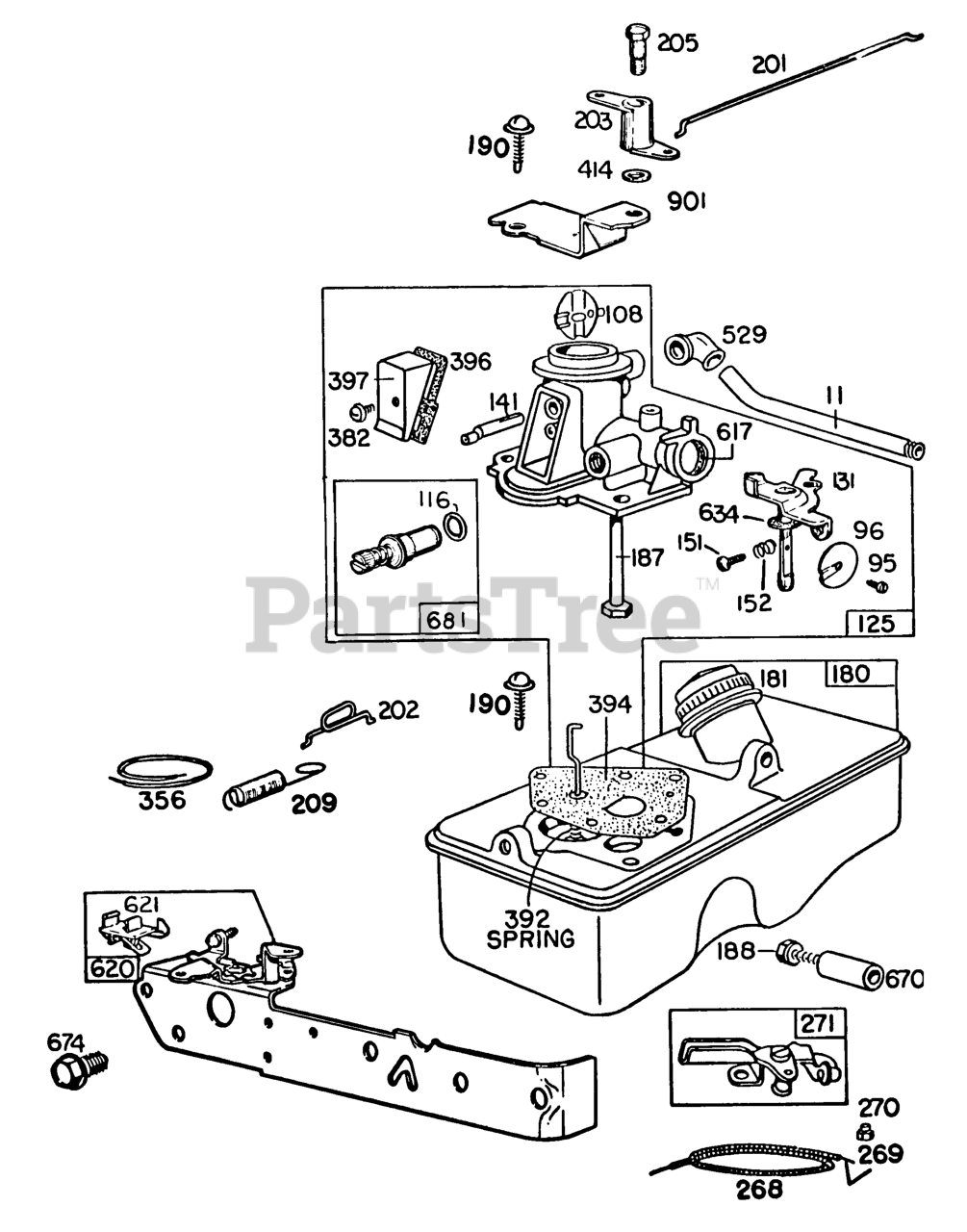

95508-0181-XX - Briggs & Stratton Vertical Engine Carburetor & Fuel Tank Assy Parts Diagram

Vertical Engine

Carburetor & Fuel Tank Assy Parts Diagram

  • Title

11

Briggs & Stratton 230802

Tube-Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 394596

Carburetor Assembly

$57.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 394593

Shaft And Lever-Throttle

$13.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

180

Briggs & Stratton 393113

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap, Tank (Metal) A (1-1/2" O.d. Top)
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 393001

Pipe/Sleeve Assy (Minlon Body)

$

$

Not available

188

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261539

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 261541

Link-Throttle

$1.49

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280272

Crank-Bell (Mechanical Governor)

$8.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 261644

Spring-Governor

$5.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if a shorter casing is needed, order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is needed, specify length in inches; if shorter wire is needed, order No. 26099 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93864

Screw-Hex

$3.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 261016

Spring-Fuel Pump Diaphragm

$6.49

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 299637

Diaphragm-Carburetor

$27.99

$

Usually ships in 2-12 days

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 13

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 394056

Bracket-Control (Remote Control)

$25.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

670

Briggs & Stratton 93912

Spacer-Fuel Tank
(Superseded to 691633)

$4.99

$

In Stock, only 2 left!

0

674

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

681

Briggs & Stratton 395508

Valve-High Speed (Nylon Body)

$8.99

$

Usually ships in 2-12 days

0

901

Briggs & Stratton 223083

Bracket-Bell Crank

$

$

Not available
