9547-0 - Generac 2,500 Watt Portable Generator Control Panel No. 87663 Parts Diagram

2,500 Watt Portable Generator

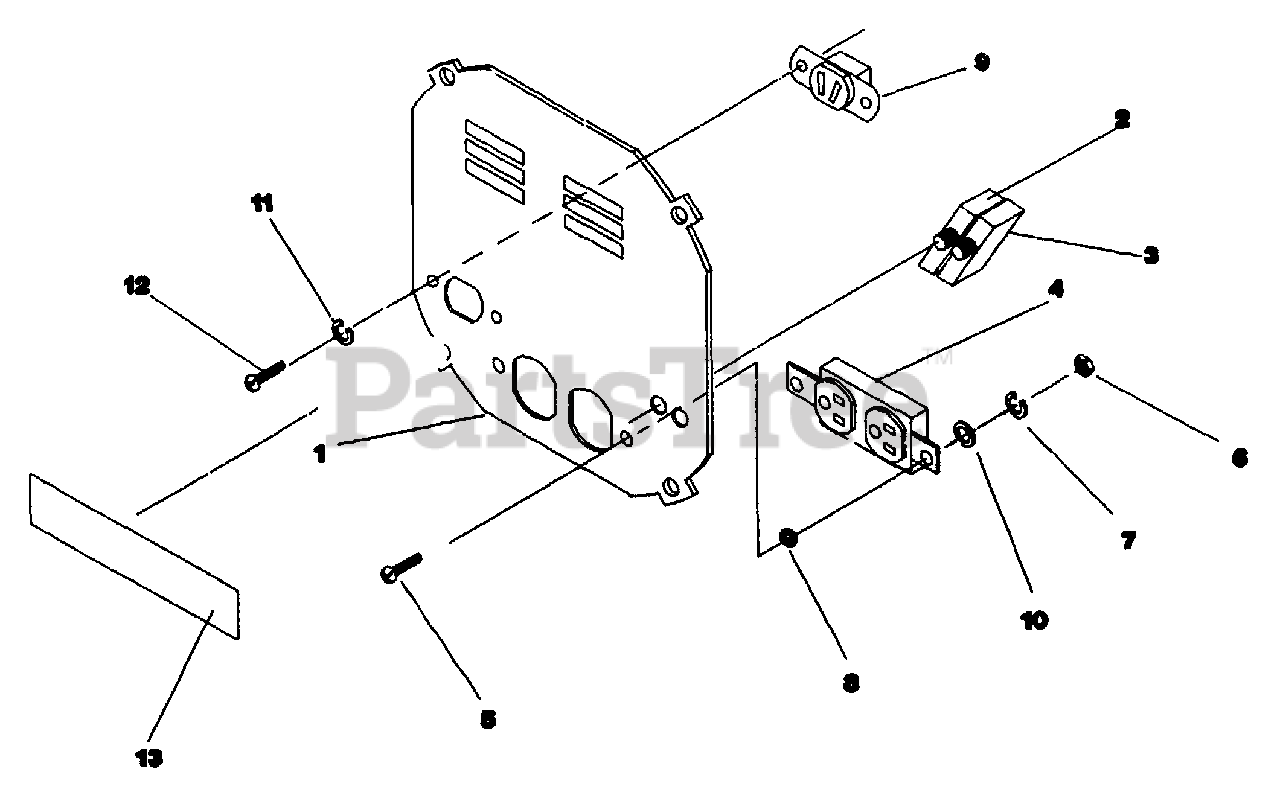

Control Panel No. 87663 Parts Diagram

  • Title

1

Briggs & Stratton 87608

Control Panel Sheet Metal

$

$

Currently unavailable

2

Briggs & Stratton 87124

10 amp Circuit Breaker

$

$

Currently unavailable

3

Briggs & Stratton 87124C

25 amp Circuit Breaker

$

$

Not available

4

Briggs & Stratton 68759

120 volts, 20 amp Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 75475

M4-0.7 x 10mm Phillips Pan Head Machine Screw

$

$

Not available

6

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

8

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

Battery Charge Outlet
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22159

No. 4 Lock Washer
(Superseded to 5022159)

$188.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 70728

M3-0.5 x 5mm Phillips Pan Head Machine Screw

$

$

Currently unavailable

13

Briggs & Stratton 86600

Control Panel Decal

$

$

Currently unavailable
