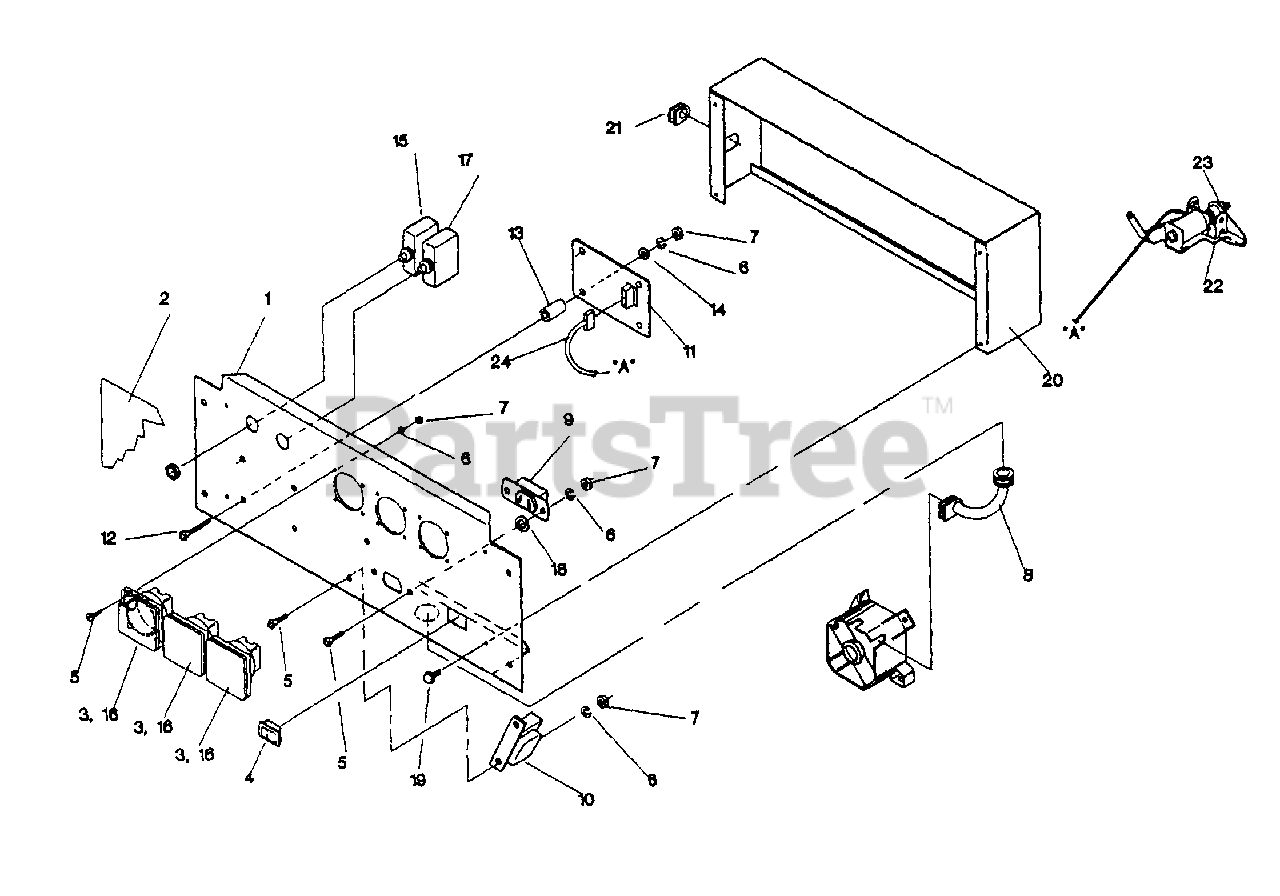

XL 3,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title
1

Briggs & Stratton 86512

Control Panel

$

$

Not available

2

Briggs & Stratton 86627

Control Panel Decal

$

$

Currently unavailable

3

Briggs & Stratton 82528

250 volts, 16 amps Outlet

$

$

Not available

4

Briggs & Stratton 82538

Idle Control Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 85797

M3-0.5 x 10mm Screw

$

$

Currently unavailable

6

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

12 VDC Outlet and Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

10

$

$

Currently unavailable

11

Briggs & Stratton 83970A

Engine/Idle Control Board Assembly
(Superseded to 83970AGS)

$299.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 85798

M3-0.5 x 25mm Screw

$

$

Currently unavailable

13

Briggs & Stratton 85800

3.2mm dia. x 6mm x 15mm Standoff

$

$

Currently unavailable

14

Briggs & Stratton 52777

M3 Flat Washer
(Superseded to 52777GS)

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75207D

18 Amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 79782

Hinged Berker Cover
(Superseded to 79782GS)

$14.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207B

10 amp Circuit Breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 86215

0.125" thick Nylon Washer

$

$

Currently unavailable

19

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

20

$

$

Currently unavailable

21

Briggs & Stratton 67022

Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 83781

Gov. Adjust Coil Mt. Bracket

$

$

Currently unavailable

23

Briggs & Stratton 66311

M8-1.25 Hex JAM Nut

$

$

Currently unavailable

24

Briggs & Stratton 84335

Wire Harness Assembly
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0
