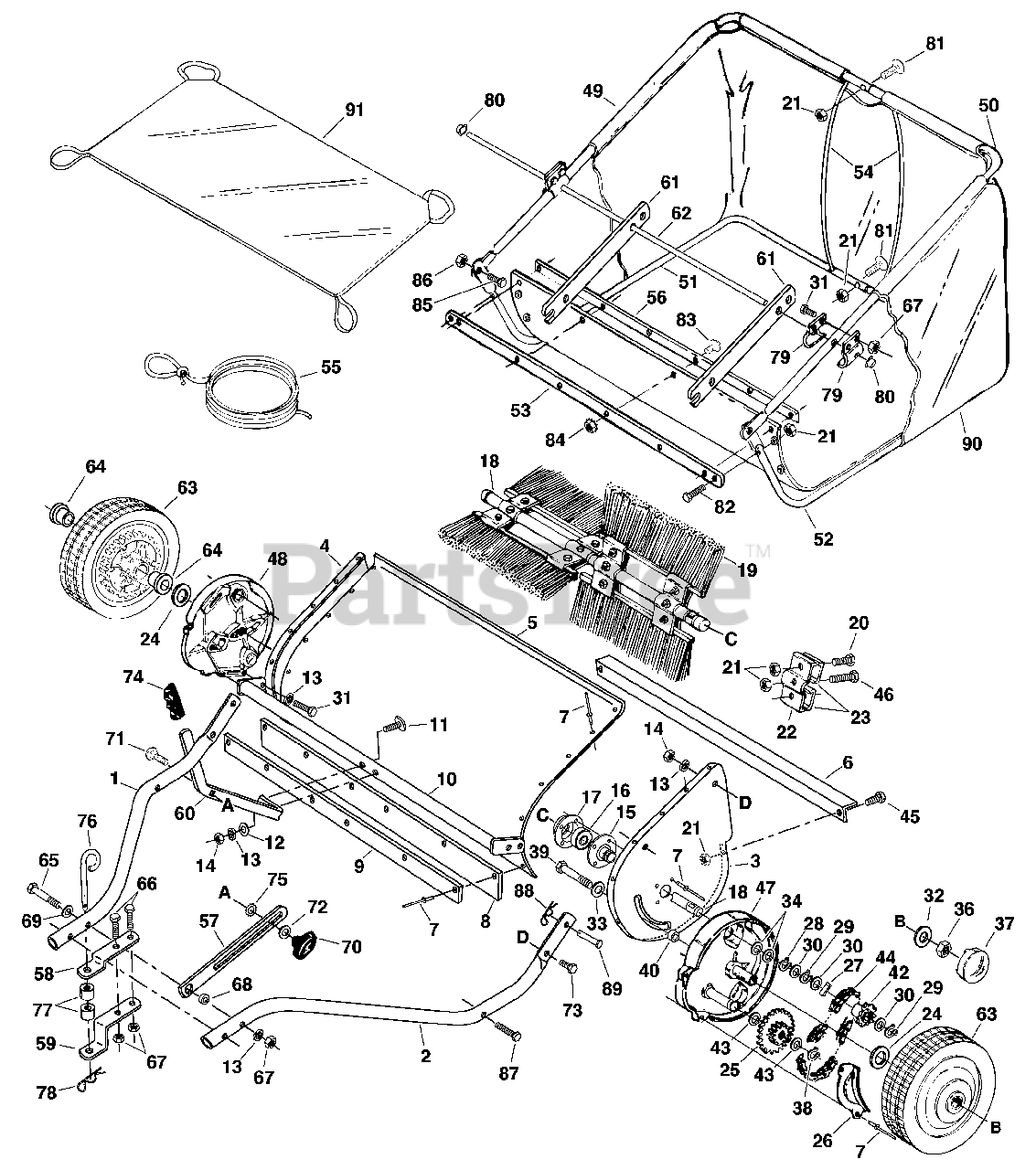

953535201 - Husqvarna 32" Tow-Behind Sweeper (2001-01) High Performance Lawnsweeper Parts Diagram

32" Tow-Behind Sweeper

High Performance Lawnsweeper Parts Diagram

  • Title

1

Husqvarna 531007410

Hitch Tube R.H. 38"

$

$

Not available

1

Husqvarna 531007409

Hitch Tube R.H. 32"

$

$

Not available

2

Husqvarna 531007412

Hitch Tube L.H. 38"

$

$

Not available

2

Husqvarna 531007411

Hitch Tube L.H. 32"

$

$

Not available

3

Husqvarna 531002808

End Plate L.H.

$

$

Not available

4

Husqvarna 531002809

End Plate R.H.

$

$

Not available

5

Husqvarna 531007414

Wrapper 38"

$

$

Not available

5

Husqvarna 531007413

Wrapper 32"

$

$

Not available

6

Husqvarna 531007415

Rear Support Brace

$

$

Not available

6

Husqvarna 531007416

Rear Support Brace

$

$

Not available

7

Husqvarna 722787003

Rivet
(Superseded to 722785402)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 506622201

Skirt 38"

$

$

Not available

8

Husqvarna 531007617

Skirt 32"

$

$

Not available

9

Husqvarna 531007609

Skirt & Bag Retainer 32"

$

$

Not available

9

Husqvarna 531007417

Skirt Retainer 38"

$

$

Currently unavailable

10

Husqvarna 531007419

Height Adjustment Ass'y. 38"

$

$

Not available

10

Husqvarna 531007418

Height Adjustment Ass'y. 32"

$

$

Not available

11

Husqvarna 531002815

Curved Hd. Bolt 5/16-18 x 1-5/8"

$

$

Not available

12

Husqvarna 531002816

Washer Bowed 1" x .32" x .06"

$

$

Not available

13

Husqvarna 735116405

Lock Washer 5/16"

$

$

Not available

14

Husqvarna 873220500

Hex Nut 5/16-18 Thread

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 506620201

Brush Bushing Ass'y.

$

$

Not available

16

Husqvarna 531002817

Ball Bearing
(Superseded to 601002178)

$

$

Not available

17

Husqvarna 506620401

Bearing Retainer

$

$

Not available

18

Husqvarna 506620501

Brush Shaft 38"
(Superseded to 601002177)

$

$

Not available

18

Husqvarna 531007615

Brush Shaft 32"

$

$

Not available

19

Husqvarna 531007420

Brush 32"

$

$

Not available

19

Husqvarna 531007421

Brush 38"

$

$

Not available

20

Husqvarna 725237051

Hex Bolt 1/4-20 x 3/4" (Gr. 5)
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 531007629

Hex Lock Nut 1/4-20 Thread

$

$

Not available

22

Husqvarna 506620601

Brush Retainer (Double)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 506620701

Brush Retainer (Single)

$

$

Not available

24

Husqvarna 531002741

Flat Washer 1-1/4" x .78 I.D.

$

$

Not available

25

Husqvarna 506621701

Gear Sprocket Sub Ass'y.
(Superseded to 601001940)

$

$

Not available

26

Husqvarna 506621801

Dust Cover

$

$

Not available

27

Husqvarna 506621901

Pawl

$

$

Not available

28

Husqvarna 506622301

Retaining Ring 3/4"

$

$

Not available

29

Husqvarna 506622401

Retaining Ring .594" I.D.

$

$

Not available

30

Husqvarna 506622501

Shim Washer 1-1/8" x .594" x .025"

$

$

Not available

31

Husqvarna 874780512

Hex Bolt 5/16-18 x 3/4"
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 734117341

Flat Washer 1-1/2" x .375" x .062"

$

$

Not available

33

Husqvarna 734117201

Washer 3/8" Standard
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 506624701

Flat Washer .78" x 1.25" x .06"
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 506622901

Hex Lock Nut 3/8-24 Thread
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 506623001

Hub Cap

$

$

Not available

38

Husqvarna 506623101

Retaining Ring 1/2"

$

$

Not available

39

Husqvarna 506623301

Hex Bolt 3/8-24 x 3-1/4" (Gr. 5)
(Superseded to 874610652)

$

$

Not available

40

Husqvarna 506626601

Spacer 13/32" x 5/8" x 3/16"

$

$

Not available

41

Husqvarna 531002799

Ratchet Sprocket R.H.

Note: (Not Shown)

$

$

Not available

42

Husqvarna 506623501

Ratchet Sprocket L.H.

$

$

Not available

43

Husqvarna 506623601

Washer 1/2" x 1" x .02"

$

$

Not available

44

Husqvarna 531002745

Roller Chain 3/8" x 1/2-40

$

$

Not available

45

Husqvarna 531002821

Hex Bolt, 1/4-20 x 1/2"

$

$

Not available

46

Husqvarna 531007626

Hex Bolt 1/4-20 x 1"

$

$

Not available

47

Husqvarna 531002744

Wheel Drive Housing Ass'y. L.H.

$

$

Not available

48

Husqvarna 531002743

Wheel Drive Housing Ass'y. R.H.

$

$

Not available

49

Husqvarna 531007603

Upper Hopper Tube L.H. 32"

$

$

Not available

49

Husqvarna 506623801

Upper Hopper Tube R.H. 38"

$

$

Not available

50

Husqvarna 506623901

Upper Hopper Tube L.H. 38"

$

$

Not available

50

Husqvarna 531007602

Upper Hopper Tube R.H. 32"

$

$

Not available

51

Husqvarna 506624201

Lower Hopper Tube R.H. 38"

$

$

Not available

51

Husqvarna 531007604

Lower Hopper Tube R.H. 38"

$

$

Not available

52

Husqvarna 531007605

Lower Hopper Tube L.H. 32"

$

$

Not available

52

Husqvarna 506624301

Lower Hopper Tube L.H. 38"

$

$

Not available

53

Husqvarna 531007614

Bag Frame Strap 32"

$

$

Not available

53

Husqvarna 506621501

Bag Frame Strap 38"

$

$

Not available

54

Husqvarna 506624401

Hopper Support Rod

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 531002734

Hopper Rope

$

$

Not available

56

Husqvarna 506620901

Skirt & Bag Retainer 38"

$

$

Not available

56

Husqvarna 531007609

Skirt & Bag Retainer 32"

$

$

Not available

57

Husqvarna 531002828

Height Adjustment Strap

$

$

Not available

58

Husqvarna 531002772

Hitch Bracket

$

$

Not available

59

Husqvarna 506621201

Hitch Bracket

$

$

Not available

60

Husqvarna 531002831

Height Adjustment Handle

$

$

Not available

61

Husqvarna 531007423

Bag Arm

$

$

Not available

62

Husqvarna 531007424

Hopper Bag Pivot Rod 32"

$

$

Not available

62

Husqvarna 531007425

Hopper Bag Pivot Rod 38"

$

$

Not available

63

Husqvarna 531002746

Wheel Ass'y. Complete
(Superseded to 601001889)

$

$

Not available

64

Husqvarna 506625401

Wheel Bearing

$

$

Not available

65

Husqvarna 531002834

Hex Bolt 5/16-18 x 3"

$

$

Not available

66

Husqvarna 531002835

Hex Bolt 5/16-18 x 2-1/4"

$

$

Not available

67

Husqvarna 531007616

Hex Lock Nut 5/16-18 Thread

$

$

Not available

68

Husqvarna 531002836

Spacer Bushing

$

$

Not available

69

Husqvarna 734115201

Flat Washer 1/4" Standard

$4.99

$

In Stock, only 1 left!

0

70

Husqvarna 506626001

Wing Knob 5/16-18 Thread

$

$

Not available

71

Husqvarna 872140506

Carriage Bolt 5/16-18 x 3/4"
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 734116401

Washer 5/16" Standard

$6.99

$

In Stock, only 4 left!

0

73

Husqvarna 531007426

Hex Bolt 5/16-18 x 1"

$

$

Not available

74

Husqvarna 506626401

Rubber Grip

$

$

Not available

75

Husqvarna 531002839

Tooth Lock Washer 5/16"

$1.99

$

Usually ships in 3-10 days

0

76

Husqvarna 506625601

Hitch Pin

$

$

Not available

77

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

78

Husqvarna 721680251

Hairpin Cotter 1/8" #4

$7.49

$

Usually ships in 3-10 days

0

79

Husqvarna 506626701

Hopper Mount Clamp

$

$

Not available

80

Husqvarna 531002840

Palnut 3/8"

$1.99

$

Usually ships in 3-10 days

0

81

Husqvarna 725237251

Curved Head Bolt 1/4-20 x 1"

$

$

Not available

82

Husqvarna 725237471

Hex Bolt 1/4-20 x 1-1/4"

$5.99

$

In Stock, Qty 20+

0

83

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

84

Husqvarna 732211401

Hex Lock Nut #10-32 Thread

$6.49

$

In Stock, Qty 7

0

85

Husqvarna 506625301

Hex Bolt 3/8-16 x 3/4" (Gr. 5)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

86

Husqvarna 873680600

Hex Lock Nut 3/8-16 Thread

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 531002838

Hex Bolt 5/16-18 x 1-3/4"
(Superseded to 522751501)

$

$

Not available

88

Husqvarna 531004637

Hairpin Cotter 3/32" #3

$

$

Not available

90

Husqvarna 506624001

Hopper Bag 38"
(Superseded to 601000967)

$

$

Not available

90

Husqvarna 531007606

Hopper Bag 32"
(Superseded to 531002855)

$

$

Not available

91

Husqvarna 531007607

Wind Screen 32"
(Superseded to 531002856)

$

$

Not available

91

Husqvarna 506624101

Wind Screen 38"

$

$

Not available
