953532201 - Husqvarna Automower Robotic Lawn Mower (2003-04) Keypad/Control Board Parts Diagram

Automower Robotic Lawn Mower

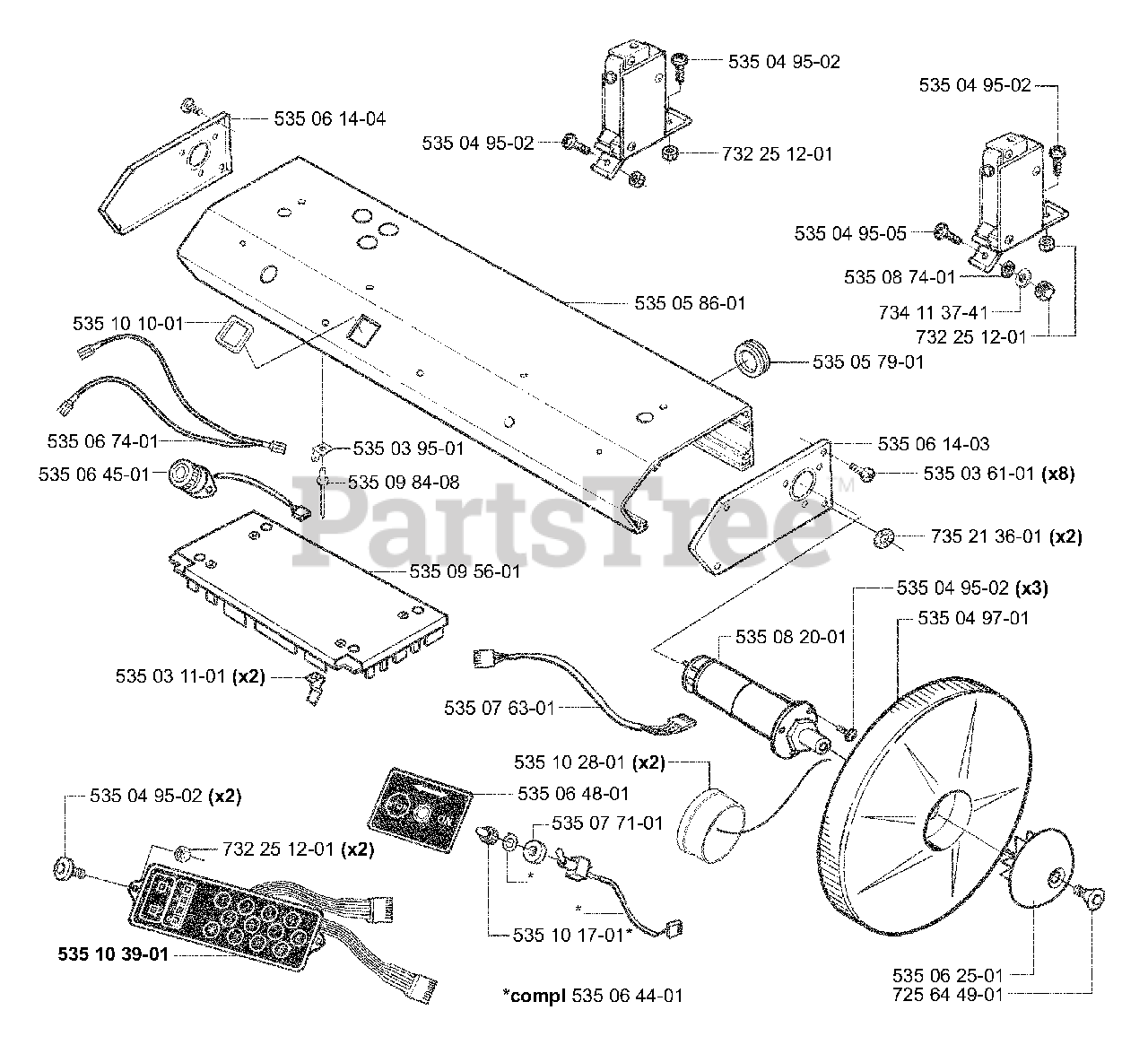

Keypad/Control Board Parts Diagram

  • Title
535031101

Husqvarna 535031101

Terminal Ground

$

$

Not available

535036101

$

$

Not available

535039501

Husqvarna 535039501

Terminal Ground

$

$

Not available

535049502

$

$

Not available

535049505

Husqvarna 535049505

Screw, Tower-Rectifier

$

$

Not available

535049701

Husqvarna 535049701

Wheel Rear

$

$

Not available

$

$

Currently unavailable

535058601

$

$

Not available

535061403

Husqvarna 535061403

Rh End Cap Wheel

$

$

Not available

535061404

Husqvarna 535061404

Lh End Cap Wheel

$

$

Not available

535062501

Husqvarna 535062501

Cover Rear Wheel

$

$

Not available

535064401

$

$

Not available

535064501

Husqvarna 535064501

Buzzer External

$

$

Not available

535064801

Husqvarna 535064801

Plate On/Off

$

$

Not available

535067401

Husqvarna 535067401

Harness Ground

$

$

Not available

535076301

$

$

Not available

535077101

Husqvarna 535077101

Spacer Switch

$

$

Not available

535082001

Husqvarna 535082001

Wheel Motor Lh/Rh

$

$

Not available

535087401

Husqvarna 535087401

Fiber Washer

$

$

Not available

535095601

Husqvarna 535095601

Print Circuit Card

$

$

Not available

535098408

$

$

Not available

535101001

$

$

Not available

535101701

Husqvarna 535101701

Rubber Hood

$13.99

$

Usually ships in 3-10 days

0

535102801

$

$

Not available

535103901

Husqvarna 535103901

Keyboard
(Superseded to 544338001)

$

$

Not available

725644901

Husqvarna 725644901

Bolt Rear Wheel

$2.99

$

Usually ships in 3-10 days

0

732251201

Husqvarna 732251201

Nut M4
(Superseded to 588222101)

$3.99

$

Usually ships in 3-10 days

0

734113741

$4.99

$

Usually ships in 3-10 days

0

735213601

Husqvarna 735213601

Lock Washer

$2.99

$

Usually ships in 3-10 days

0
