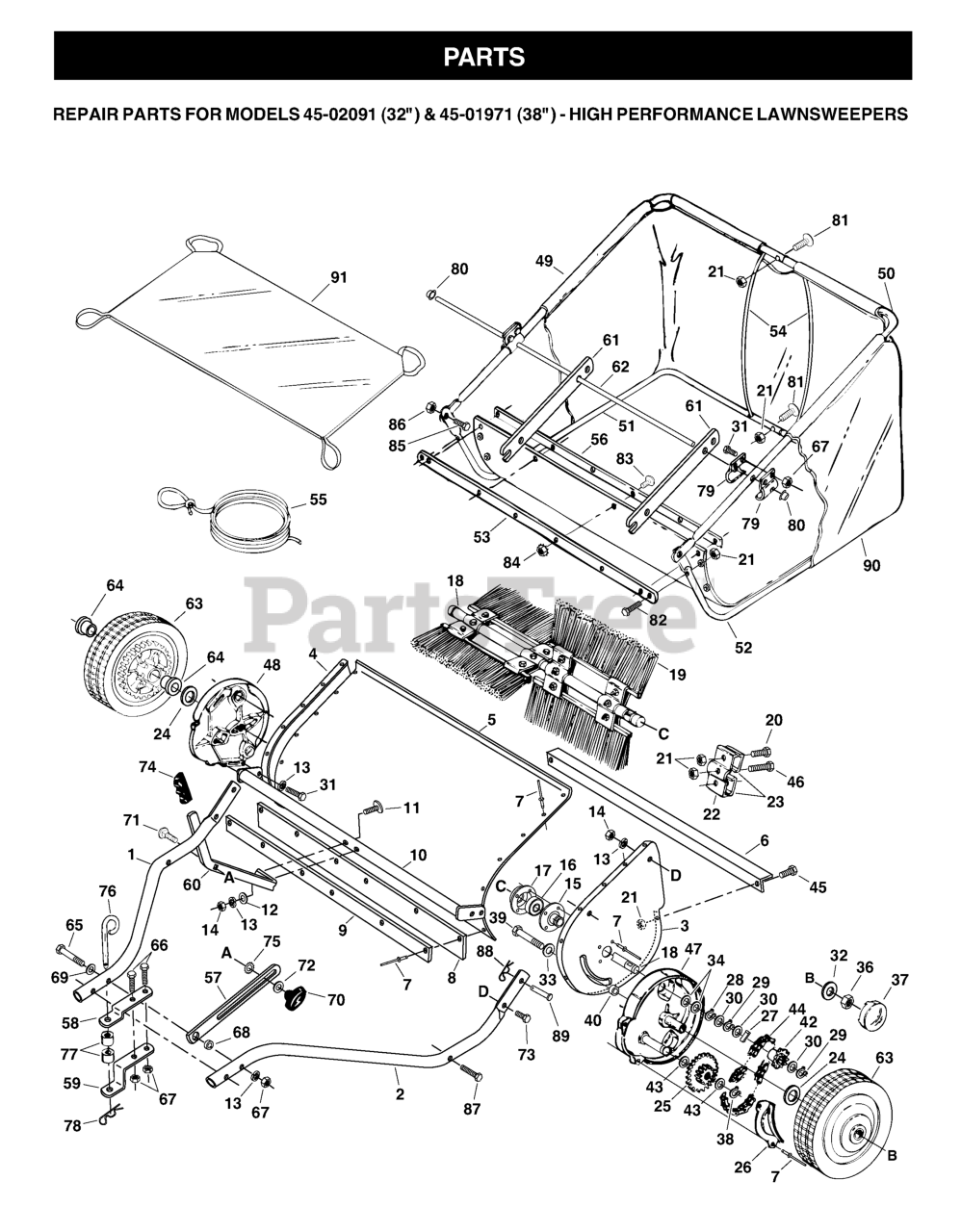

953525201 - Husqvarna Tow-Behind Sweeper (2001-01) CHASSIS & ENCLOSURES Parts Diagram

Tow-Behind Sweeper

CHASSIS & ENCLOSURES Parts Diagram

  • Title

57

Husqvarna 531002828

ARM

$

$

Not available

59

Husqvarna 506621201

HITCH BRACKET

$

$

Not available

76

Husqvarna 506625601

Pin, Hitch

$

$

Not available

45

Husqvarna 531002821

Bolt, Hex 1/4-20 x 1/2" Lg.

$

$

Not available

84

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

47

Husqvarna 531002744

SHIELD

$

$

Not available

77

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

7

Husqvarna 722787003

RIVET
(Superseded to 722785402)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 506620701

BRUSH RETAINER SINGLE

$

$

Not available

49

Husqvarna 531007603

PIPE

$

$

Not available

72

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

24

Husqvarna 531002741

Washer, Flat 1-1/8" x .78" x .025"

$

$

Not available

58

Husqvarna 531002772

Bracket, Hitch

$

$

Not available

85

Husqvarna 506625301

HEX BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

82

Husqvarna 725237471

SCREW M6S 6X30

$5.99

$

In Stock, Qty 20+

0

41

Husqvarna 531002799

GEAR

$

$

Not available

13

Husqvarna 735116405

WASHER

$

$

Not available

80

Husqvarna 531002840

NUT

$1.99

$

Usually ships in 3-10 days

0

81

Husqvarna 725237251

Curved Head Bolt 1/4-20 x 1"

$

$

Not available

14

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 734117341

Washer, Flat 1-1/2" x .375" x .062"

$

$

Not available

83

Husqvarna 725232951

Slotted Truss Head Screw #10-32 x 5/8"

$

$

Not available

78

Husqvarna 721680251

R-CLIP

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 506623501

RATCHET SPROCKET

$

$

Not available

67

Husqvarna 531007616

NUT

$

$

Not available

50

Husqvarna 531007602

PIPE

$

$

Not available

6

Husqvarna 531007416

SUPPORT

$

$

Not available

6

Husqvarna 531007415

SUPPORT

$

$

Not available

65

Husqvarna 531002834

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Not available

17

Husqvarna 506620401

BEARING RETAINER

$

$

Not available

4

Husqvarna 531002809

PLATE, R.H.

$

$

Not available

37

Husqvarna 506623001

HUB CAP

$

$

Not available

87

Husqvarna 531002838

SCREW
(Superseded to 522751501)

$

$

Not available

38

Husqvarna 506623101

RETAINING RING 1/2Ä

$

$

Not available

56,9

Husqvarna 531007609

HOLDER

$

$

Not available

55

Husqvarna 531002734

ROPE

$

$

Not available

60

Husqvarna 531002831

Handle, Height Adjustment

$

$

Not available

3

Husqvarna 531002808

PLATE, L.H.

$

$

Not available

79

Husqvarna 506626701

HOPPER MOUNTING CLAMPS

$

$

Not available

25

Husqvarna 506621701

GEAR SPRUCKET SUB ASSY
(Superseded to 601001940)

$

$

Not available

19

Husqvarna 531007420

BRUSH

$

$

Not available

69

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, only 1 left!

0

90

Husqvarna 531007606

REPL BY 531 00 28-55
(Superseded to 531002855)

$

$

Not available

73

Husqvarna 531007426

BOLT

$

$

Not available

29

Husqvarna 506622401

Retaining Ring .594" I.D.

$

$

Not available

54

Husqvarna 506624401

HOPPER SUPPORT ROD

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 506623301

HEX BOLT
(Superseded to 874610652)

$

$

Not available

62

Husqvarna 531007424

ROD

$

$

Not available

64

Husqvarna 506625401

WHEEL BEARING

$

$

Not available

61

Husqvarna 531007423

ARM

$

$

Not available

8

Husqvarna 531007617

LIST

$

$

Not available

30

Husqvarna 506622501

SHIM WASHER

$

$

Not available

70

Husqvarna 506626001

Knob, Wing 5/16-18 Thread

$

$

Not available

28

Husqvarna 506622301

Ring, Retaining 3/4"

$

$

Not available

86

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 506622901

HEX LOCK NUT 3/8-24THD
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 531002836

SPACER

$

$

Not available

1

Husqvarna 531007409

ROD

$

$

Not available

11

Husqvarna 531002815

Bolt, Cv. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Not available

48

Husqvarna 531002743

Housing, Wheel Drive Ass'y. R.H.

$

$

Not available

51

Husqvarna 531007604

PIPE

$

$

Not available

16

Husqvarna 531002817

BALL BEARING
(Superseded to 601002178)

$

$

Not available

2

Husqvarna 531007411

ROD

$

$

Not available

15

Husqvarna 506620201

BRUSH BUSHING ASSY

$

$

Not available

43

Husqvarna 506623601

Washer, 1/2" x 1" x .02"

$

$

Not available

44

Husqvarna 531002745

ROLLERCHAIN 3/8X1/2"

$

$

Not available

33

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 506621901

PAWL

$

$

Not available

66

Husqvarna 531002835

SCREW

$

$

Not available

46

Husqvarna 531007626

BOLT

$

$

Not available

9

Husqvarna 531007609

HOLDER

$

$

Not available

18

Husqvarna 531007615

SHAFT

$

$

Not available

5

Husqvarna 531007413

PLATE

$

$

Not available

22

Husqvarna 506620601

BRUSHRETAINER DOUBLE

$9.49

$

Usually ships in 3-10 days

0

53

Husqvarna 531007614

STRAP

$

$

Not available

10

Husqvarna 531007418

CONTROL

$

$

Not available

34

Husqvarna 506624701

FL-WASHER
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 531007605

PIPE

$

$

Not available

31

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 531007629

NUT

$

$

Not available

74

Husqvarna 506626401

Rubber Grip

$

$

Not available

91

Husqvarna 531007607

REPL BY 531 00 28-56
(Superseded to 531002856)

$

$

Not available

26

Husqvarna 506621801

Dust Cover

$

$

Not available

75

Husqvarna 531002839

WASHER, TOOTH LOCK

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 506626601

Spacer 13/32" x 5/8" x 3/16"

$

$

Not available

12

Husqvarna 531002816

WASHER

$

$

Not available

88

Husqvarna 531004637

PIN

$

$

Not available

63

Husqvarna 531002746

WHEEL
(Superseded to 601001889)

$

$

Not available

71

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
