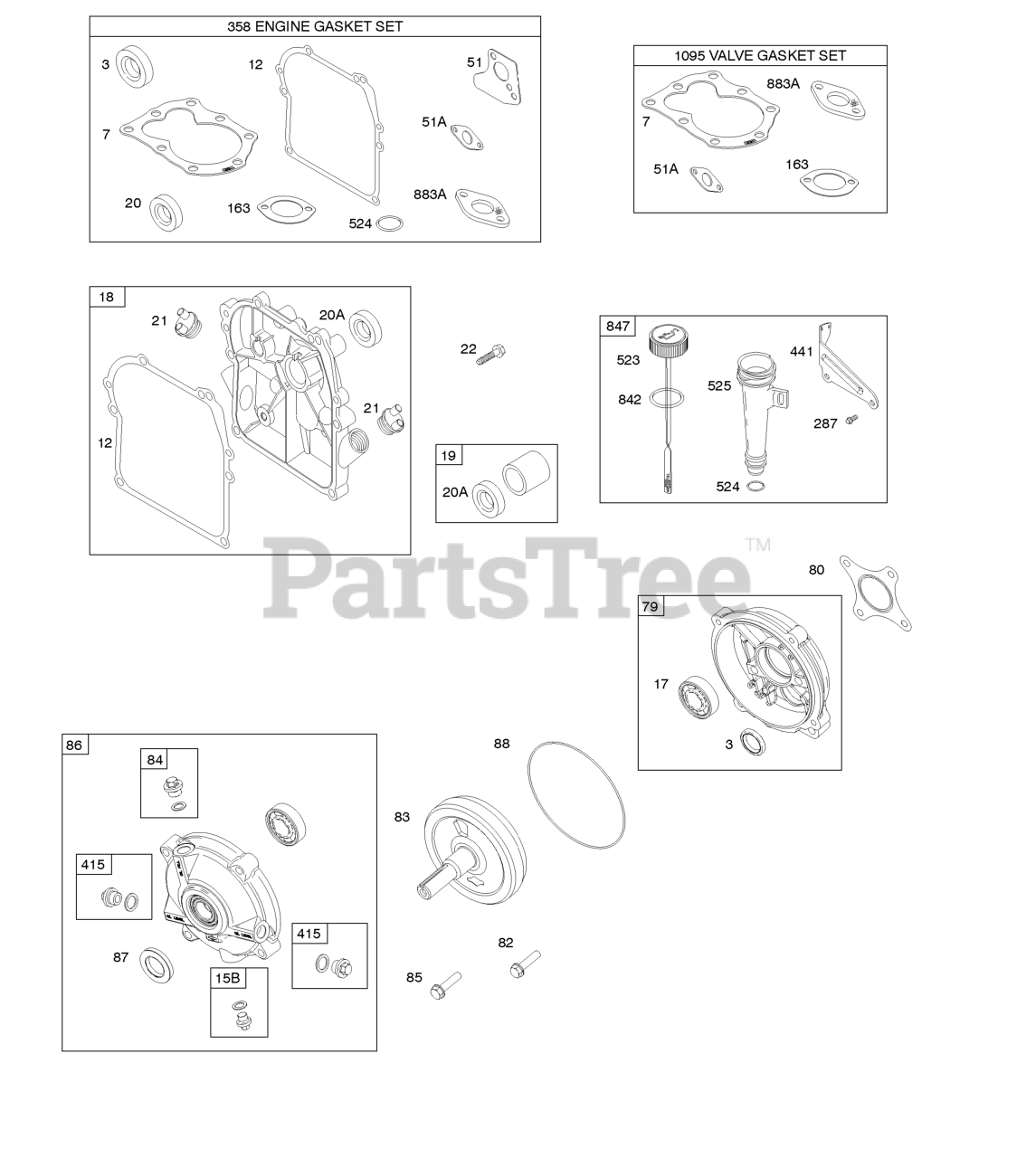

95312-0022-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump, Gear Reduction, Lubrication, Gasket Set - Engine, Gasket Set - Valve Parts Diagram

Horizontal Engine

Crankcase Cover/Sump, Gear Reduction, Lubrication, Gasket Set - Engine, Gasket Set - Valve Parts Diagram

  • Title

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 698717

Gasket-Cylinder Head

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

In Stock, Qty 8

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

17

Briggs & Stratton 99158

Bearing-Ball

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496679

Cover-Crankcase
(Superseded to 699096)

$172.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (PTO Side)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 692020

Seal-Oil

Note: (PTO Side)

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 693732

Screw

Note: (Crankcase Cover/Sump) (Used In Positions 1 and 6)

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 273113S

Gasket-Intake

$4.49

$

In Stock, Qty 19

0

51A

Briggs & Stratton 692283

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

163

Briggs & Stratton 272948S

Gasket-Air Cleaner

$6.49

$

In Stock, Qty 7

0

287

Briggs & Stratton 695733

Screw

Note: (Dipstick Tube)

$3.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 496865

Gasket Set-Engine
(Superseded to 795971)

$27.99

$

Usually ships in 2-12 days

0

441

Briggs & Stratton 690484

Bracket-Oil Fill

$8.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 691876

Seal-O Ring

$5.49

$

In Stock, Qty 11

0

525

Briggs & Stratton 694426

Tube-Dipstick

$10.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 694532

Dipstick/Tube Assembly

$28.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 691880

Gasket-Exhaust

Note: (Between Adapter And Cylinder)

$5.49

$

In Stock, Qty 5

0

1095

Briggs & Stratton 498525

Gasket Set-Valve

$17.99

$

In Stock, only 1 left!

0
