9528 (31AH7T74101) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2004) Gear Assembly Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

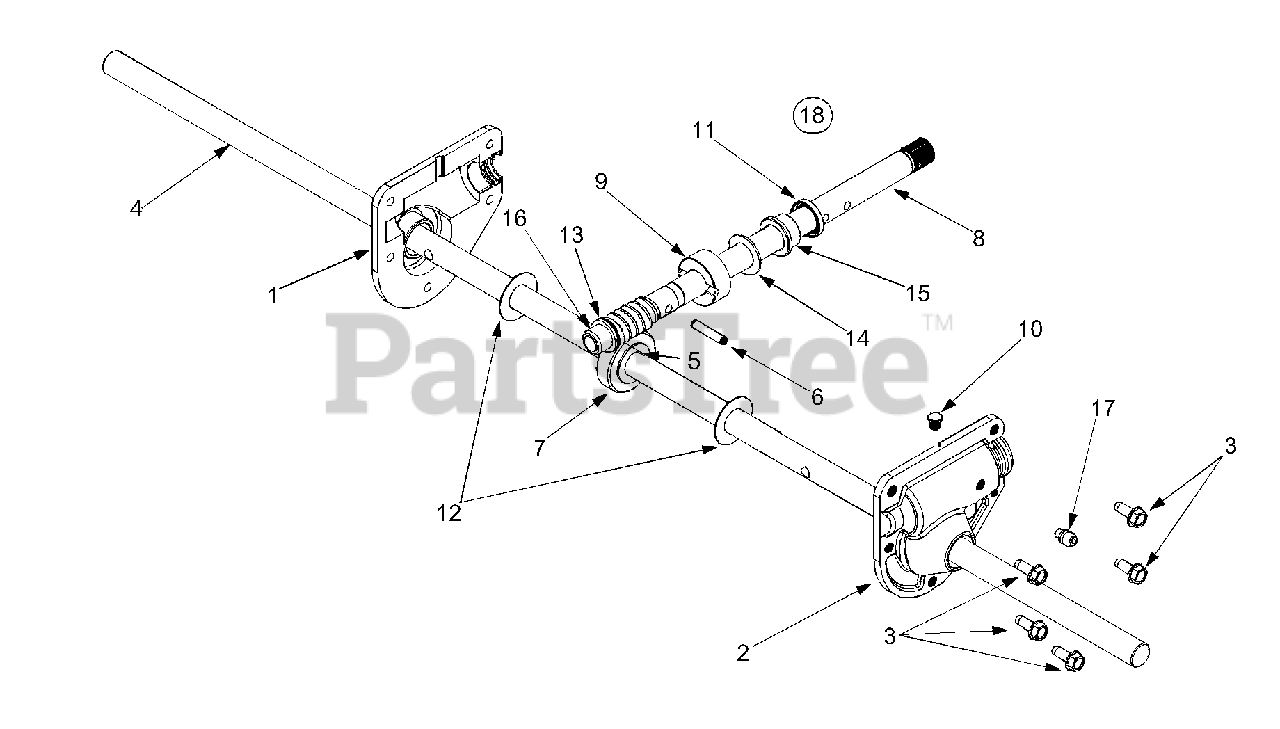

Gear Assembly Parts Diagram

  • Title

1

Troy-Bilt 618-0123

RH Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 18

0

2

Troy-Bilt 618-0418

LH Housing
(Superseded to 918-0418A)

$62.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0642

Self Tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 711-0910A

Spiral Axle 28"

$130.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 715-0143

Spring Spiral Pin,.25 x 1.25

$4.99

$

In Stock, Qty 15

0

7

Troy-Bilt 717-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

9

Troy-Bilt 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 12

0

10

Troy-Bilt 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0351

Flat Washer,.76 x 1.5 x.030

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0369

Flat Washer,.508 x 1.0 x.020

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0445

Flat Washer,.76 x 1.5 x.060

$4.49

$

In Stock, Qty 11

0

15

Troy-Bilt 741-0662

Flange Bearing,.75 x 1.0 x.59

$10.99

$

In Stock, Qty 17

0

16

Troy-Bilt 741-0663

Flange Bearing,.503 ID x.75 OD

$9.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 618-0416A

Gear Assembly Complete, 28"
(Superseded to 918-0416B)

$474.99

$

Usually ships in 3-6 days

0
