9528 (31AH7T74063) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2003) Handle & Controls Assembly Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

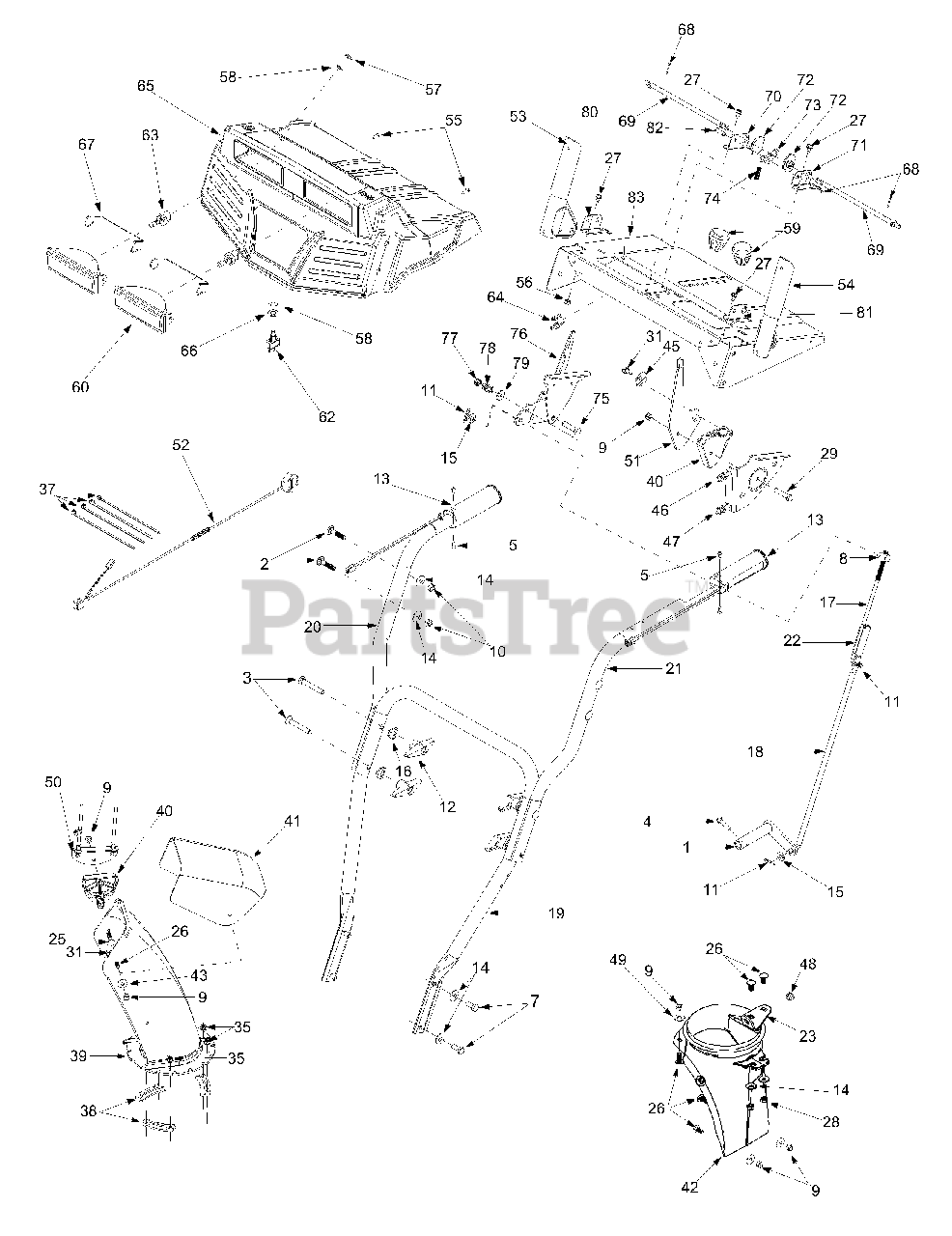

Handle & Controls Assembly Parts Diagram

  • Title

1

Troy-Bilt 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Troy-Bilt 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0449

Carriage Bolt 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0788

TT Screw 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0837

C-Sunk Screw #10-16x 0.625"

$4.49

$

In Stock, Qty 5

0

7

Troy-Bilt 710-1880

Hex Screw 5/16-18 x .75"

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

11

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

17

Troy-Bilt 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 747-0621

Shift Rod: Lower

$

$

Not available

19

Troy-Bilt 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

Troy-Bilt 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 749-0952A

Upper Handle: L Style RH

Variations

Troy-Bilt 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

Troy-Bilt 749-0953A

Upper Handle: L Style LH

Variations

Troy-Bilt 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

Troy-Bilt 750-0963

Connector: Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

25

Troy-Bilt 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 11

0

26

Troy-Bilt 710-0451

Carriage Bolt: 5.16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0805

Hex Screw: 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-0896

Hex Screw AB:1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-1300B

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

40

Troy-Bilt 731-1313C

Cable Guide: Chute Tilt

$11.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

42

UNKNOWN

$

$

Not available

43

Troy-Bilt 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

46

Troy-Bilt 746-0896

Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 746-0901

Control Cable
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 784-5604

Handle: Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Troy-Bilt 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

52

MTD 629-0937

Harness Assembly: Upper

$

$

Not available

53

Troy-Bilt 684-0036A

Handle Assembly RH

$44.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 684-0037B

Handle Assembly LH

$38.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 710-1003

Special Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 712-0271

Hex Sems Nut: 1/4-20

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 712-0693

Hex Nut

$

$

Not available

58

Troy-Bilt 716-0398

Lock Ring: Toggle Switch

$

$

Not available

59

Troy-Bilt 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

60

Troy-Bilt 725-1672

Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 725-1756

Toggle Switch: Single Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 725-1658

Halogen Lamp: 27W, 12V
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

64

MTD 726-0152

Mounting Clamp

$

$

Not available

65

Troy-Bilt 731-04068

Handle Panel
(Superseded to 931-04068)

$

$

Not available

66

Troy-Bilt 736-0226

Flat Washer
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 714-0507

Cotter Pin: 3/32 x .75

$4.49

$

In Stock, Qty 12

0

69

Troy-Bilt 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

Troy-Bilt 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

Troy-Bilt 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 732-0145

Compression Spring: .36 x 1.0

$4.49

$

Usually ships in 3-6 days

0

75

Troy-Bilt 710-0459A

Hex Cap Screw: 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

76

Troy-Bilt 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Troy-Bilt 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

77

Troy-Bilt 712-0116

Jam Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

78

Troy-Bilt 732-0193

Comp. Spring: .39 x .6 x .88

$4.99

$

In Stock, Qty 6

0

79

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

80

Troy-Bilt 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

Troy-Bilt 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 784-5681

LH Handle Support Bracket

Variations

Troy-Bilt 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 684-0102

Handle Panel
(Superseded to 684-0102A)

Variations

Troy-Bilt 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0
