9528 (31AE6KQ4766) - Troy-Bilt Storm 28" Snow Thrower (2005-2) Handle & Controls Parts Diagram

Storm 28" Snow Thrower

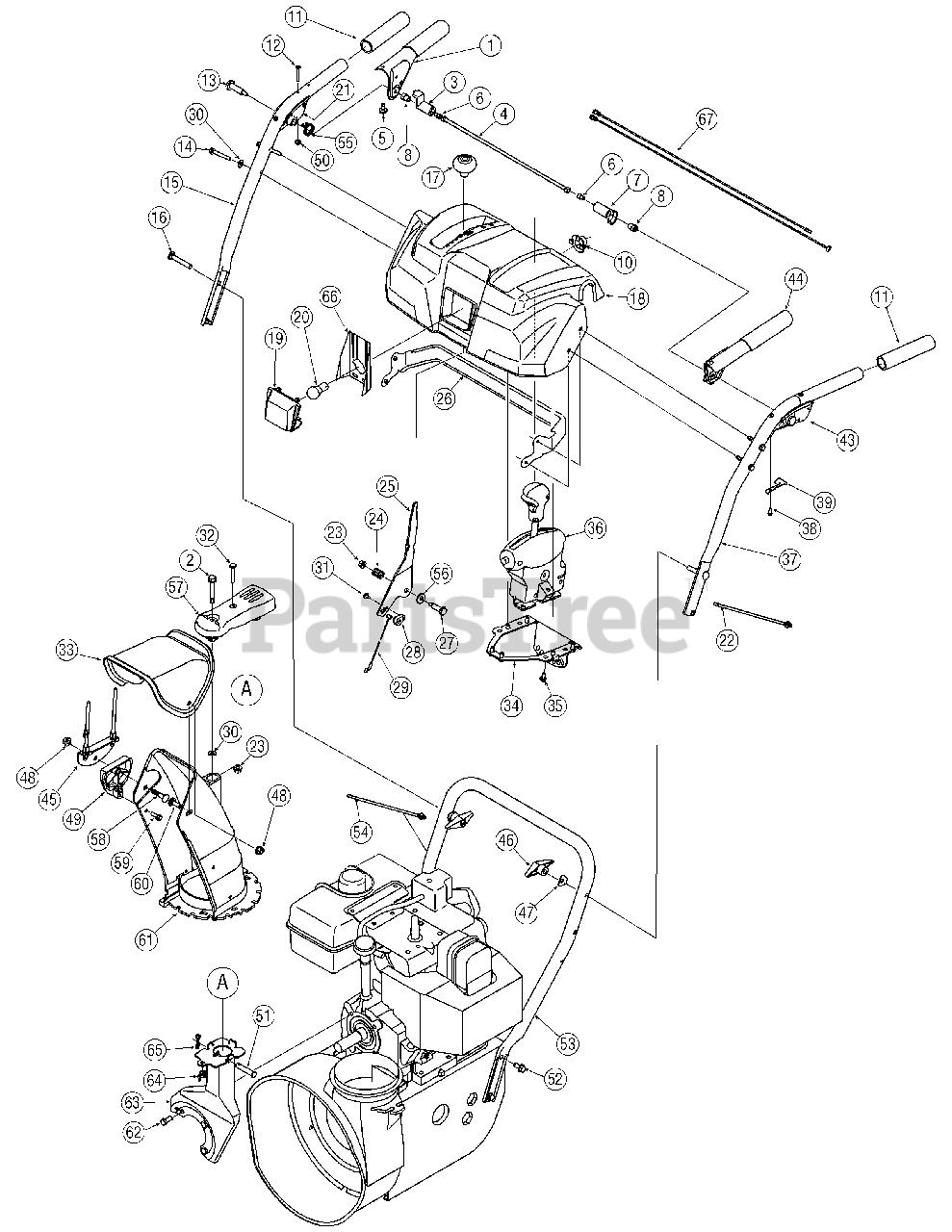

Handle & Controls Parts Diagram

  • Title

1

Troy-Bilt 684-04109A

Handle Engagement Assembly RH
(Superseded to 684-04109B)

$21.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 738-04194

Flange Shoulder Screw

$6.49

$

In Stock, only 2 left!

0

3

Troy-Bilt 731-04894A

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 9

0

4

Troy-Bilt 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-04214

Wire Harness (Not Shown)

$

$

Not available

10

Troy-Bilt 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 720-0274

Handle Grip

$11.99

$

In Stock, Qty 8

0

12

Troy-Bilt 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

Troy-Bilt 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

15

Troy-Bilt 749-04141

Upper Handle RH

Variations

Troy-Bilt 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 720-04046

Shift Knob

$

$

Not available

18

Troy-Bilt 731-05332

Handle Panel (P/Q-Style)
(Superseded to 931-04181A)

$59.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 731-05319

Lens

$13.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 10

0

21

Troy-Bilt 731-04784A

Handle Clutch Lock - RH
(Superseded to 631-04134B)

$15.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

Troy-Bilt 790-00203

Shift Lever
(Superseded to 790-00203-0637)

Variations

Troy-Bilt 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

26

Troy-Bilt 790-00140

Panel Bracket
(Superseded to 790-00140-0637)

Variations

Troy-Bilt 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

27

Troy-Bilt 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 746-0605

Cable Barrel Holder
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 746-04227

Speed Selector Cable
(Superseded to 746-04227A)

$22.99

$

In Stock, Qty 15

0

30

Troy-Bilt 736-0463

Flat Washer, .25 x .630 x.0515

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-0224

Screw, #10-16 x .500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

33

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

34

Troy-Bilt 790-00131

Joystick Bracket
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 684-04116A

Chute Control Ass’y (Inc. Ref #57)
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 749-04142

Upper Handle LH
(Superseded to 749-04191A)

Variations

Troy-Bilt 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 732-04219

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 731-04954

Steering Control

$5.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 716-04036

E Ring

$6.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-04785

Handle Clutch Lock - LH
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 7

0

44

Troy-Bilt 684-04110A

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

48

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 712-0161

Hex Lock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 711-04469A

Clevis Pin

$5.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 710-1260A

AB Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

56

Troy-Bilt 736-0262

Flat Washer

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 731-04890A

Joystick Pulley Cover
(Superseded to 753-04875P)

$114.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

59

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

60

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 10

0

61

Troy-Bilt 731-04861A

Lower Chute
(Superseded to 731-04861B)

$43.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 684-04162

Chute Support Bracket
(Superseded to 684-04162B-0637)

Variations

Troy-Bilt 684-04162-0637

BRACKET ASM-SUPT CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

64

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 777X41805

Label, Lens Reflector

$9.49

$

In Stock, only 4 left!

0

67

Troy-Bilt 725-04214

Wire Harness, Lamp

$

$

Not available
