9528 (2097150) - Simplicity Compact Tractor, Diesel Transmission - Hi & Lo Range Gears & Shaft Group (3486I46) Parts Diagram

Compact Tractor, Diesel

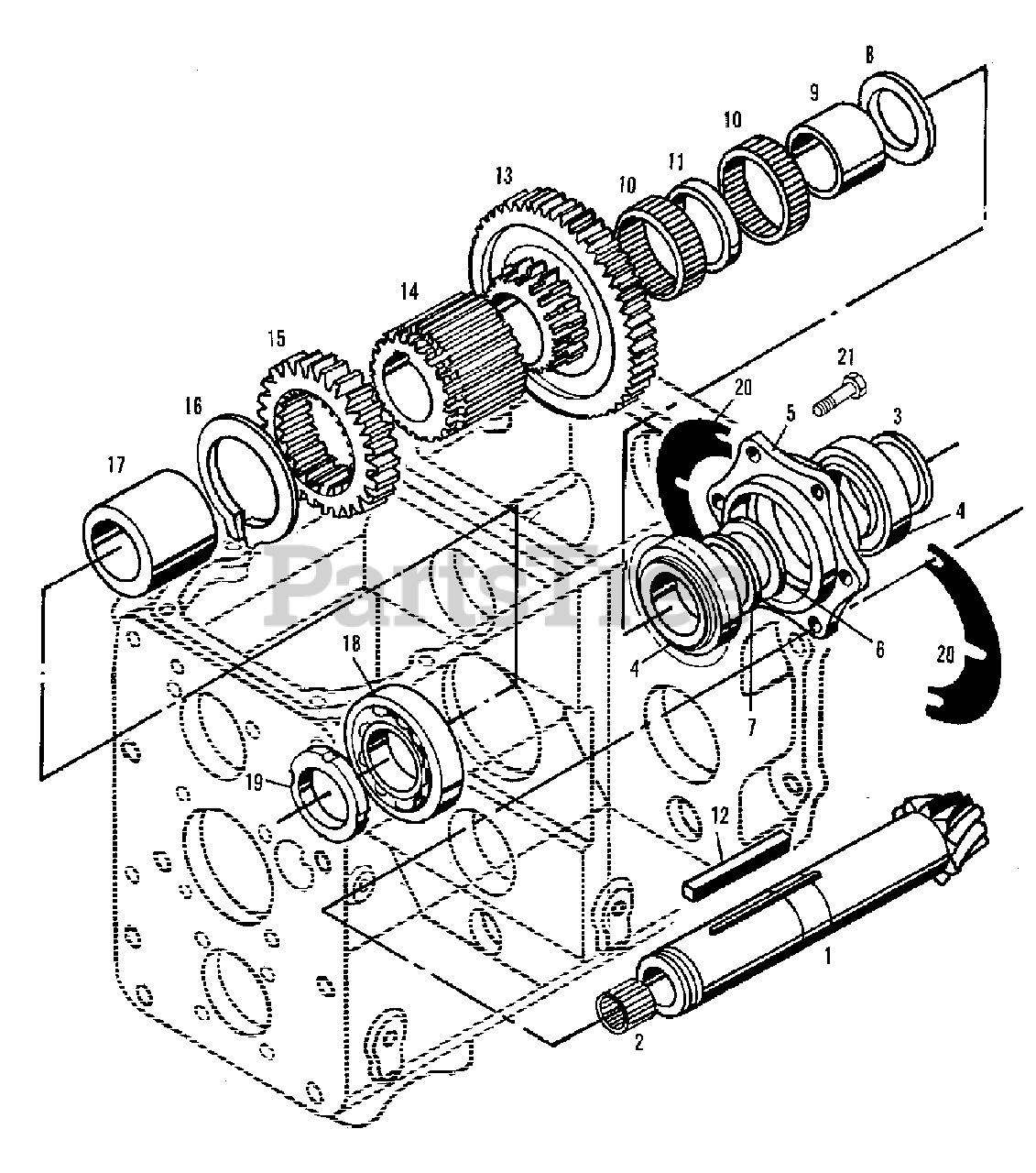

Transmission - Hi & Lo Range Gears & Shaft Group (3486I46) Parts Diagram

  • Title

1

SHAFT, pinion-drive (Not serviced; order 2098001 SHAFT & RIDING GEAR KIT)

$

$

Not available

2

Simplicity 2097920

BEARING, needle

$

$

Not available

3

Simplicity 2097947

WASHER, thrust

$

$

Not available

4

Simplicity 2097981

BEARING, tapered roller

$

$

Not available

5

Simplicity 2097942

CASE, bearing - drive pinion

$

$

Not available

6

Simplicity 2097948

WASHER (0.1)

$

$

Not available

6

Simplicity 2098003

WASHER (0.15)

$

$

Not available

6

Simplicity 2098000

WASHER (0.2) (Select)

$

$

Not available

6

Simplicity 2098004

WASHER (1.0)

$

$

Not available

7

Simplicity 2097949

SPACER, drive pinion

$

$

Not available

8

Simplicity 2097952

WASHER, thrust

$

$

Not available

9

Simplicity 2097950

RING, inner - shell type needle bearing

$

$

Not available

10

Simplicity 2097951

BEARING, needle

$

$

Not available

11

Simplicity 2098368

COLLAR, distance - needle bearing

$

$

Not available

12

Simplicity 2097954

KEY

$

$

Not available

13

Simplicity 2097944

GEAR, lo range

$

$

Not available

14

Simplicity 2097946

COLLAR, hi & lo range

$

$

Not available

15

Simplicity 2097945

GEAR, sliding - hi & lo range

$

$

Not available

16

Simplicity 934113

RING, M65, snap - external

$

$

Not available

17

Simplicity 2097941

COLLAR, distance

$

$

Not available

18

Simplicity 2097980

BEARING, ball

$

$

Not available

19

Simplicity 2097953

NUT, rolling bearing

$

$

Not available

20

Simplicity 2097955

SHIM (0.1)

$

$

Not available

20

Simplicity 2097956

SHIM (0.2) (Select)

$

$

Not available

20

Simplicity 2097958

SHIM (0.4)

$

$

Not available

21

Simplicity 934046

CAPSCREW, M8 x 25, w/lockwasher

$

$

Not available
