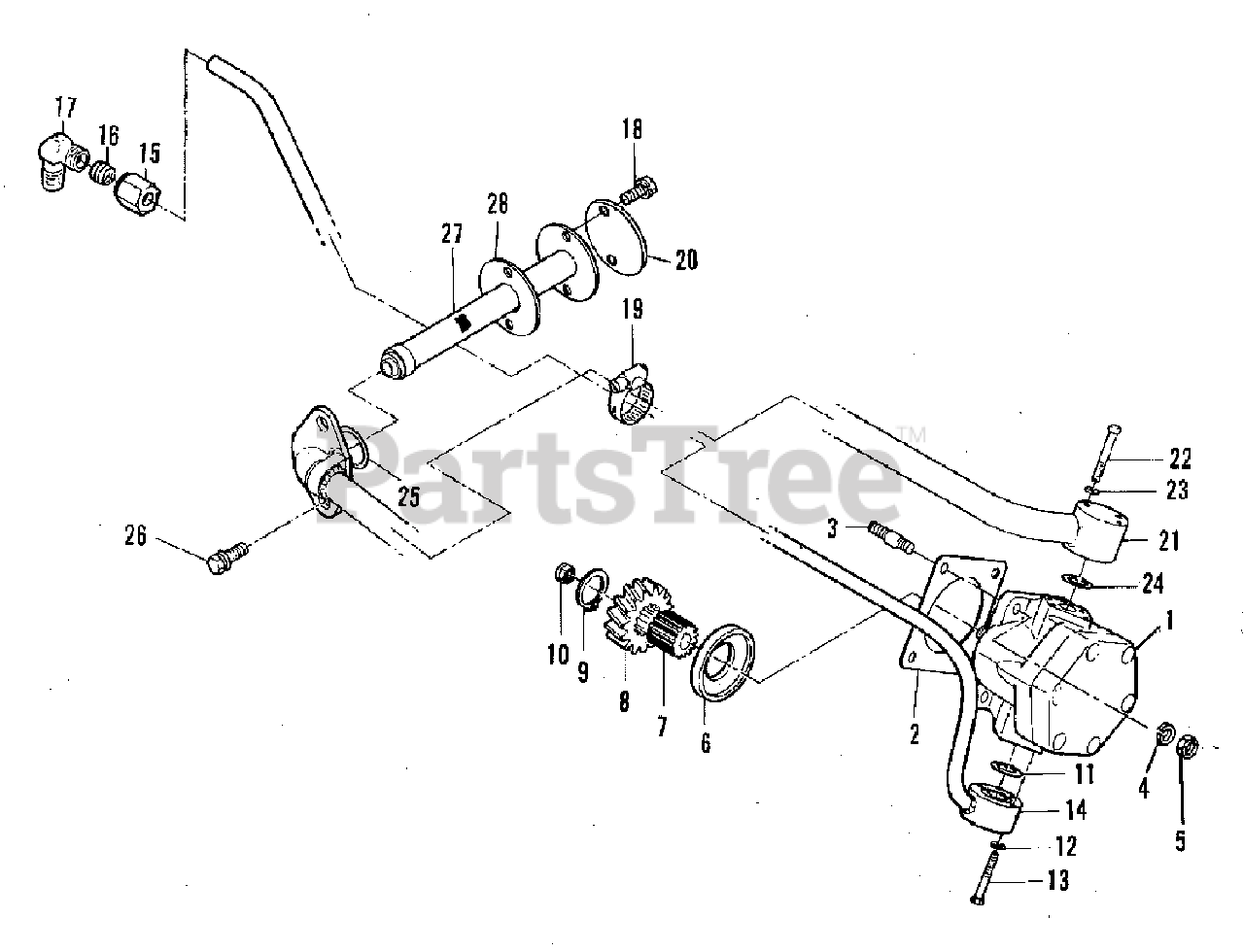

9528 (2097150) - Simplicity Compact Tractor, Diesel Pump & Lines Group (3486I71) Parts Diagram

Compact Tractor, Diesel

Pump & Lines Group (3486I71) Parts Diagram

  • Title
1

Simplicity 2098141

PUMP, hydraulic (Refer to PUMP Group for Components)

$

$

Not available

$

$

Not available

3

Simplicity 934021

STUD, M8 X 31

$

$

Not available

4

Simplicity 934040

LOCKWASHER, M8

$

$

Not available

5

$

$

Not available

6

Simplicity 2098145

WASHER, thrust

$

$

Not available

7

Simplicity 2098146

SHAFT, hydraulic pump drive

$

$

Not available

$

$

Not available

9

Simplicity 932062

RING, snap

$

$

Not available

$

$

Not available

11

$

$

Not available

12

Simplicity 934039

LOCKWASHER, M6

$

$

Not available

13

$

$

Not available

14

Simplicity 2098142

TUBE ASSEMBLY, delivery (Incl. Items 15 & 16)

$

$

Not available

15

Simplicity 2098293

NUT, tube

$

$

Not available

16

$

$

Not available

$

$

Not available

18

Simplicity 934045

CAPSCREW, M8 x 20

$

$

Not available

$

$

Not available

20

Simplicity 2098338

CAP, strainer

$

$

Not available

21

Simplicity 2098139

TUBE, suction

$

$

Not available

22

$

$

Not available

23

Simplicity 934039

LOCKWASHER, M6

$

$

Not available

24

$

$

Not available

25

$

$

Not available

26

Simplicity 934046

CAPSCREW, M8 x 25

$

$

Not available

27

$

$

Not available

28

Simplicity 2098136

GASKET, strainer

$

$

Not available
