9528 (2097150) - Simplicity Compact Tractor, Diesel P.T.O. - Shaft & Gear Group (3486I57) Parts Diagram

Compact Tractor, Diesel

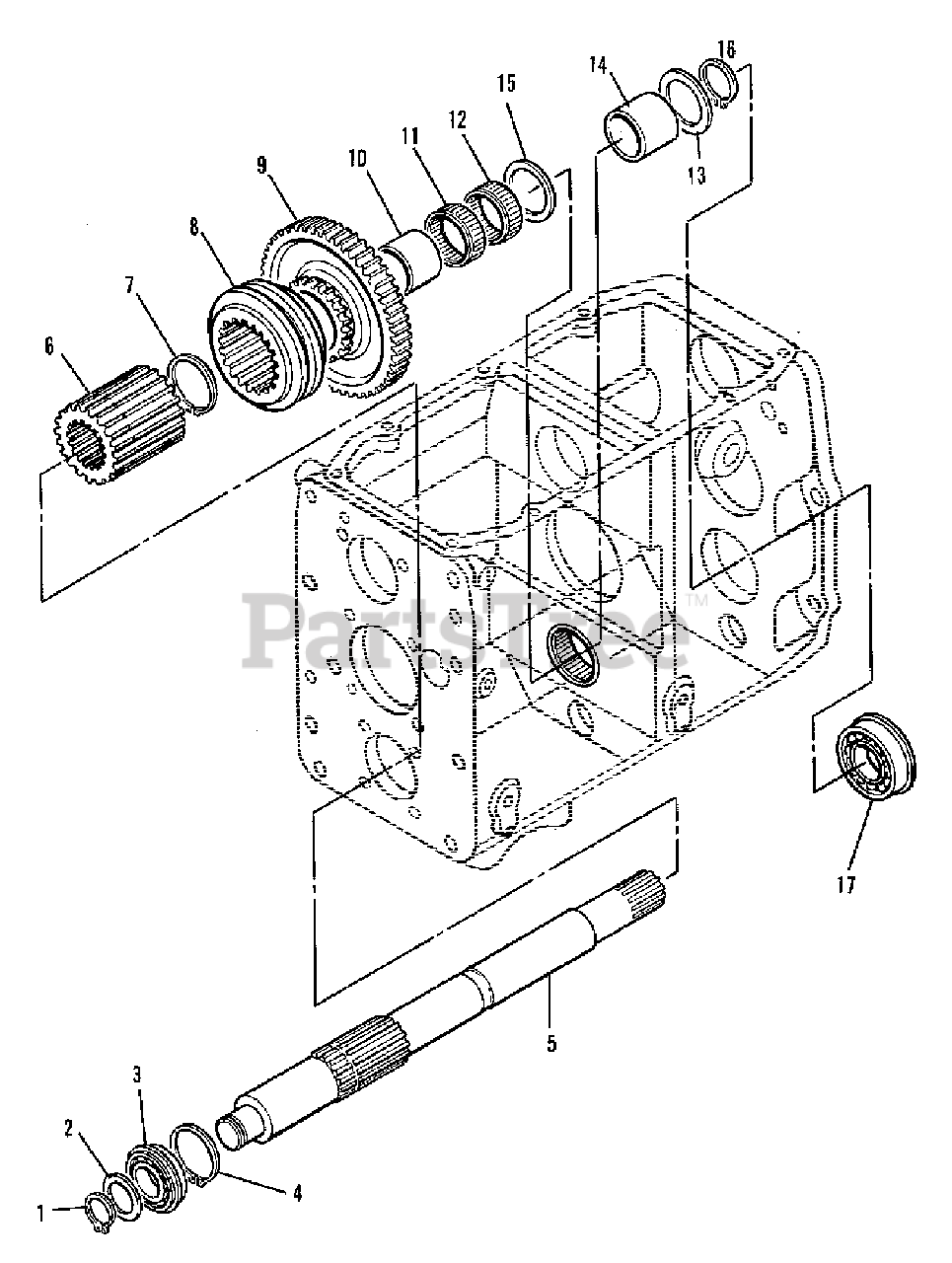

P.T.O. - Shaft & Gear Group (3486I57) Parts Diagram

  • Title

1

Simplicity 934008

RING, snap-external

$

$

Not available

2

Simplicity 2097936

WASHER, thrust

$

$

Not available

3

Simplicity 2097937

BEARING ASSEMBLY (Incl. SNAP RING)

$

$

Not available

4

Simplicity 934112

RING, snap-external

$

$

Not available

5

Simplicity 2097983

SHAFT, P.T.O.

$

$

Not available

6

Simplicity 2097959

HUB, P.T.O. sleeve

$

$

Not available

7

Simplicity 934113

RING, M65, snap-external

$

$

Not available

8

Simplicity 2097551

SLEEVE, P.T.O.

$

$

Not available

9

Simplicity 2097552

GEAR, P.T.O. driven

$

$

Not available

10

Simplicity 2097964

RING, inner-shell type needle bearing

$

$

Not available

11

Simplicity 2097963

BEARING, needle

$

$

Not available

12

Simplicity 2097962

BEARING, needle

$

$

Not available

13

Simplicity 2097969

WASHER, thrust

$

$

Not available

14

Simplicity 2097960

RING, inner-shell type needle bearing

$

$

Not available

15

Simplicity 2097970

WASHER, thrust (3.0)

$

$

Not available

15

Simplicity 2097513

WASHER, thrust (3.3)

$

$

Not available

15

Simplicity 2097515

WASHER, thrust (3.6) (Select)

$

$

Not available

15

Simplicity 2098258

WASHER, thrust (3.9)

$

$

Not available

16

Simplicity 934010

RING, M35, snap-external

$

$

Not available

17

Simplicity 2097553

BEARING ASSEMBLY (Incl. SNAP RING)

$

$

Not available
