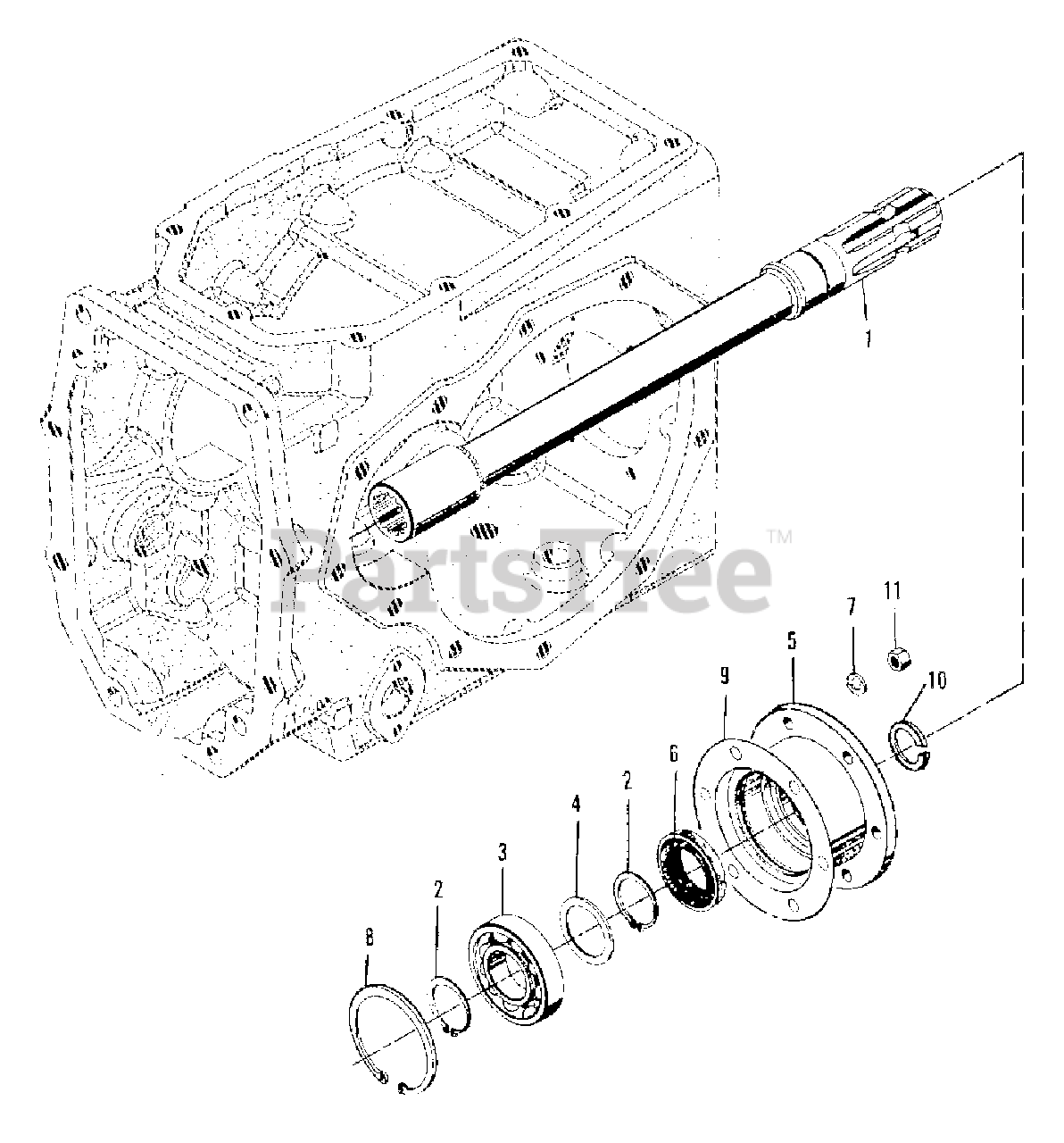

9528 (2097150) - Simplicity Compact Tractor, Diesel P.T.O. - Extension Shaft Group (3486I58) Parts Diagram

Compact Tractor, Diesel

P.T.O. - Extension Shaft Group (3486I58) Parts Diagram

  • Title
1

Simplicity 2098011

SHAFT, P.T.O. extension

$

$

Not available

2

Simplicity 934010

RING, M35, snap-exernal

$

$

Not available

3

Simplicity 2098570

BEARING, ball

$

$

Not available

4

Simplicity 2097919

WASHER, thrust

$

$

Not available

5

Simplicity 2097989

RETAINER ASSEMBLY, bearing (Incl. Item 6)

$

$

Not available

6

Simplicity 2097990

SEAL, oil

$

$

Not available

7

Simplicity 934042

LOCKWASHER

$

$

Not available

8

Simplicity 934012

RING, M72, snap-internal

$

$

Not available

$

$

Not available

10

Simplicity 2098315

RING, stop

$

$

Not available

11

$

$

Not available
