9528 (2097150) - Simplicity Compact Tractor, Diesel Housing - Differential & Final Drive Group (3486I52) Parts Diagram

Compact Tractor, Diesel

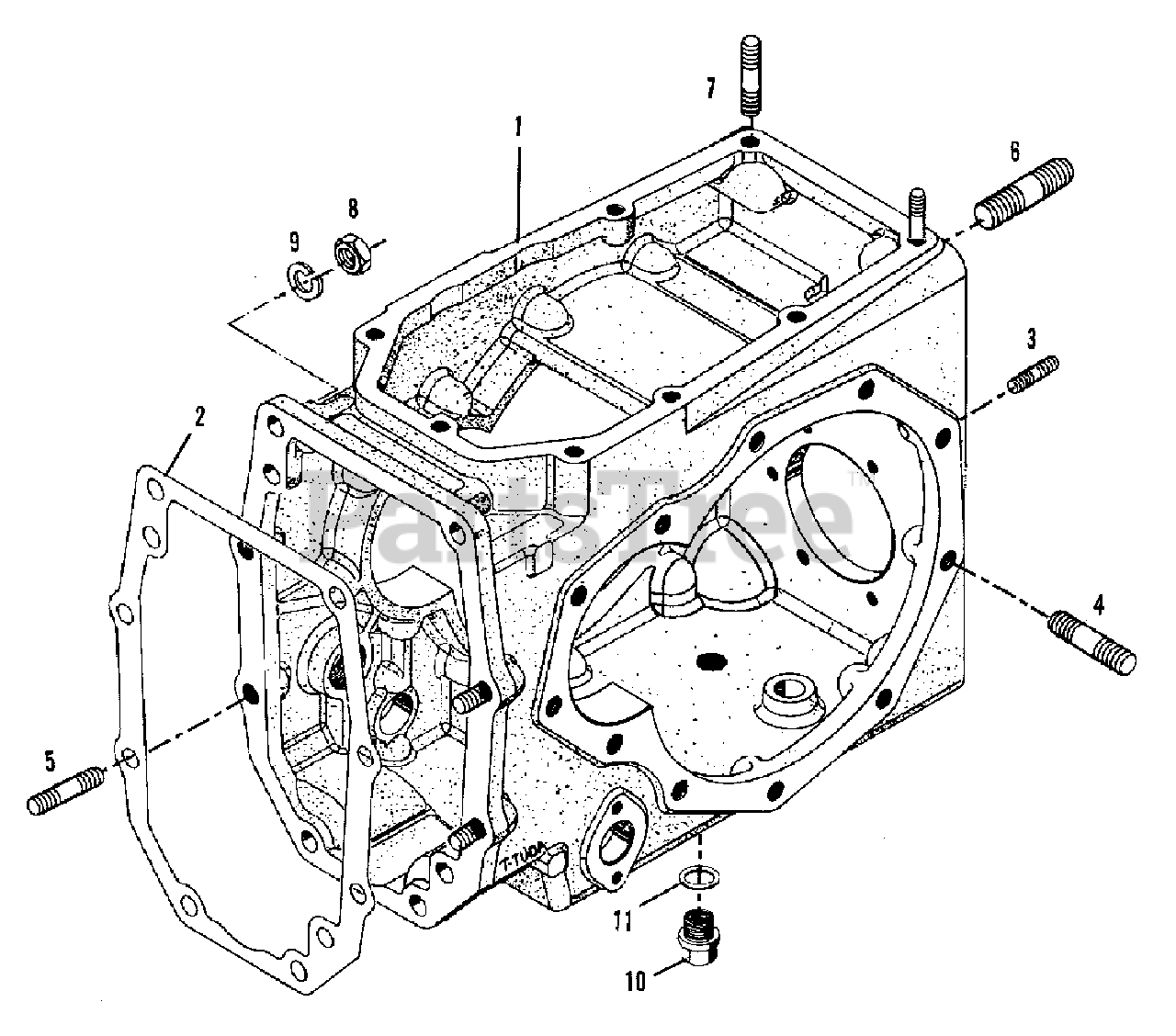

Housing - Differential & Final Drive Group (3486I52) Parts Diagram

  • Title
1

Simplicity 2097986

HOUSING ASSEMBLY, rear (Incl. Items 3 thru 7)

$

$

Not available

2

Simplicity 2097987

GASKET, front

$

$

Not available

3

Simplicity 934020

STUD, M8 x 18 (Seal lock No. 10)

$

$

Not available

4

Simplicity 934024

STUD, M12 x 40

$

$

Not available

5

Simplicity 934023

STUD, M12 x 28

$

$

Not available

6

Simplicity 2097988

STUD, M16 x 29

$

$

Not available

7

Simplicity 934036

STUD, M10 x 50

$

$

Not available

8

$

$

Not available

9

Simplicity 934042

LOCKWASHER, M12

$

$

Not available

10

Simplicity 2097532

PLUG, drain

$

$

Not available

11

Simplicity 2097533

GASKET, drain plug

$

$

Not available
