9523 (2097313) - Simplicity Compact Tractor, Diesel Linkage & Valve Group (3486I73) Parts Diagram

Compact Tractor, Diesel

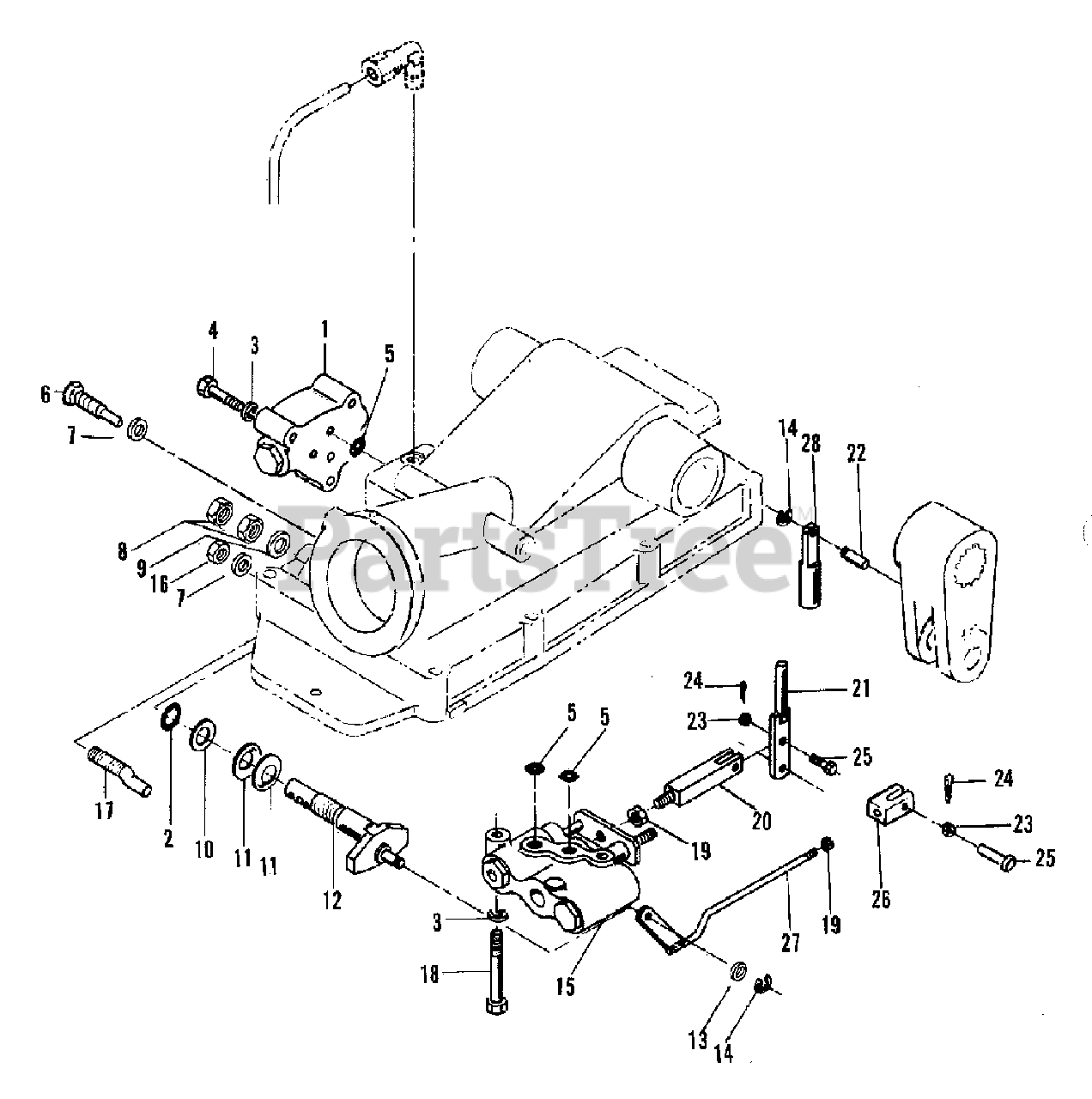

Linkage & Valve Group (3486I73) Parts Diagram

  • Title
1

Simplicity 2098189

COVER ASSEMBLY (Refer to COVER ASSEMBLY Group for Components)

$

$

Not available

$

$

Not available

3

Simplicity 934040

LOCKWASHER, M8

$

$

Not available

4

Simplicity 934089

CAPSCREW, M8 x 20

$

$

Not available

$

$

Not available

6

Simplicity 2098305

BOLT, stopper

$

$

Not available

7

Simplicity 2097874

WASHER, seal

$

$

Not available

8

$

$

Not available

9

Simplicity 2098597

WASHER, thrust

$

$

Not available

10

Simplicity 2098598

WASHER, thrust

$

$

Not available

11

Simplicity 2098187

WASHER, countersunk

$

$

Not available

12

Simplicity 2098188

ROD, lever

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Simplicity 2098192

VALVE, control (Refer to VALVE Group for Components)

$

$

Not available

16

$

$

Not available

17

Simplicity 2098191

BOLT, adjusting

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

Simplicity 2098196

TURNBUCKLE

$

$

Not available

21

Simplicity 2098197

LINK, working (A)

$

$

Not available

22

Simplicity 2098201

ROD, guide

$

$

Not available

$

$

Not available

24

Simplicity 2823360

PIN, cotter

$

$

Not available

25

$

$

Not available

26

Simplicity 2098195

TURNBUCKLE

$

$

Not available

27

Simplicity 2098194

LINK, working (B)

$

$

Not available

28

Simplicity 2098200

GUIDE, link (A)

$

$

Not available
