9523 (2097313) - Simplicity Compact Tractor, Diesel Crankshaft Group (3486I05) Parts Diagram

Compact Tractor, Diesel

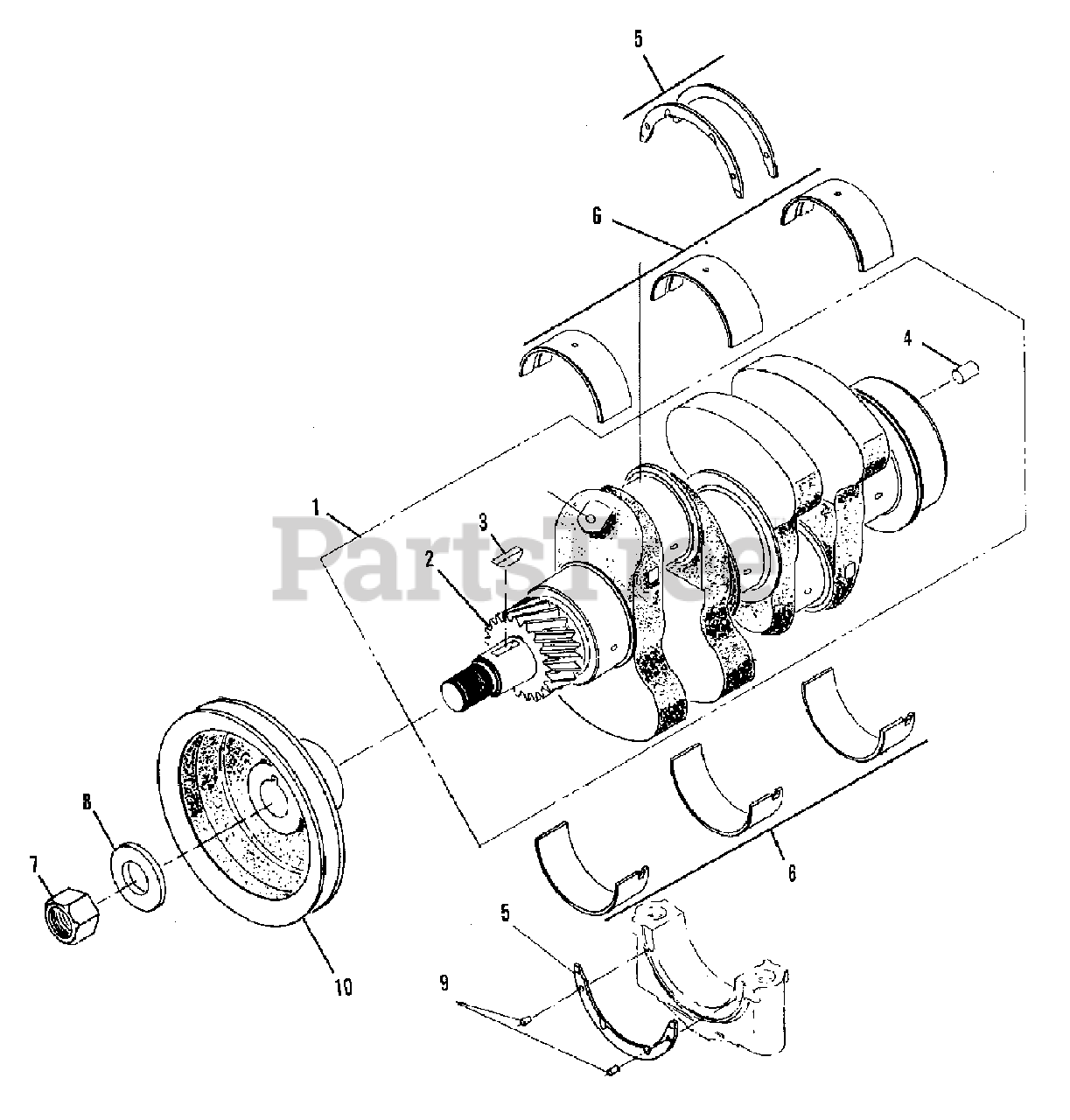

Crankshaft Group (3486I05) Parts Diagram

  • Title
1

Simplicity 2097582

CRANKSHAFT ASSEMBLY (Incl. Items 2 thru 4)

$

$

Not available

2

Simplicity 2097584

GEAR, crankshaft

$

$

Not available

$

$

Not available

4

Simplicity 934096

PIN, dowel

$

$

Not available

5

Simplicity 2097554

FLANGE KIT, thrust (Std.)

$

$

Not available

5

Simplicity 2097555

FLANGE KIT, thrust (O.S. 0.25)

$

$

Not available

6

Simplicity 2097548

BEARING KIT, main (Std.) (Incl. 3 UPPER & 3 LOWER MAIN BEARINGS)

$

$

Not available

6

Simplicity 2097549

BEARING KIT, main (U.S. 0.25) (Incl. 3 UPPER & 3 LOWER MAIN BEARINGS)

$

$

Not available

6

Simplicity 2097550

BEARING KIT, main (U.S. 0.50) (Incl. 3 UPPER & 3 LOWER MAIN BEARINGS)

$

$

Not available

$

$

Not available

8

Simplicity 2097578

WASHER, pulley

$

$

Not available

9

Simplicity 934087

PIN, thrust flange groove

$

$

Not available

10

Simplicity 2098607

PULLEY, crankshaft

$

$

Not available
