9523 (2097107) - Allis-Chalmers Compact Tractor, Diesel Control Valve Group (3486I74) Parts Diagram

Compact Tractor, Diesel

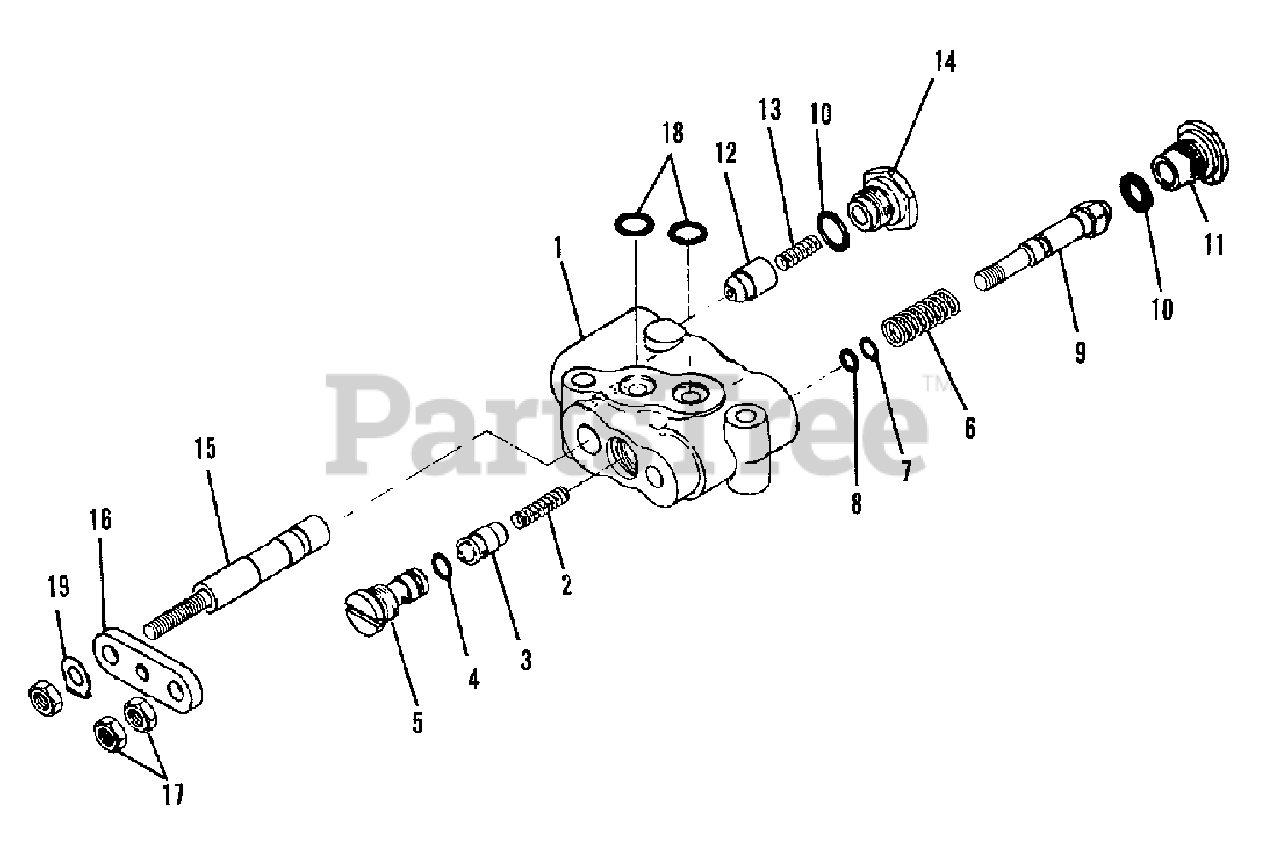

Control Valve Group (3486I74) Parts Diagram

  • Title
-

Simplicity 2098192

VALVE CONTROL

$

$

Not available

1

Simplicity 2098384

BODY ASSEMBLY (Incl. SPOOL)

$

$

Not available

$

$

Not available

3

Simplicity 2098386

PLUG, spring

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

8

Simplicity 2098391

RING, back-up

$

$

Not available

$

$

Not available

10

$

$

Not available

11

Simplicity 2098394

SEAT, poppet

$

$

Not available

12

Simplicity 2098395

PLUG, spring

$

$

Not available

13

Simplicity 2098396

SPRING, small

$

$

Not available

14

Simplicity 2098397

SEAT, spring

$

$

Not available

15

SPOOL (Not serviced; order 2098384 BODY ASSEMBLY)

$

$

Not available

16

Simplicity 2098398

PLATE, spool

$

$

Not available

$

$

Not available

18

Simplicity 2098400

O-RING, body ASSEMBLY

$

$

Not available

19

Simplicity 2098401

LOCK, plate

$

$

Not available
