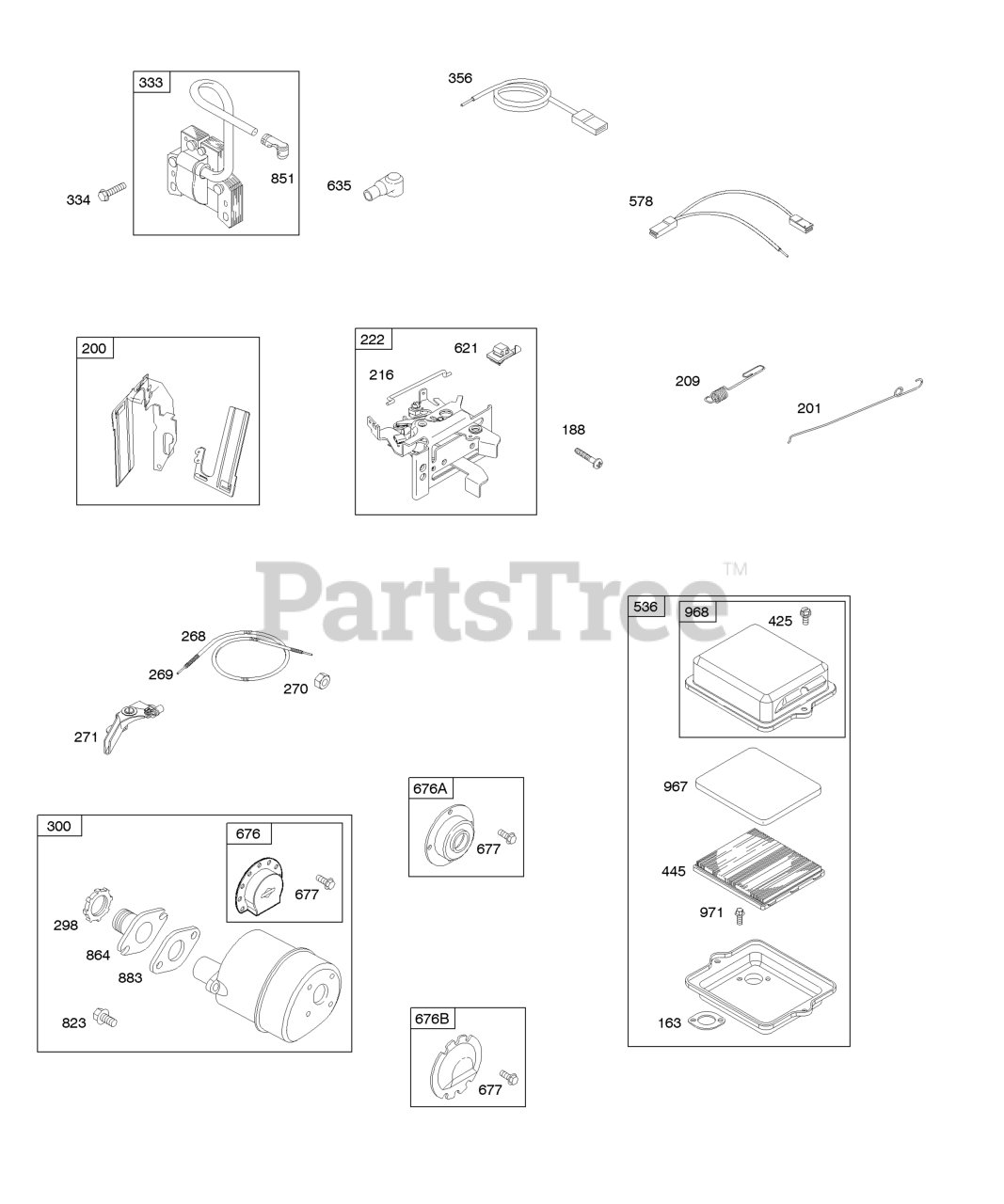

95212-0244-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition Parts Diagram

  • Title
163

Briggs & Stratton 271935S

Gasket-Air Cleaner

$6.49

$

In Stock, Qty 12

0

188

Briggs & Stratton 692200

Screw

Note: (Control Bracket)

$

$

Not available

200

Briggs & Stratton 498770

Blade-Governor

$

$

Not available

201

Briggs & Stratton 691305

Link-Air Vane

$7.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 690563

Spring-Governor

$8.49

$

In Stock, only 1 left!

0

216

$9.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 699132

Bracket-Control

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (72" Long)(Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (78" Long)(Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 691720

Locknut-Muffler/Elbow

$5.49

$

Usually ships in 2-12 days

0

$36.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 793281

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

$

$

Not available

425

Briggs & Stratton 694515

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, Qty 8

0

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

536

$

$

Not available

621

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 8

0

823

Briggs & Stratton 692336

Screw

Note: (Muffler Adapter)

$7.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

864

Briggs & Stratton 690776

Adapter-Muffler

$25.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 691314

Gasket-Exhaust

$6.49

$

In Stock, only 1 left!

0

967

Briggs & Stratton 491435S

Filter-Pre Cleaner

$4.99

$

In Stock, Qty 8

0

968

Briggs & Stratton 692321

Cover-Air Cleaner
(Superseded to 791082)

$20.99

$

In Stock, Qty 13

0

971

Briggs & Stratton 690370

Screw

Note: (Air Cleaner Base) (Remote Choke)

$3.99

$

In Stock, Qty 20+

0
