952051 - Electrolux/AYP Tiller MAINFRAME, LEFT Parts Diagram

Tiller

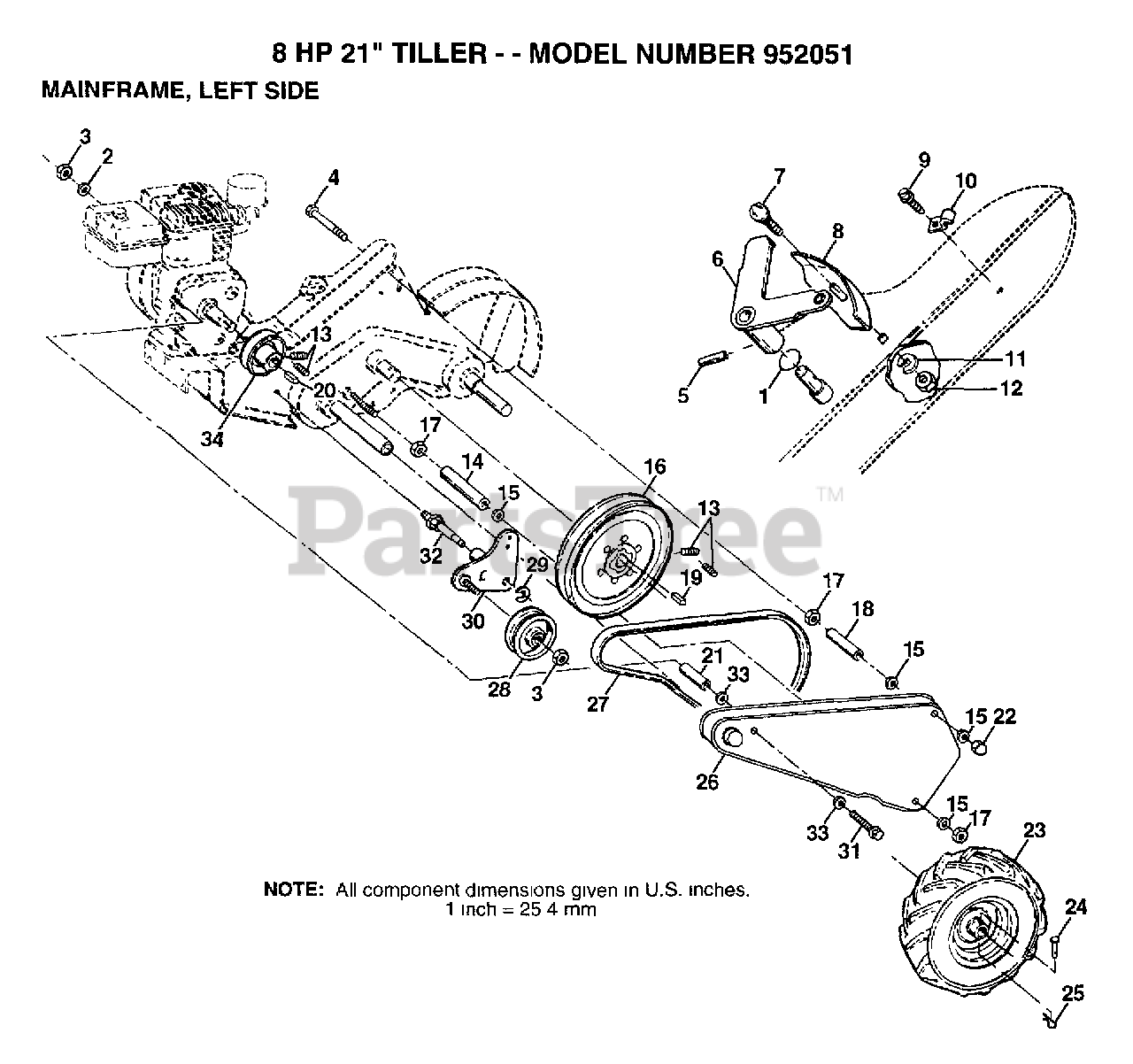

MAINFRAME, LEFT Parts Diagram

  • Title
1

Electrolux/AYP 106160X

O-RING TI
(Superseded to 532106160)

$6.49

$

In Stock, only 1 left!

0

2

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 74930572

BOLT TI
(Superseded to 874930572)

$3.99

$

Usually ships in 3-10 days

0

5

Murray 1572H

SUB= 2882J

$

$

Not available

6

Electrolux/AYP 138398

LEVER.ASM.SHIFT

$4.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 72110404

BOLT
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 8700J

PANEL TI
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

10

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 8382J

SPACER TI
(Superseded to 532008382)

$

$

Not available

15

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 100473M

"SHEAVE 10"" CRT"
(Superseded to 532100473)

$

$

Not available

17

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 8381J

SPACER TI
(Superseded to 532008381)

$2.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 4914H

KEY TI
(Superseded to 532004914)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 139155

SPACER.SPLIT
(Superseded to 532139155)

$6.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 104214X

NUT TI
(Superseded to 532104214)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 5015J

TIRE TI
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

Electrolux/AYP 5014J

WHEEL TI
(Superseded to 532005014)

$169.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

24

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 102818X505

GUARD BELT RED

$19.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 138399

BELT.DRIVE
(Superseded to 532138399)

$60.99

$

Usually ships in 3-10 days

0

28

$

$

Not available

29

Electrolux/AYP 12000032

KLIP RING
(Superseded to 812000032)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 105611X

SUB= 918105611X
(Superseded to 532159229)

$

$

Not available

31

Electrolux/AYP 74770844

BOLT1/2-20UNF2.75
(Superseded to 874770844)

$

$

Not available

32

Electrolux/AYP 139401

SHAFT.IDLER
(Superseded to 532139401)

$14.99

$

In Stock, only 4 left!

0

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 4368J

SHEAVE CRT
(Superseded to 532004368)

$14.99

$

Usually ships in 3-10 days

0
