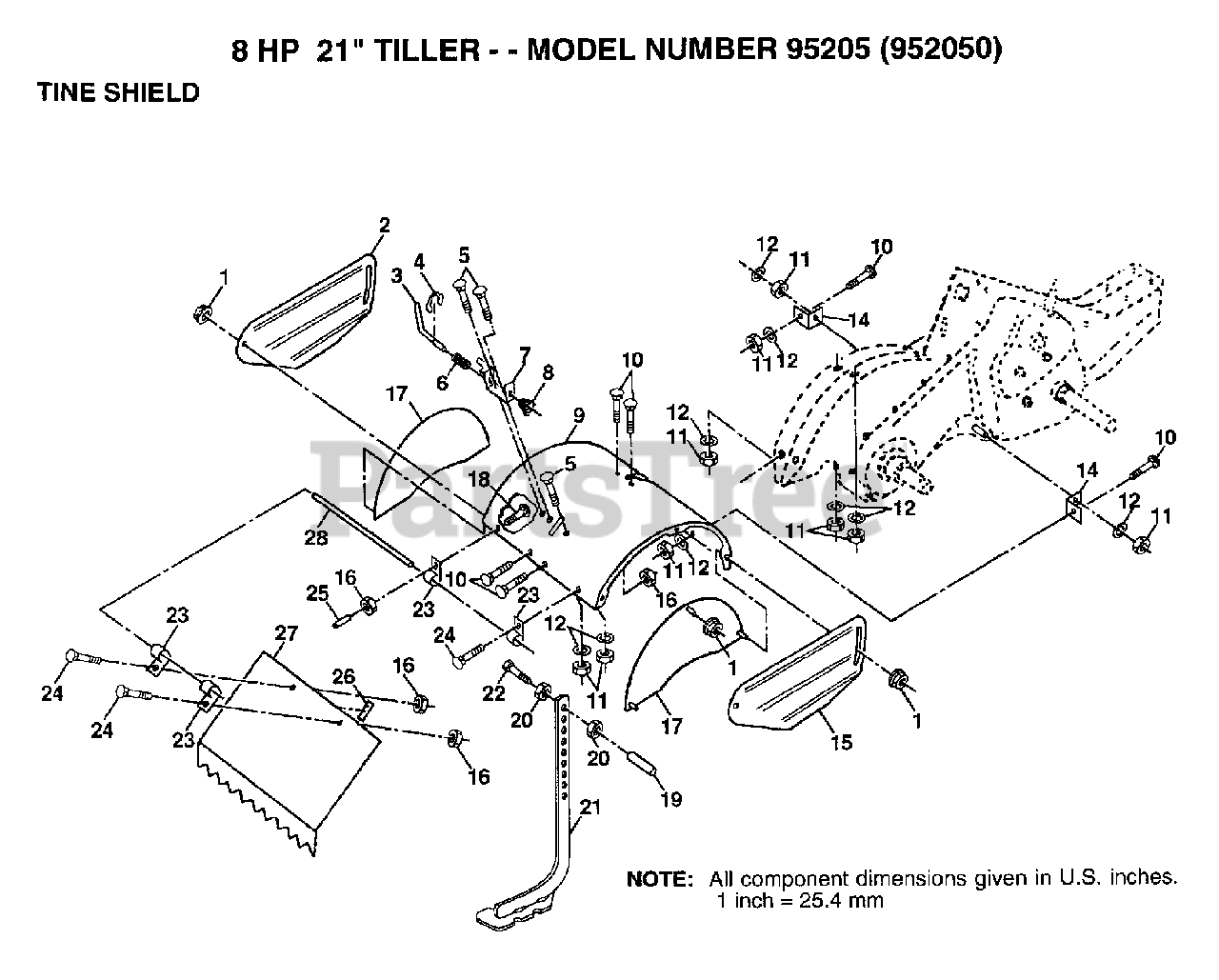

952050 - Electrolux/AYP Tiller TINE SHIELD Parts Diagram

Tiller

TINE SHIELD Parts Diagram

  • Title
1

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 108711X520

SHIELD.LH.OUT.SID

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 8393J

STAKE PIN TI
(Superseded to 532008393)

$31.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 72140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 8394J

SPRING TI
(Superseded to 532008394)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 8392J

LATCH BRACKET TI
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109230X

SPRING CRT
(Superseded to 532109230)

$6.49

$

In Stock, Qty 10

0

$

$

Not available

10

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 8386J

TINE SHLD BRKT TI
(Superseded to 532008386)

$

$

Not available

15

Electrolux/AYP 108710X520

SHIELD.RH.OUT.SID

$8.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

17

Electrolux/AYP 104084X520

SHIELD.ASM.SIDE

$13.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72040410

BOLT
(Superseded to 872040410)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 8389J

GRIP TI
(Superseded to 532008389)

$

$

Not available

20

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 138420

STAKE.ASM.DEPTH
(Superseded to 532138420)

$56.99

$

Usually ships in 3-10 days

0

$

$

Not available

23

Electrolux/AYP 4440J

HINGE CRT
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 72140408

BOLT.1/4-20X1/2
(Superseded to 872140408)

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 6712J

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 102713X520

SHIELD.LEVELING

$19.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 138609

PIN.HINGE
(Superseded to 532138609)

$6.49

$

Usually ships in 3-10 days

0
