951942-C - Electrolux/AYP Lawn Tractor (1995) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

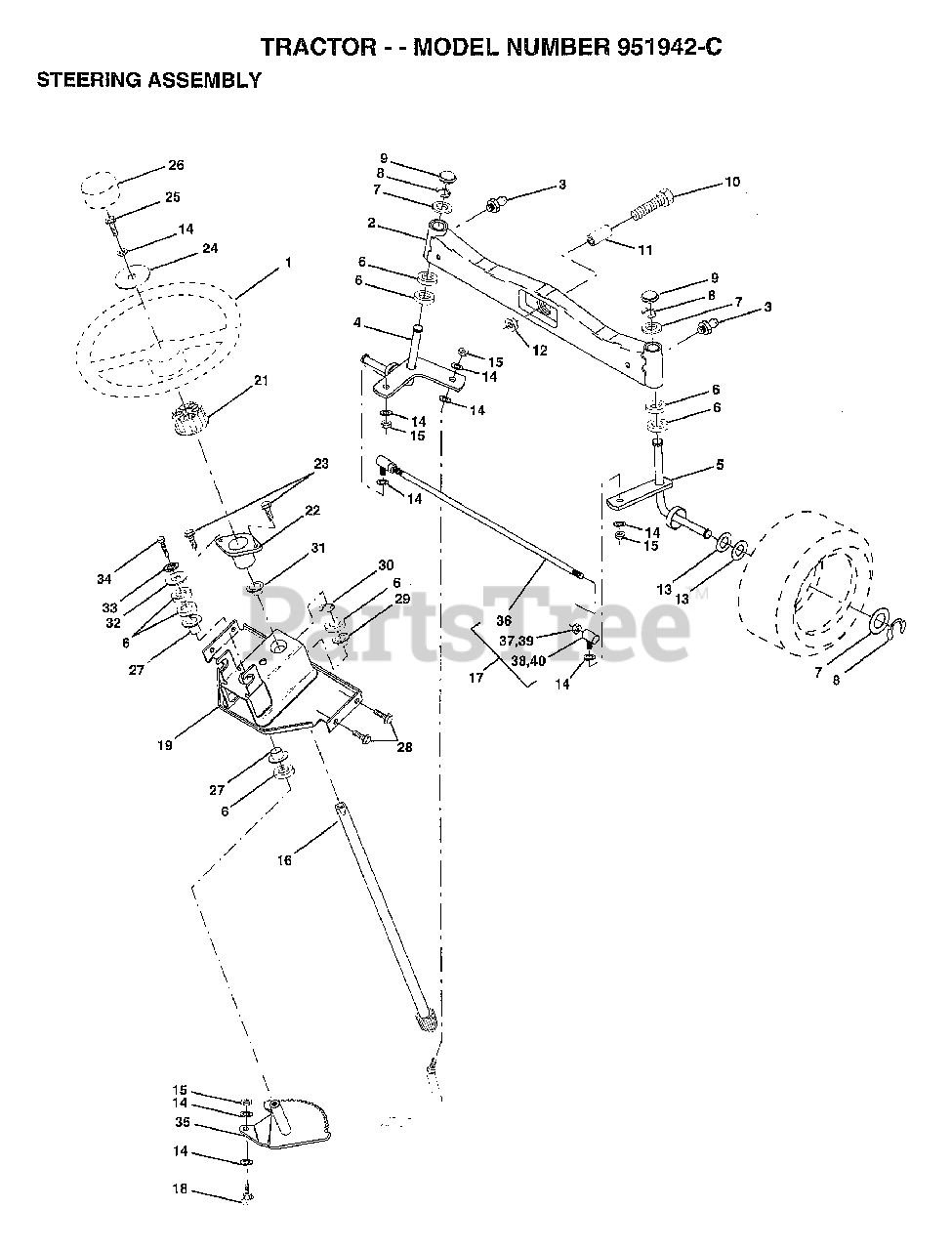

STEERING ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 140044

WHEEL STR AYP BLK
(Superseded to 532175904)

$

$

Not available

2

Electrolux/AYP 137094

SUB= 532137094
(Superseded to 532137094)

$

$

Not available

3

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 136960

SPINDLE.ASM.LH
(Superseded to 532161849)

$

$

Not available

5

Electrolux/AYP 136959

SUB= 918136959
(Superseded to 532161848)

$

$

Not available

6

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

7

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 74781044

BOLT
(Superseded to 874781044)

$

$

Not available

11

Electrolux/AYP 136518

SPACER BEARING
(Superseded to 532136518)

$9.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 145103

SHAFT.STEER.VGT
(Superseded to 532145103)

$121.99

$

In Stock, only 3 left!

0

17

Electrolux/AYP 137347

ROD.ASM.TIE.BALL
(Superseded to 532186799)

$87.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 137155

DRAGLINK.BALL.JOI
(Superseded to 532175572)

$74.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 146611

SUB= 144673
(Superseded to 532146611)

$

$

Not available

21

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

22

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

23

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

24

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

25

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 140045

CAP STEER AYP
(Superseded to 532175905)

$6.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

28

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 104239X

"FLANGE GT, BEAR."
(Superseded to 532104239)

$12.99

$

In Stock, only 3 left!

0

30

Electrolux/AYP 12000034

KLIP RING
(Superseded to 812000034)

$

$

Not available

31

Electrolux/AYP 138136

BUSHING.NYLINER.
(Superseded to 532138136)

$10.99

$

In Stock, Qty 5

0

32

Electrolux/AYP 19111610

WASHER
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 138059

GEAR.ASM.SECTOR.
(Superseded to 532138059)

$

$

Not available

36

Electrolux/AYP 137156

SUB= 137347
(Superseded to 532137156)

$

$

Not available

37

Electrolux/AYP 73360600

NUT
(Superseded to 873360600)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 109850X

JOINT.RH
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 73700600

NUT
(Superseded to 873700600)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 109851X

JOINT.LH
(Superseded to 532109851)

$31.99

$

Usually ships in 3-10 days

0
