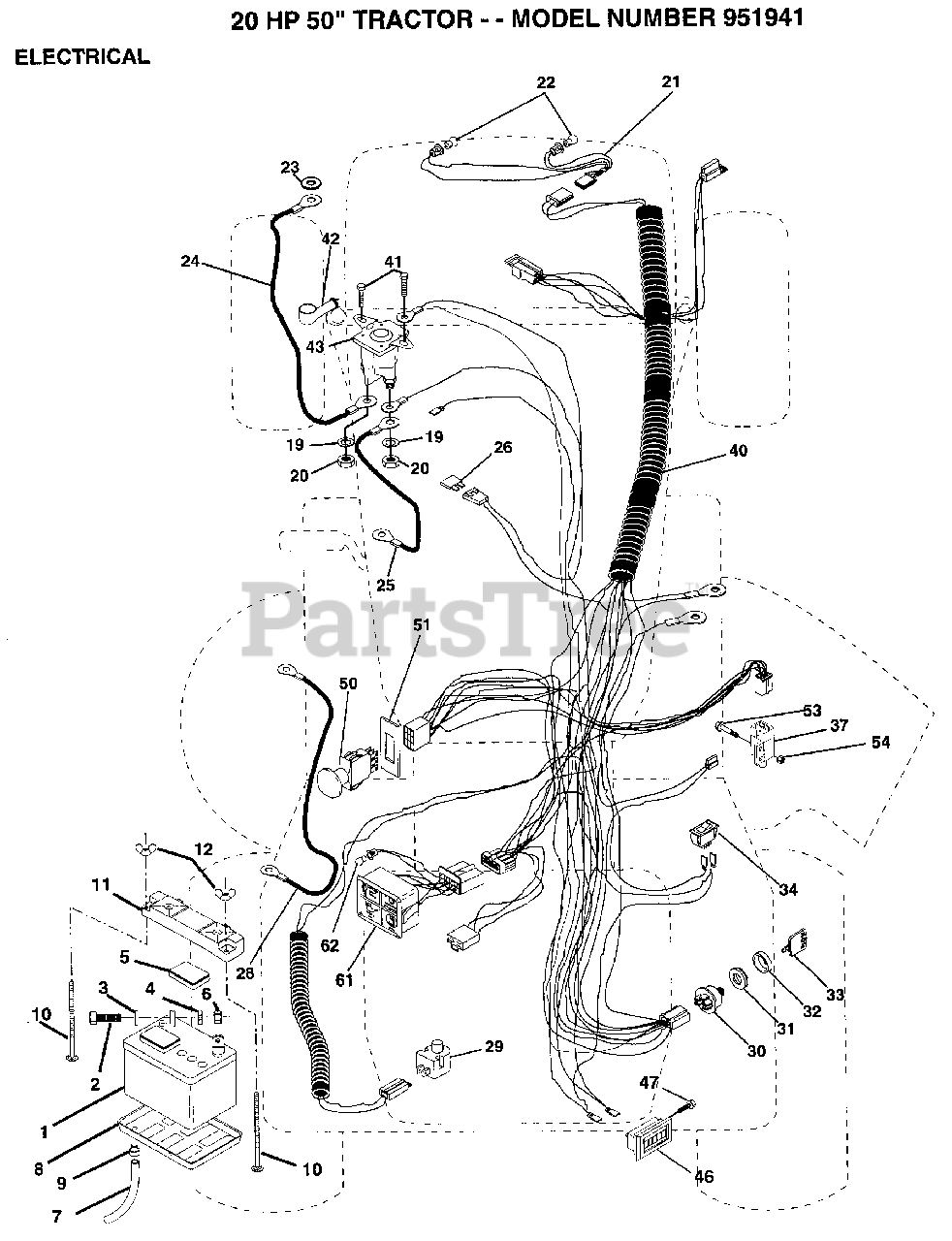

951941 - Electrolux/AYP Lawn Tractor (1994) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

2

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

6

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 7697J

"DRAIN TU T, BATT"

$

$

Not available

8

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

12

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

19

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

20

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

21

Electrolux/AYP 127441X

SUB= 136850
(Superseded to 136850)

$

$

Not available

22

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 11150400

LOCKWASHER
(Superseded to 811150400)

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

26

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 140399

SUB= 163088

$

$

Not available

31

Electrolux/AYP 140400

SUB= 145774

$

$

Not available

32

Electrolux/AYP 141226

COVER KEY SWITCH
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 140401

KEY MLD GEN DELTA
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

34

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 140660

ADAPTER.HARN.SERV
(Superseded to 532140660)

$

$

Not available

40

Electrolux/AYP 143064

HARNESS IGNITION

$84.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 138406

SUB= 146154
(Superseded to 532138406)

$24.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 110940X

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 17011008

SCREW
(Superseded to 817011008)

$

$

Not available

50

Electrolux/AYP 140404

SUB= 154959

$

$

Not available

51

Electrolux/AYP 140405

RING RETAIN PTO
(Superseded to 532140405)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 71031008

SCREW
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 138101

LIGHT.PKG.ASM.
(Superseded to 532138101)

$

$

Not available

62

Electrolux/AYP 110143X

BULB LIGHT T
(Superseded to 532110143)

$

$

Not available
