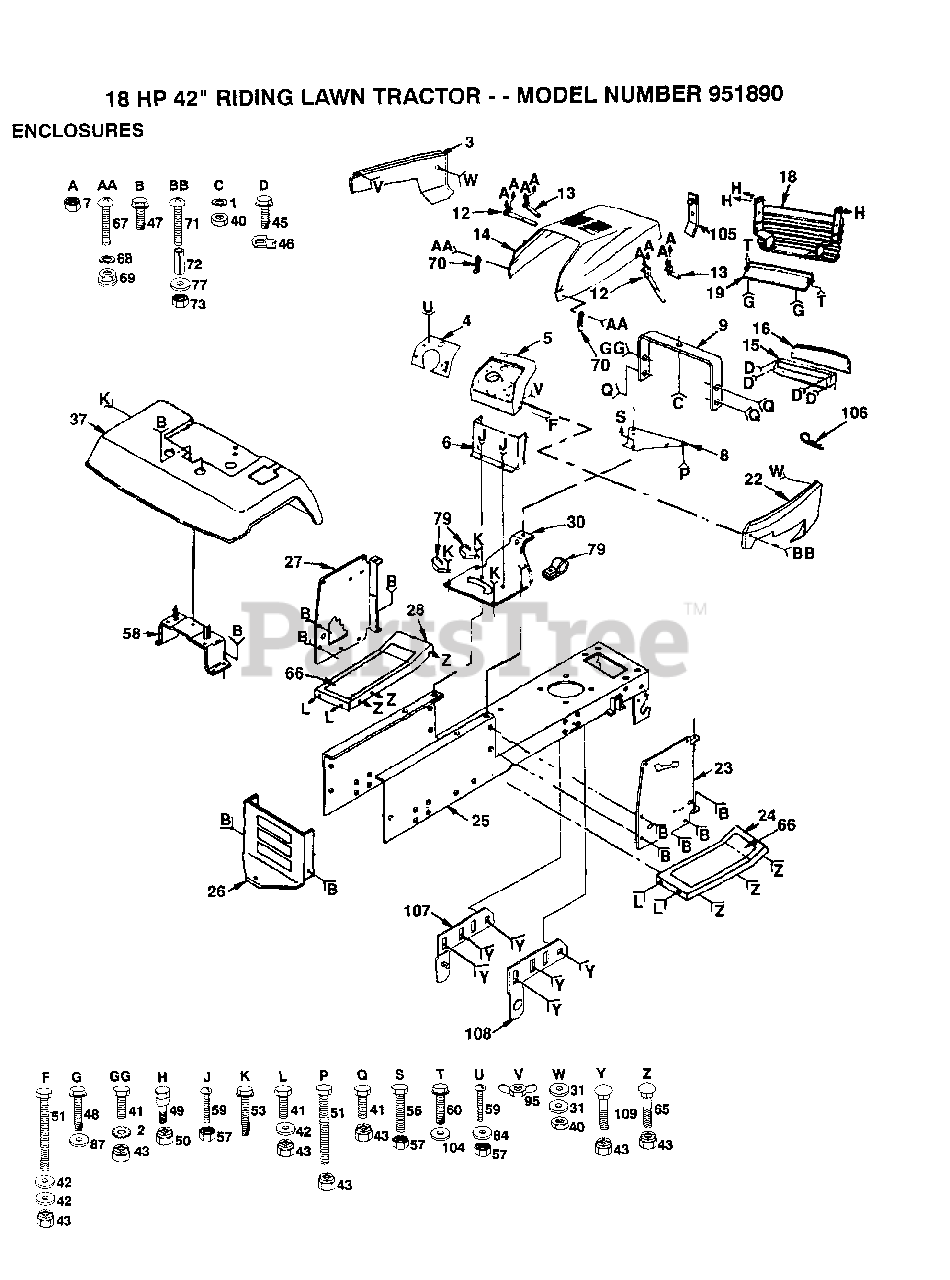

951890 - Electrolux/AYP Lawn Tractor (1992) ENCLOSURES Parts Diagram

Lawn Tractor

ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 132637X417

"PANEL,SIDE LH"

$31.99

$

Usually ships in 3-10 days

0

4

$6.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 124252

SUB= 140398
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

6

$12.99

$

Usually ships in 3-10 days

0

7

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

8

$

$

Not available

9

Electrolux/AYP 124130X

SUPPORT ASS'Y
(Superseded to 532124130)

$

$

Not available

12

$

$

Not available

13

$

$

Not available

$171.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

16

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 131716

SUB= 532131716

$

$

Not available

19

$

$

Not available

22

Electrolux/AYP 132636X417

"PANEL,SIDE RH"

$65.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 132069

SUB= 532132069

$

$

Not available

24

Electrolux/AYP 105464X417

SUB= 145243X417

$

$

Not available

25

Electrolux/AYP 135034

SUB= 145501

$

$

Not available

26

Electrolux/AYP 130805

SUB= 145009

$

$

Not available

27

Electrolux/AYP 132178

DASH PANEL LH

$21.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 105465X417

SUB= 145244X417
(Superseded to 532105465)

$

$

Not available

$

$

Not available

31

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

40

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

48

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

49

$

$

Not available

50

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

51

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

58

$

$

Not available

59

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

60

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

69

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

71

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

72

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 8

0

$2.49

$

Usually ships in 3-10 days

0

75

$

$

Not available

77

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

84

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

87

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

95

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

104

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

105

Electrolux/AYP 32644

SUB= 532132644

$

$

Not available

106

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

107

Electrolux/AYP 134774

PIVOT BRKT LH
(Superseded to 532134774)

$

$

Not available

108

Electrolux/AYP 134775

PIVOT BRKT RH
(Superseded to 532134775)

$

$

Not available

109

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0
