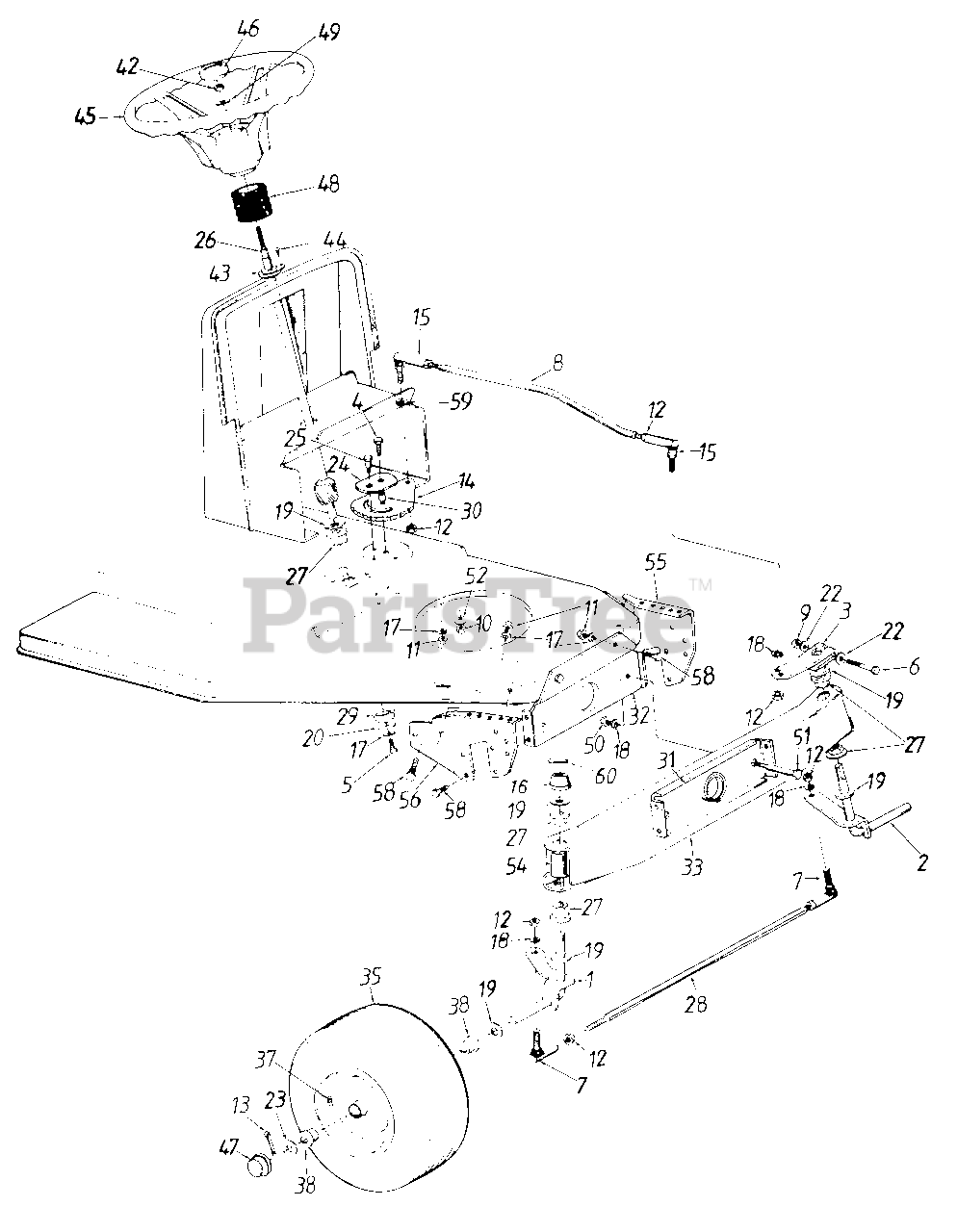

95183 (131-451F062) - Task Force Lawn Tractor (1991) (Lowes) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

Front Axle Ass'y.-R.H.

$

$

Not available

MTD 17584

Front Axle Ass'y.-R.H. (15" x 6" w/Plastic Bearing
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

MTD 17754

Front Axle Ass'y.-R.H. (15" x 6" w/Bronze Bearing)
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

MTD 17584

Front Axle Ass'y.-R.H. (15" x 6" w/Ball Bearing)
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

2

Front Axle Ass'y.-L.H.

$

$

Not available

MTD 17585

Front Axle Ass'y.-L.H. (15" x 6" w/Plastic Bearing
(Superseded to 97585A-0637)

$

$

Not available

MTD 17753

Front Axle Ass'y.-L.H. (15" x 6" w/Bronze Bearing)
(Superseded to 97585A-0637)

$

$

Not available

MTD 17585

Front Axle Ass'y.-L.H. (15" x 6" w/Ball Bearing)
(Superseded to 97585A-0637)

$

$

Not available

3

MTD 16481

Steering Arm
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

4

MTD 710-0152

Hex Bolt 3/8-24 x 1 Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

5

MTD 710-0538

Hex Bolt 5/16-18 x .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 9

0

6

MTD 710-0772

Hex Bolt 5/16-24 x 2" Lg.*

$4.49

$

Usually ships in 3-6 days

0

7

MTD 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

8

MTD 711-0838

Steering Drag Link

$

$

Not available

9

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

10

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

11

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0711

Hex Jam Nut, 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0470

Cotter Pin 1/8 Dia.

$4.49

$

In Stock, Qty 20+

0

14

MTD 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

15

MTD 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

16

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

17

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0343

Fl-Wash. .340" I.D. x 1.125"

$4.49

$

In Stock, Qty 7

0

22

MTD 736-0271

Spr. Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

23

MTD 736-0285

Fl-Wash. .635" I.D. x 1.585"

$4.49

$

In Stock, Qty 9

0

24

MTD 17198

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

25

MTD 738-0141

Shld. Bolt .437" Dia. x .350"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

26

MTD 738-0730

Steering Shaft

$108.99

$

In Stock, only 1 left!

0

27

MTD 741-0225

Hex Flange Brg. .634 Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

28

MTD 747-0753

Tie Rod 20" Lg.

$34.99

$

In Stock, only 1 left!

0

29

MTD 750-0532

Spacer.985" I.D.
(Superseded to 950-0532)

$

$

Not available

30

MTD 750-0535

Spacer.380" I.D.
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

31

MTD 17548

Front Pivot Bar Support Brkt.

Variations

MTD 17548-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

MTD 17548-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17548-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

$

$

32

MTD 17547

Rear Pivot Bar Support Brkt.
(Superseded to 17547-0637)

Variations

MTD 17547-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

MTD 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 2 left!

0

$127.99

$

In Stock, only 2 left!

0

35

Front Wheel Ass'y. Comp. 15" x6"

$

$

Not available

MTD 734-0863

Wheel Ass'y. Comp. (15" x 6" w/Plastic Bearing)
(Superseded to 634-0056B-0911)

Variations

MTD 734-0863-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 734-0863-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

$249.99

$

In Stock, only 3 left!

0

MTD 734-1619

Wheel Ass'y. Comp. (15" x 6" w/Bronze Bearing)
(Superseded to 634-0056B-0911)

$249.99

$

In Stock, only 3 left!

0

MTD 734-1684

Wheel Ass'y. Comp. (15" x 6" w/Ball Bearing)

$

$

Not available

37

Air Valve

$

$

Not available

MTD 734-0255

Air Valve (15" x 6" w/Plastic Bearing)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-0255

Air Valve (15" x 6" w/Bronze Bearing)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-0255

Air Valve (15" x 6" w/Ball Bearing)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

MTD 741-0487

Bronze Bearing .63" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

42

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

43

MTD 741-0501

Steering Column Brg.
(Superseded to 941-0501)

$

$

Not available

44

MTD 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 6

0

45

MTD 731-0805

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

46

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

47

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

48

MTD 731-0559

Bellow Steering Column
(Superseded to 731-0559B)

$

$

Not available

49

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

51

MTD 738-0527

Shld. Bolt 1/2" Dia. x 2.04"

$8.49

$

In Stock, Qty 6

0

52

MTD 736-0356

Bell-Wash. .39" x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

54

MTD 731-1134

Plastic Tube

$

$

Currently unavailable

55

MTD 17545

Pivot Bar Side Plate-L.H.

$

$

Not available

56

MTD 17546

Pivot Bar Side Plate-R.H.

$

$

Not available

58

MTD 710-0604

Hex Wash. Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0217

L-Wash. 3/8" I.D. (H.D.)

$4.49

$

In Stock, Qty 8

0

60

MTD 715-0150

Roll Pin

Note: (Used w/Bronze Wheel Brgs.)

$4.49

$

In Stock, Qty 17

0
