951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) Front Lift Hitch Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

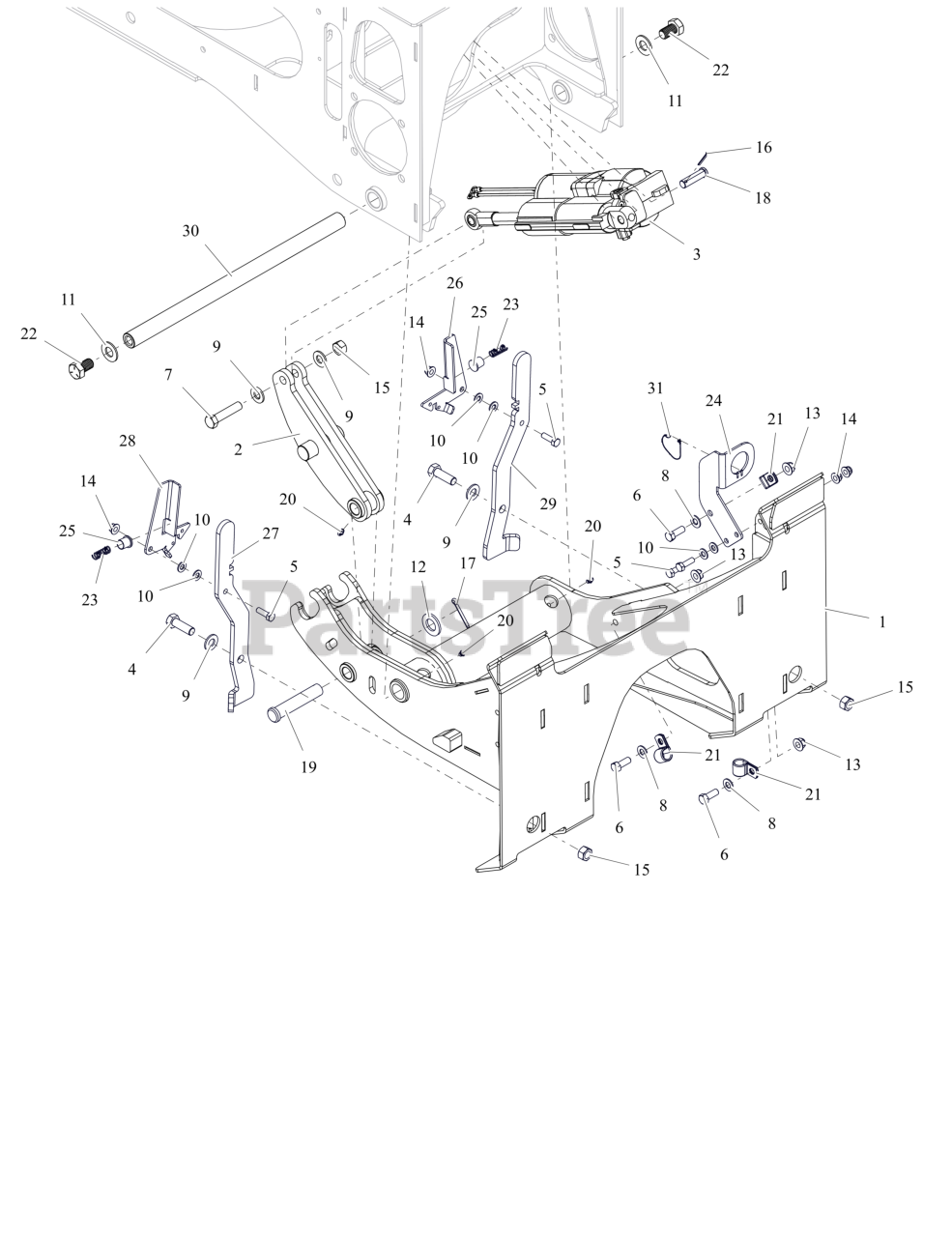

Front Lift Hitch Parts Diagram

  • Title

1

Ariens 55100100

WLDMT, LIFT FRAME - W/ZERK AND DECAL

$2491.99

$

Usually ships in 4-12 days

0

2

Ariens 55100200

WLDMT, LINK LIFT - W/ZERK

$297.99

$

Usually ships in 4-12 days

0

3

Ariens 09450900

ACTUATOR- LINEAR PARKER EHA

$1228.99

$

Usually ships in 4-12 days

0

4

Ariens 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

5

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 5

0

8

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500827

NUT,LK-CTR .50-13 GA ZCC

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06700214

PIN, CTR .18X1.50 EXTPRSQCT ZC120

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 06800215

PIN- CLEVIS .50 X 1.75"

$7.99

$

Usually ships in 4-12 days

0

19

Ariens 06800216

PIN- CLEVIS

$15.99

$

Usually ships in 4-12 days

0

20

Ariens 07001806

FITTING, LUBE .25-28X.256 ZC120
(Superseded to 07012600)

$

$

Not available

21

Ariens 07002003

CLAMP, HARNESS - "P" (5/8" ID)

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 07002004

BOLT- HEX 5/8-11 X 1" GR5

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 07002025

SPRG- COMPRESSION

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 09452300

PLATE- BRKT CONNECTOR

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 09456000

CAP- DUST

$6.99

$

Usually ships in 4-12 days

0

26

Ariens 09456100

LATCH- LEFT COUPLER

$29.99

$

Usually ships in 4-12 days

0

27

Ariens 09456200

HANDLE- RIGHT COUPLER

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 09456300

LATCH- RIGHT COUPLER

$17.99

$

Usually ships in 4-12 days

0

29

Ariens 09456400

HANDLE- LEFT COUPLER

$45.99

$

Usually ships in 4-12 days

0

30

Ariens 09456600

PIN- PIVOT

$51.99

$

Usually ships in 4-12 days

0

31

Ariens 09676800

WIRE, CAP LANYARD

$28.99

$

Usually ships in 4-12 days

0
