951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) Engine - Kawasaki FX850 EFI Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

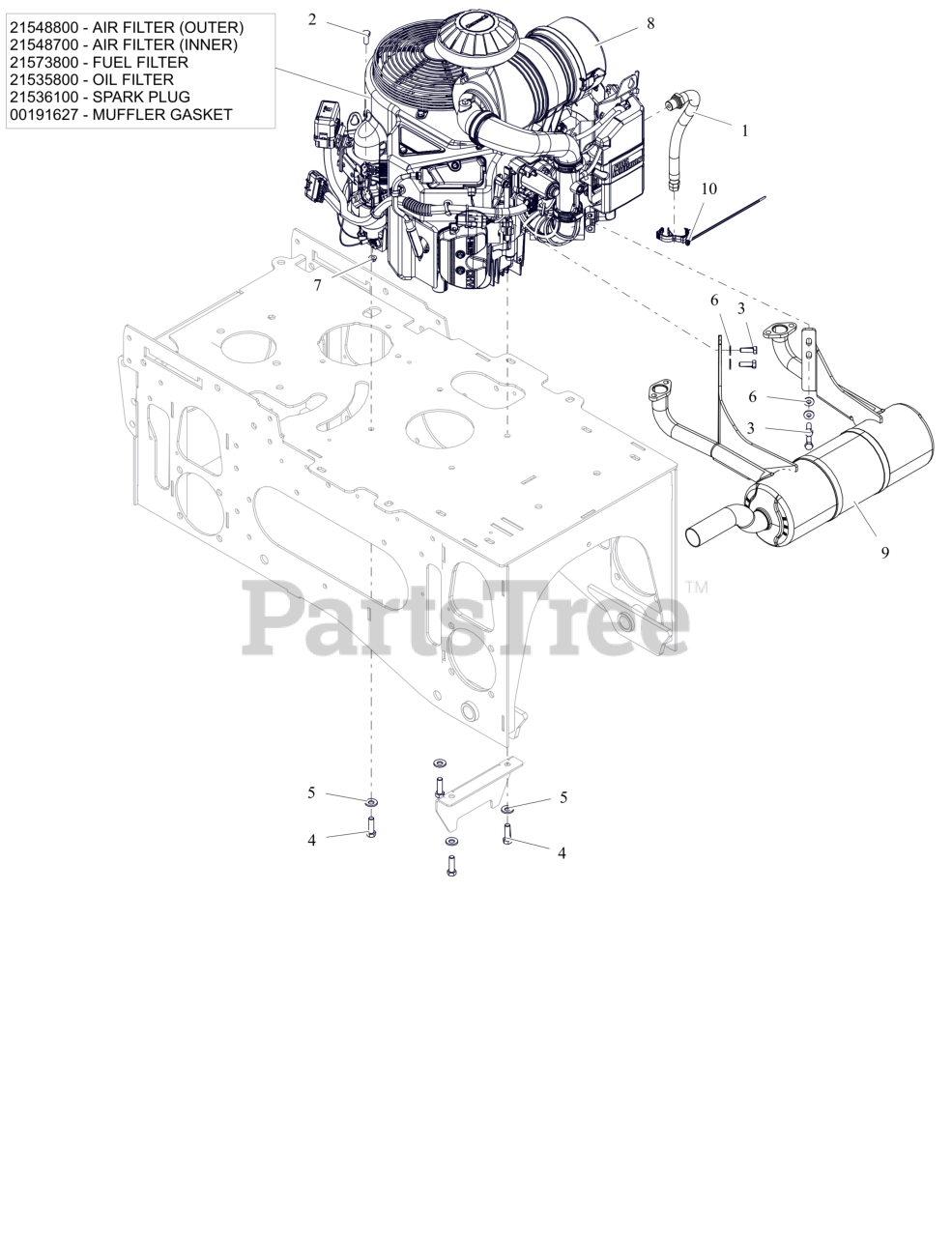

Engine - Kawasaki FX850 EFI Parts Diagram

  • Title

1

Ariens 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 05901630

BLT,HEX M8-1.25X25 G8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

5

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

6

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06500807

NUT- SPNLK-FLG M6-1.0 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 08201421

ENGINE, KAWASAKI FX850 EFI

$

$

Currently unavailable

8

Ariens 21548800

FILTER, OUTER

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

8

Ariens 21548700

FILTER, INNER - KAW

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

8

Ariens 21573800

FUEL FILTER-KAWASAKI FR

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

8

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

8

Ariens 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

8

Ariens 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

9

Ariens 09455600

MUFFLER- W/BRACKETS- EES

$271.99

$

Usually ships in 4-12 days

0

10

Ariens 09491200

CLIP- HARNESS CABLE TIE

$3.49

$

Usually ships in 4-12 days

0
