950C-00 - Paramount Edger, Electric EDGER ASSEMBLY Parts Diagram

Edger, Electric

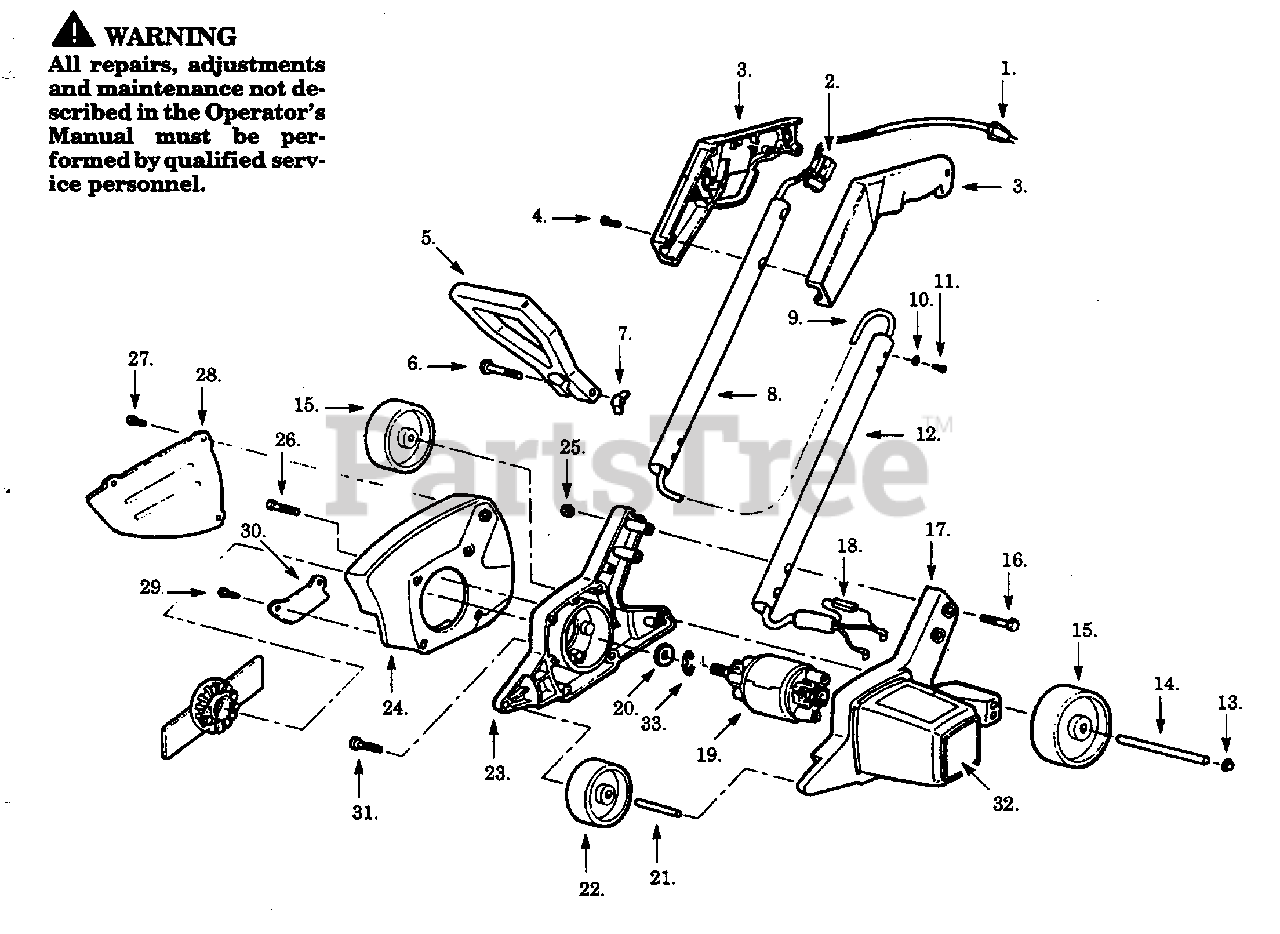

EDGER ASSEMBLY Parts Diagram

  • Title
1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534193004

Trigger Switch

$

$

Not available

3

Poulan 534356732

Handle Set

$

$

Not available

$

$

Not available

5

Poulan 534159205

Assist Handle

$

$

Not available

$1.49

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

Poulan 534222506

Upper Handle Tube

$

$

Not available

9

$

$

Not available

10

Poulan 534713000

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

11

$

$

Not available

12

Poulan 534223201

Lower Handle Tube

$

$

Not available

13

Poulan 534121000

Push Nut

$3.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

15

$6.49

$

Usually ships in 3-10 days

0

16

$1.49

$

Usually ships in 3-10 days

0

17

Poulan 534323302

Motor Cover

$10.99

$

Usually ships in 3-10 days

0

18

Poulan 534278000

Rectifier Ass'y.

$

$

Not available

19

$

$

Not available

20

$

$

Not available

$

$

Not available

22

$4.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

24

Poulan 534346702

Guard Housing

$

$

Not available

25

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

26

$

$

Not available

27

$

$

Not available

28

Poulan 534323405

Side Guard

$6.49

$

Usually ships in 3-10 days

0

29

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534323500

Edge Guide

$

$

Not available

31

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 534392600

Housing Label

$

$

Not available

33

Poulan 534747011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0
