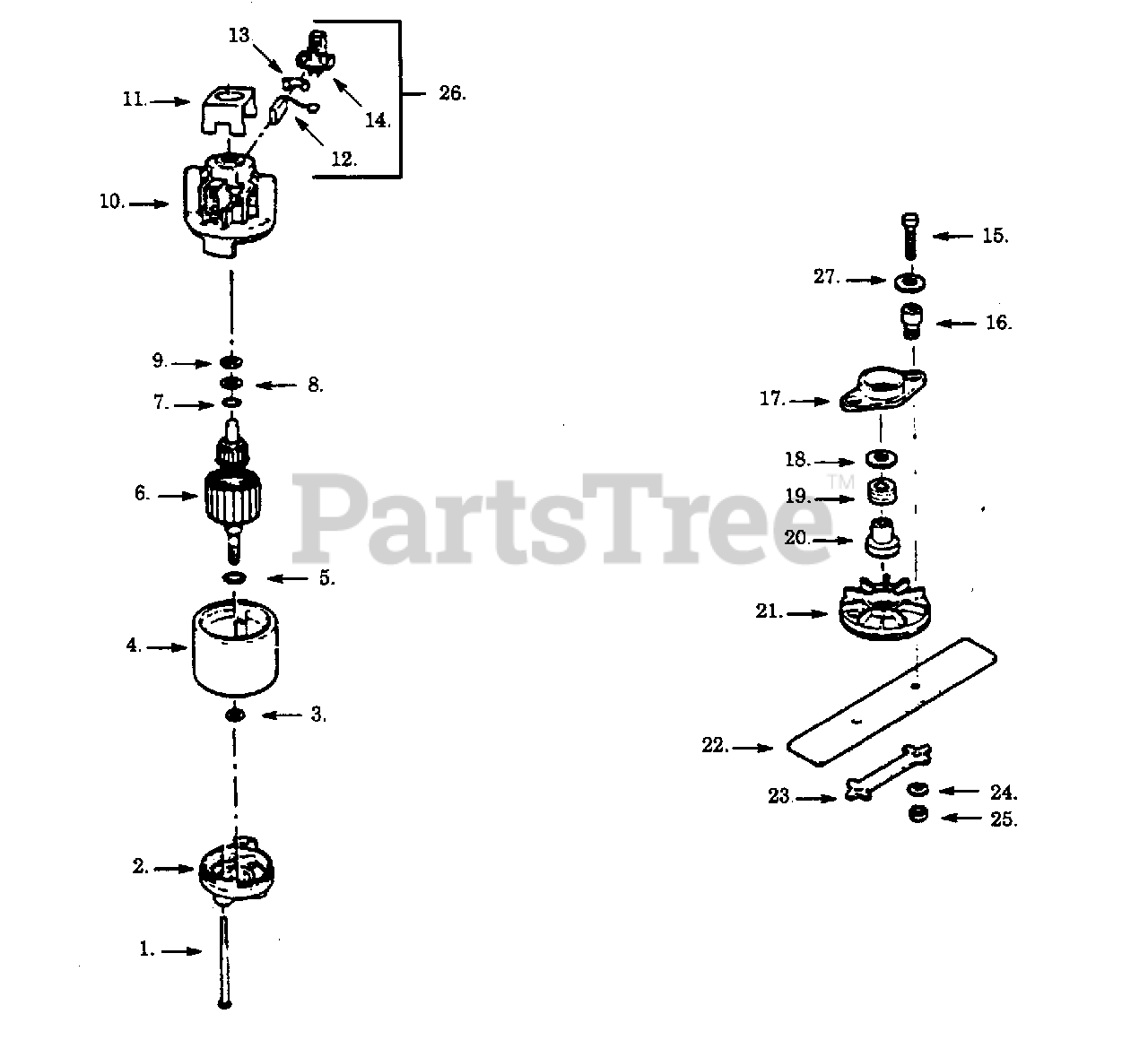

950C-00 - Paramount Edger, Electric BRUSH ASSEMBLY Parts Diagram

Edger, Electric

BRUSH ASSEMBLY Parts Diagram

  • Title

1

Poulan 534228700

Screw

$

$

Not available

2

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

3

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

5

Poulan 534747011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 534225122

Armature Ass'y.

$

$

Not available

7

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

8

Poulan 534228802

Washer

$

$

Not available

9

Poulan 534238903

Washer

$

$

Not available

10

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

11

Poulan 534226000

Insulator

$

$

Not available

12

Poulan 534227800

Brush

$

$

Not available

13

Poulan 534228000

Brush Spring

$

$

Not available

14

Poulan 534227700

Brush Holder

$

$

Not available

15

Poulan 534135900

Bolt

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 534135605

Sleeve

$

$

Not available

17

Poulan 534135400

Clutch Plate

$

$

Not available

18

Poulan 534136300

Washer

$

$

Not available

19

Poulan 534238900

Spring Washer

$

$

Not available

20

Poulan 534135500

Clutch Sleeve

$

$

Not available

21

Poulan 534135305

Fan

$

$

Not available

22

Poulan 952710529

Blade

$14.99

$

Usually ships in 3-10 days

0

23

Poulan 534135700

Lockstrap

$3.99

$

In Stock, only 1 left!

0

24

Poulan 534136600

Lockwasher

$

$

Not available

25

Poulan 534136200

Nut

$

$

Not available

26

Poulan 534450400

Brush Kit (Inc. 12,13,14)

$

$

Not available

27

Poulan 534520022

Thrust Washer

$

$

Not available
