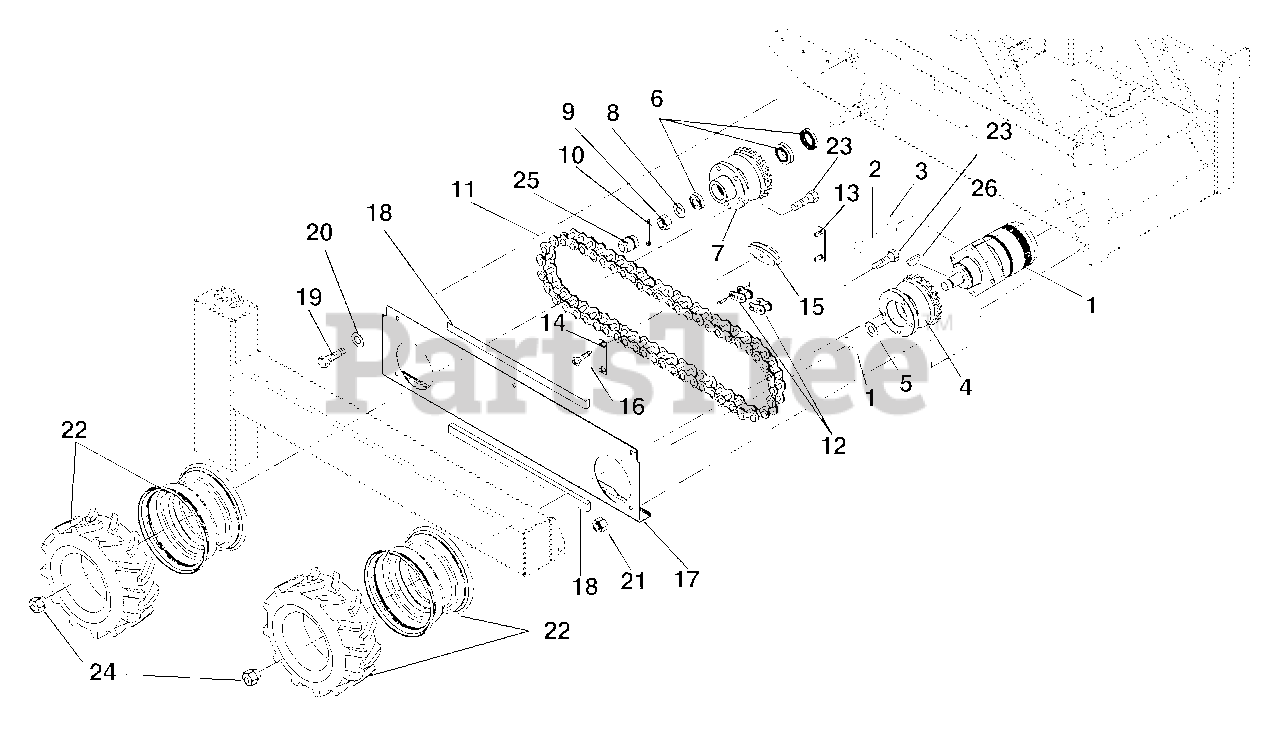

950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Wheels And Drive Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Wheels And Drive Parts Diagram

  • Title

1

Gravely 05033400

Motor-Wheel

$

$

Not available

1

Gravely 55000900

Seals, Hydraulic Motor

$

$

Not available

1

Gravely 55001000

Seals, Hydraulic Motor Hi-Temp

$

$

Not available

2

Gravely 05972900

Bolt-Hex M16-2 x 40 Class 10.9

$

$

Not available

3

Gravely 06436100

Washer-Flat-Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05033700

Hub-Front Drive

$

$

Not available

5

Gravely 06443000

Washer-Flat-Steel 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 05033900

Bearing-Wheel Set

$

$

Not available

7

Gravely 05033800

Hub-Rear Idler

$

$

Not available

8

Gravely 06413400

Washer-Hardened-Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06538700

Nut-Slotted .75-16

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05035400

Chain-60 Roller

$

$

Not available

12

Gravely 05035600

Link, Master Half

$

$

Not available

13

Gravely 05049400

Bracket-Chain Tensioner

$

$

Not available

14

Gravely 05049401

Bracket-Retainer Plate

$

$

Not available

15

Gravely 05049300

Guide-Chain Tensioner

$

$

Not available

16

Gravely 05973000

Screw-Socket Flat Head M8-1.25

$

$

Not available

17

Gravely 05049150

Guard-Chain Right Hand

$

$

Not available

17

Gravely 05049050

Guard-Chain Left Hand

$

$

Not available

18

Gravely 00916400

Gasket-Foam with Adhesive Back
(Superseded to 02072000)

$

$

Not available

19

Gravely 05956300

Bolt-Hex M8- 1.25 x 16

$

$

Not available

20

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06542400

Nut-Locking-Nylon M10-1.5

$

$

Not available

22

Gravely 07151700

Wheel-Lug Assembly Right Hand

$

$

Not available

22

Gravely 07151800

Wheel-Lug Assembly Left Hand

$

$

Not available

22

Gravely 07154800

Tire-Lug 20 x 8.00-10

$

$

Not available

22

Gravely 07152000

Tube-20 x 8.00-10

$

$

Not available

22

Gravely 07152200

Rim

$

$

Not available

23

Gravely 07004400

Bolt-Wheel Lug .44-20 x 1.38

$

$

Not available

24

Gravely 039687

Nut-Lug .437-20
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 09079700

Cap-Hub

$

$

Not available

26

Gravely 06607800

Key-Woodruff .31 x 1.00

$3.99

$

Usually ships in 4-12 days

0
