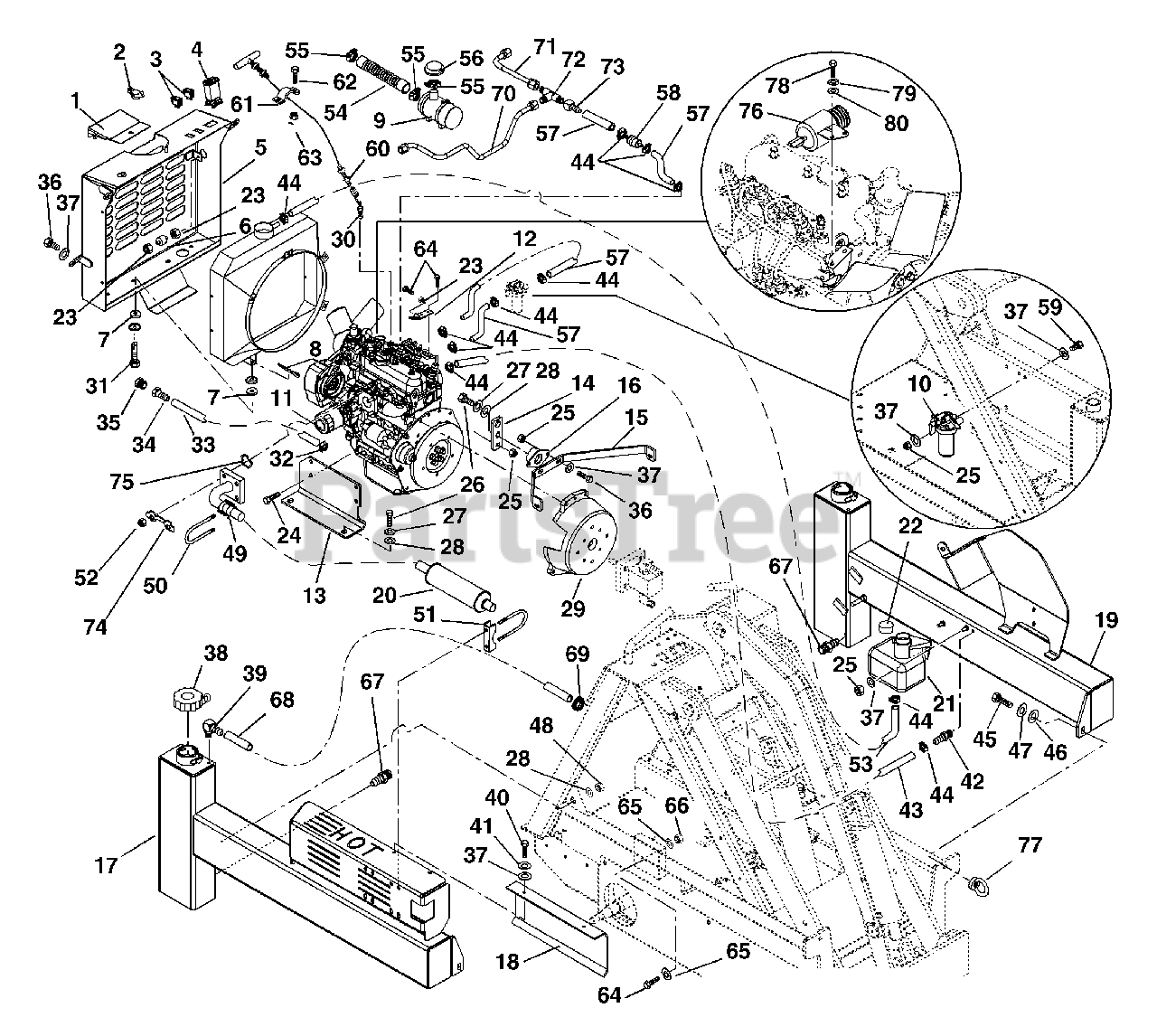

950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Engine And Fuel - Diesel Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Engine And Fuel - Diesel Parts Diagram

  • Title

1

Gravely 05050450

Cover, Radiator Cap

$

$

Not available

2

Gravely 07531700

Knob, Hand
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 08841200

Light Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

4

Gravely 03492700

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 05052850

Guard, Radiator

$

$

Not available

6

Gravely 07060800

Mount, Stud/Plate

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 07532500

Isolator

$

$

Not available

8

Gravely 08263100

Engine, Kubota (D722B-1 (REP))

Note: (D722B-1 (REP))

$

$

Not available

9

Gravely 05037500

Filter, Air-Diesel

$

$

Not available

10

Gravely 05056200

Filter, Fuel-Kubota Diesel

$

$

Not available

11

Gravely 05056300

Filter, Oil-Kubota Diesel

$

$

Not available

12

Gravely 05057051

Bracket, Throttle Cable

$

$

Not available

13

Gravely 05050751

Mount, Engine Right Hand Diesel

$

$

Not available

13

Gravely 05050851

Mount, Engine Left Hand Diesel

$

$

Not available

14

Gravely 05050951

Plate, Tie

$

$

Not available

15

Gravely 05056750

Bracket, Upper Engine

$

$

Not available

16

Gravely 05034800

Mount, Engine

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05042750

Tank, Fuel Diesel Right Hand

$

$

Not available

18

Gravely 05052750

Bracket, Muffler

$

$

Not available

19

Gravely 05042650

Tank, Fuel Diesel Left Hand

$

$

Not available

20

Gravely 05049700

Muffler

$

$

Not available

21

Gravely 09032400

Tank, Plastic 1.5 Quart

$

$

Not available

22

Gravely 08967800

Cap, 1.62 Vented

$

$

Not available

23

Gravely 06539800

Nut-Hex M6 x 1.0
(Superseded to 06500925)

$

$

Not available

24

Gravely 05960500

Bolt, Hex M10-1.25 x 20

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

26

Gravely 05975000

Bolt-Hex .50-20X1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

27

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

28

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05048400

Housing, Bell Kubota Assembly

$

$

Not available

30

Gravely 03604100

Swivel Assembly

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 05976400

Bolt,Hex M10-1.25X40 with Lock Hole

$

$

Not available

32

Gravely 06922100

Clamp-Hose Worm .44/.78 x .53

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 05047600

Hose, Oil Drain

$

$

Not available

34

Gravely 07060600

Adapter, Female Swivel .75-16F

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 07060700

Plug, Hose Swivel .75-16M

$

$

Not available

36

Gravely 05973300

Bolt-Hex M8-1.25 x 20
(Superseded to 05901628)

$

$

Not available

37

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05042800

Cap, Fuel Tank

$

$

Not available

39

Gravely 07057500

Fitting, Barbed 90 Degree Elbow .125-27M x .25 I.D. Hose

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 05956300

Bolt-Hex M8 X 1.25 x 16

$

$

Not available

41

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 07057400

Fitting, Barbed .125-27M x .250 I.D. Hose

$

$

Not available

43

Gravely 00924300

Gas Line-Bulk 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

45

Gravely 05955200

Bolt M10 x 1.5 x 40

$

$

Not available

46

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

48

Gravely 06542500

Nut-Locking-Nylon M12-1.75

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 05049800

Pipe, Exhaust

$

$

Not available

50

Gravely 06922300

Clamp, Muffler U-Bolt

$

$

Not available

51

Gravely 06946200

Clamp, Muffler 3.50

$

$

Not available

52

Gravely 06538600

Nut-Hex M8-1.25

$

$

Not available

53

Gravely 00922600

Hose,5/16 I.D.

$

$

Not available

54

Gravely 05037300

Hose, Flexible

$

$

Not available

55

Gravely 06923600

Clamp, 2.25 Diameter Hose

$6.49

$

Usually ships in 4-12 days

0

56

Gravely 05037600

Filter, Pre Diesel

$

$

Not available

57

Gravely 00922600

Hose, .312 I.D.

$

$

Not available

58

Gravely 05050300

Filter, Fuel .312 I.D. Hose

$20.99

$

Usually ships in 4-12 days

0

59

Gravely 05975300

Bolt-Hex M8-1.25 x 65

$

$

Not available

60

Gravely 06945900

Cable, Throttle-Diesel

$

$

Not available

61

Gravely 05049600

Clamp, Cable

$

$

Not available

62

Gravely 05975800

Bolt-Hex M5-.8 x 16

$

$

Not available

63

Gravely 06543000

Nut-Locking-Nylon M5 .8

$

$

Not available

64

Gravely 05972000

Bolt-Hex M6-1.0 x 25

$

$

Not available

65

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 06542600

Nut-Locking-Nylon M6-1

$

$

Not available

67

Gravely 07059400

Adapter, Male Connector .562-19M x .125-27M

$3.49

$

Usually ships in 4-12 days

0

68

Gravely 00924300

Gas Line-Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

69

Gravely 07506400

Grommet

$5.99

$

Usually ships in 4-12 days

0

70

Gravely 05058000

Tube-Fuel Line Long

$

$

Not available

71

Gravely 05058100

Tube-Fuel Line Short

$

$

Not available

72

Gravely 07021500

Adapter-Tee .56-18

$30.99

$

Usually ships in 4-12 days

0

73

Gravely 07057200

Fitting-Hose .375-M6

$5.99

$

Usually ships in 4-12 days

0

74

Gravely 05000151

Bracket, Lock

$

$

Not available

75

Gravely 07061200

Washer, Wave

$

$

Not available

76

Gravely 05056400

Solenoid

$

$

Not available

77

Gravely 07064700

Nut, Eye M10-1.5

$

$

Not available

78

Gravely 05975900

Bolt-Hex M6-1 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

79

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

80

Gravely 06435800

Washer-Flat-Steel.312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
