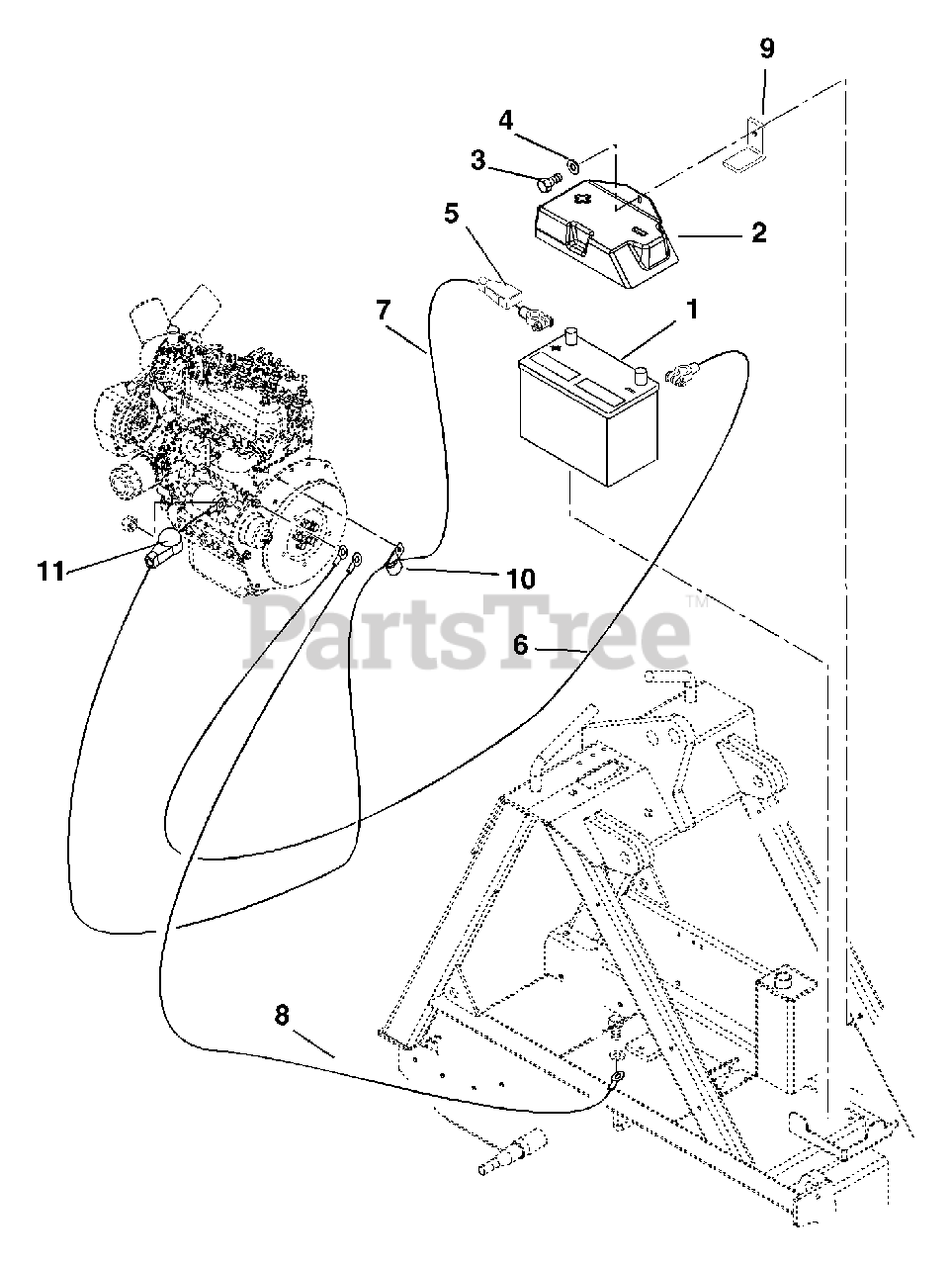

950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Battery And Electrical - Diesel Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Battery And Electrical - Diesel Parts Diagram

  • Title

1

Gravely 05047500

Battery

$

$

Not available

2

Gravely 05042300

Cover-Battery

$

$

Not available

3

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16

$

$

Not available

4

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 034466

Cover,Battery Terminal
(Superseded to 07523100)

$

$

Not available

6

Gravely 05042100

Cable-Battery Positive

$

$

Not available

7

Gravely 05042000

Cable-Battery Negative

$

$

Not available

8

Gravely 05041800

Wire-Ground

$

$

Not available

9

Gravely 05046151

Bracket, Battery Holddown

$

$

Not available

10

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

11

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0
