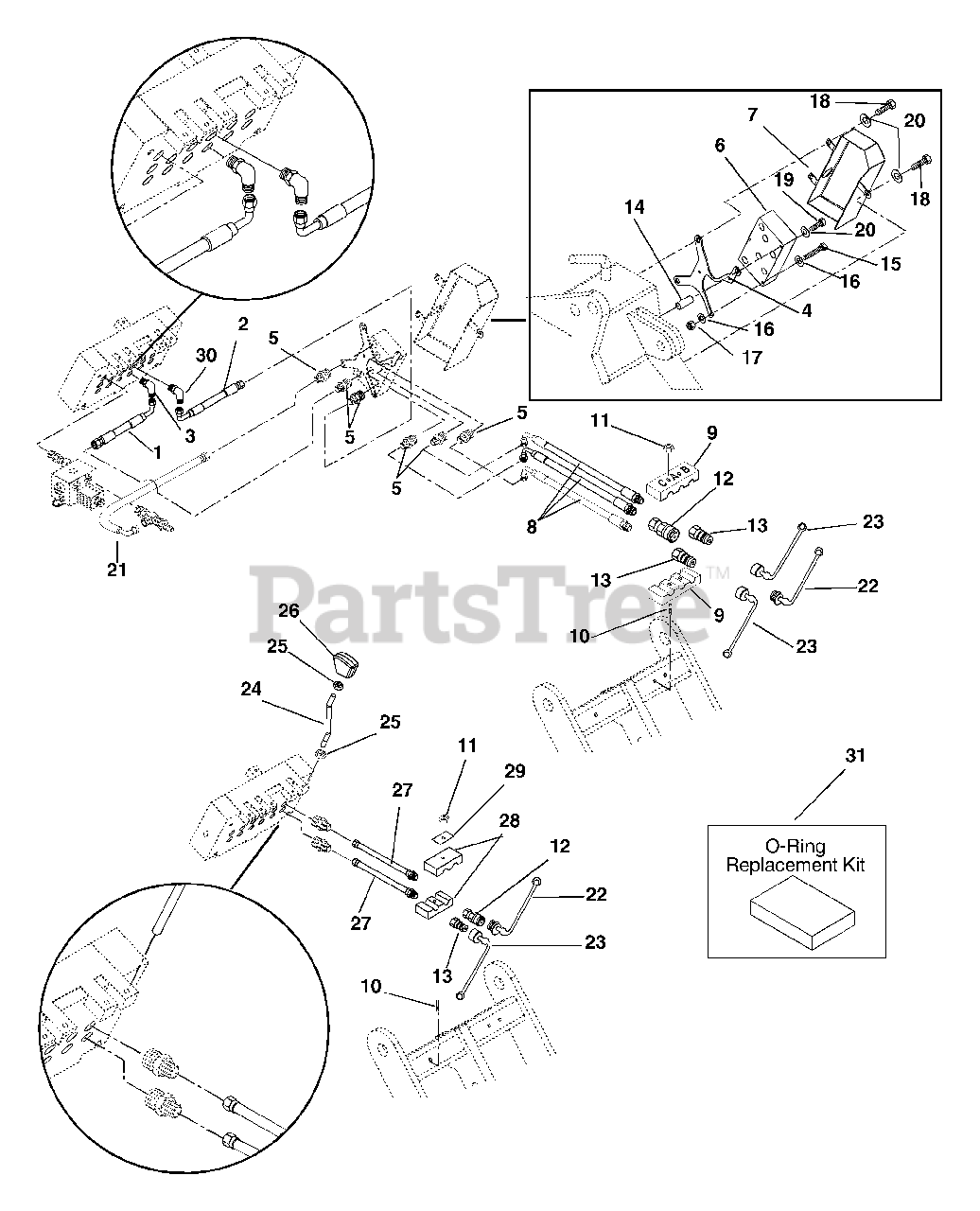

950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 - 000199) Valve Bank To Trencher And 4 N 1 Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Valve Bank To Trencher And 4 N 1 Parts Diagram

  • Title

1

Gravely 05052400

Hose, Auxiliary To Trencher Valve

$

$

Not available

2

Gravely 05052300

Hose, Auxiliary To Trencher Valve

$

$

Not available

3

Gravely 07062900

Fitting, Hydraulic Elbow

$

$

Not available

4

Gravely 05044950

Bracket-Trencher Valve

$

$

Not available

5

Gravely 07059900

Adapter, Face Seal 8 x 8 1/2 O-Ring

$9.49

$

In Stock, only 4 left!

0

6

Gravely 05044700

Valve-Trencher Control

$

$

Not available

7

Gravely 05041551

Guard-Heat

$

$

Not available

8

Gravely 05051300

Hose, Hydraulic Trencher Valve

$

$

Not available

9

Gravely 06945000

Clamp-Hydraulic .500 I.D. 3 Hose

$

$

Not available

10

Gravely 07008800

Stud, M8-1.25 x 3.62"

$

$

Not available

11

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 07060900

Coupling, Female Quick

$

$

Not available

13

Gravely 07061000

Coupling, Male Quick

$

$

Not available

14

Gravely 05044850

Spacer .344 x .750 x 1.500

$

$

Not available

15

Gravely 05975200

Bolt-Hex M6-1x65

$

$

Not available

16

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06542600

Nut-Locking-Nylon M6-1

$

$

Not available

18

Gravely 05973300

Bolt-Hex M8-1.25 x 20
(Superseded to 05901628)

$

$

Not available

19

Gravely 05975300

Bolt-Hex M8-1.25 x 65

$

$

Not available

20

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05052500

Hose, Trencher Valve Return

$

$

Not available

22

Gravely 07058900

Plug-Dust

$

$

Not available

23

Gravely 07059000

Cap-Dust

$

$

Not available

24

Gravely 05054400

Lever, 4 N 1 Bucket Control

$

$

Not available

25

Gravely 06542700

Nut, Jam M8-1.25

$

$

Not available

26

Gravely 07533100

Knob, Control

$

$

Not available

27

Gravely 05051400

Hose, Hydraulic 4 N 1 Bucket

$

$

Not available

28

Gravely 06943900

Clamp-Dual Hose .500 I.D. Hose

$

$

Not available

29

Gravely 07059100

Plate-Cover

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 07063000

Fitting, Hydraulic Elbow

$

$

Not available

31

Gravely 00046900

Assorted O-Rings

Note: For Hydraulic Components to fittings SAE

$

$

Not available

31

Gravely 00047000

Assorted O-Rings

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
