950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 - 000199) Frame Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

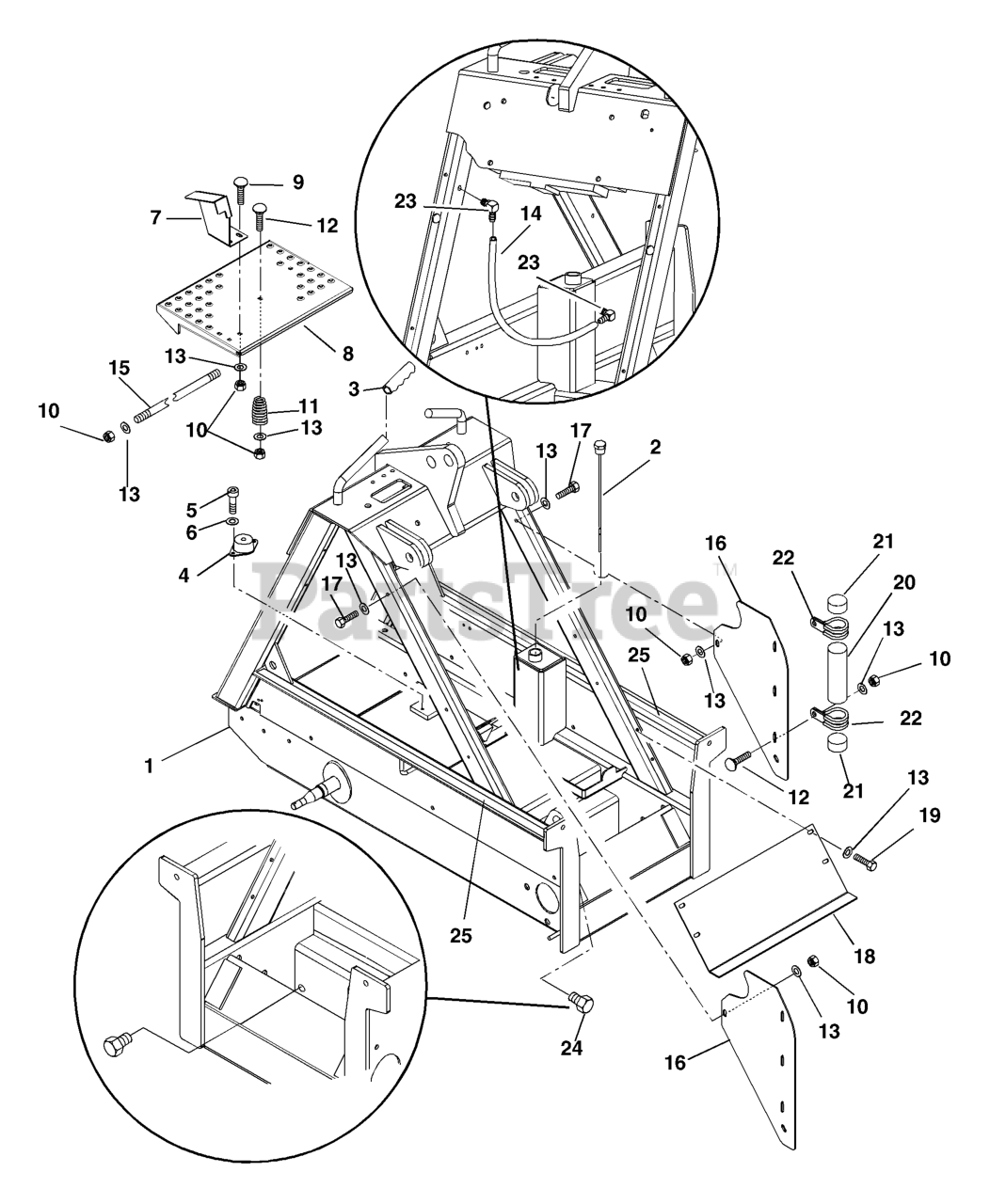

Frame Parts Diagram

  • Title

1

Gravely 05043050

Chassis

$

$

Not available

2

Gravely 05050100

Dipstick

$

$

Not available

3

Gravely 07531100

Grip-Handle

$

$

Not available

4

Gravely 05034800

Mount-Engine

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 05975700

Screw-Socket Head M8-1.25 x 12

$

$

Not available

6

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05041051

Bracket-Hydraulic Stop

$

$

Not available

8

Gravely 05043551

Grate-Floor Weldment

$

$

Not available

9

Gravely 06226000

Bolt-Round Head Square Neck M8-1.25 x 20

$

$

Not available

10

Gravely 06541700

Nut-Hex Locking Flange M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 08336200

Spring-Compression

$

$

Not available

12

Gravely 06226100

Bolt-Round Head Square Neck M8-1.25 x 25

$

$

Not available

13

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 021134

Line-Gas
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05045200

Rod-Pivot

$

$

Not available

16

Gravely 05054550

Guard-Pinch

$

$

Not available

17

Gravely 05976500

Bolt, Hex M8-1.25 x 60

$

$

Not available

18

Gravely 05034250

Plate-Inspection

$

$

Not available

19

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16

$

$

Not available

20

Gravely 09305800

Tube-Instruction

$

$

Not available

21

Gravely 09305900

End-Cap Instruction Tube

$

$

Not available

22

Gravely 06939900

Clamp-2.00 Diameter with .406 Hole

$

$

Not available

23

Gravely 07057500

Fitting-Barbed 90 Degree Elbow .125-27M x .25 I.D. Hose

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 07055200

Plug, Drain .75-14

$

$

Not available

25

Gravely 00916400

Gasket-Foam with Adhesive Back 1" x 50' x .25"
(Superseded to 02072000)

$

$

Not available
