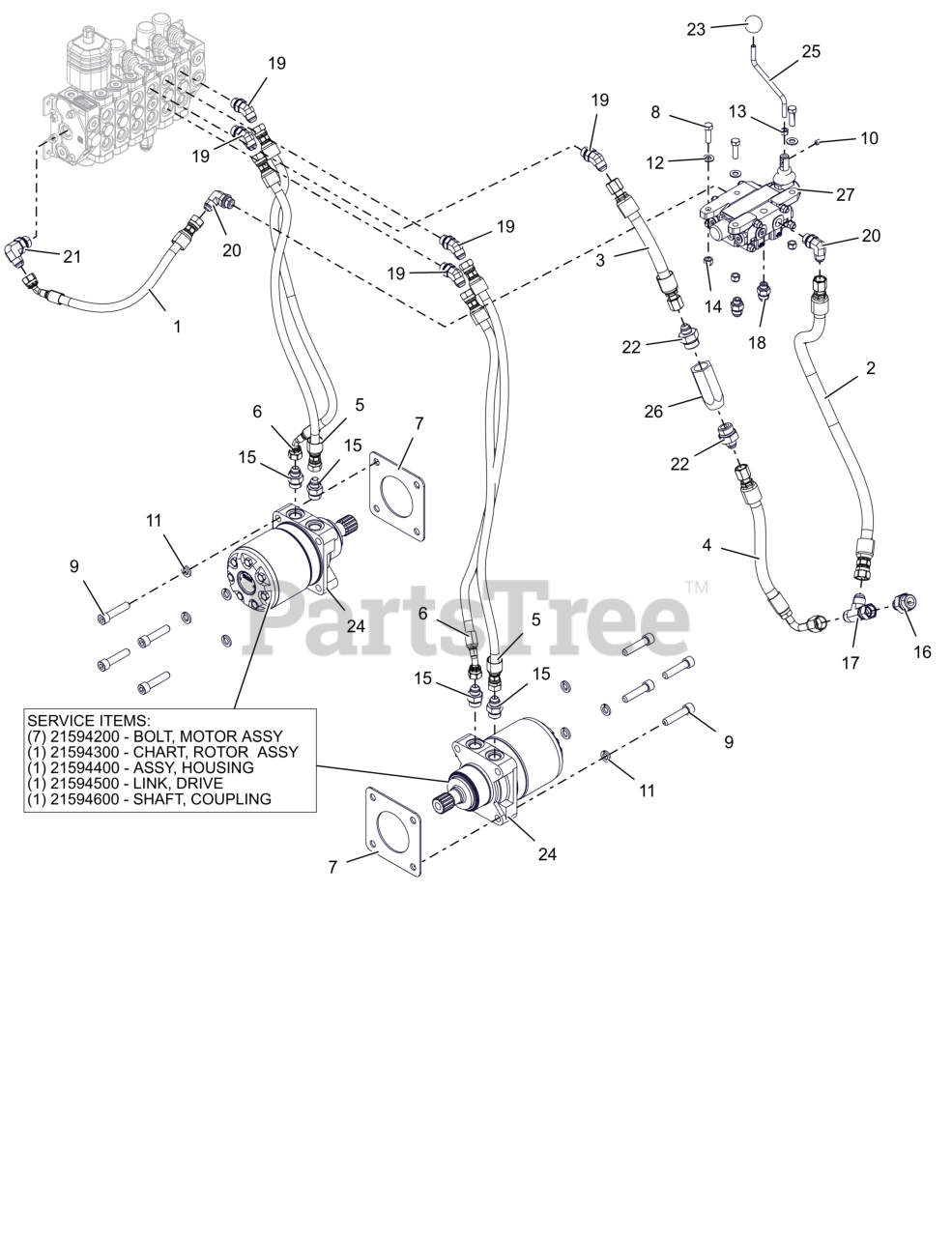

950012 (Axis 200 DW) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000900 & Above) Hydraulic Motor and Auxiliary Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

Hydraulic Motor and Auxiliary Parts Diagram

  • Title

1

Gravely 30102600

HOSE, HYD .375" X 17.75" LG

$

$

Currently unavailable

2

Gravely 30103000

HOSE, HYD .500" X 31.50" LG

$

$

Currently unavailable

3

Gravely 30103400

HOSE, HYD .500" X 10.50" LG

$

$

Currently unavailable

4

Gravely 30103500

HOSE, HYD .500" X 16.00" LG

$

$

Currently unavailable

5

Gravely 30233700

HOSE, HYD FJIC-8-6 FJIC-8-6 32

$

$

Currently unavailable

6

Gravely 30233800

HOSE, HYD 45FJIC-8-6 FJIC-8-6 31

$

$

Currently unavailable

7

Gravely 05600527

GASKET, MOTOR HYD

$

$

Currently unavailable

8

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05902136

SCR, SKH .500-13X2.250 GR8 ZCC

$

$

Currently unavailable

10

Gravely 06000230

SCR-SET, 1.50-6X1.500 CUP

$

$

Currently unavailable

11

Gravely 06300128

WSHR,LK-REG 0.502 X 0.125 ZCC

$

$

Currently unavailable

12

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500724

NUT, HEX M8-1.25 G8.8 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07002039

FITTING, HYDRAULIC 6400 8-10

$

$

Currently unavailable

16

Gravely 07002101

FITTING, HYDRAULIC 6400 10-12

$

$

Currently unavailable

17

Gravely 07002103

FITTING, HYDRAULIC 6602 10-10-10

$

$

Currently unavailable

18

Gravely 07002110

FITTING, HYDRAULIC 6400 8-6

$

$

Currently unavailable

19

Gravely 07002111

FITTING, HYDRAULIC - 6802 8-8

$

$

Currently unavailable

20

Gravely 07002117

FITTING, HYDRAULIC 6801 8-8

$

$

Currently unavailable

21

Gravely 07002237

FITTING, HYDRAULIC - 6801 8-10

$

$

Currently unavailable

22

Gravely 07043800

ADAPTER, 8MJ-12MB

$

$

Not available

23

Gravely 07500526

KNOB, BALL -.312" PRESS ON

$

$

Currently unavailable

24

Gravely 30101100

MOTOR, HYDRAULIC

$

$

Currently unavailable

24

Gravely 21594200

BOLT, MOTOR ASSY

Note: Component Service Part

$

$

Currently unavailable

24

Gravely 21594300

CHART, ROTOR ASSY

Note: Component Service Part

$

$

Currently unavailable

24

Gravely 21594400

ASSY, HOUSING

Note: Component Service Part

$

$

Currently unavailable

24

Gravely 21594500

LINK, DRIVE

Note: Component Service Part

$

$

Currently unavailable

24

Gravely 21594600

SHAFT, COUPLING

Note: Component Service Part

$

$

Currently unavailable

25

Gravely 30113400

LEVER, AUXILIARY

$

$

Currently unavailable

26

Gravely 30136800

VALVE, HYD -CHECK 72 PSI

$

$

Currently unavailable

27

Gravely 30157000

VALVE, CONTROL - AUX

$

$

Currently unavailable
