950012 (Axis 200 DW) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) Wheels Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

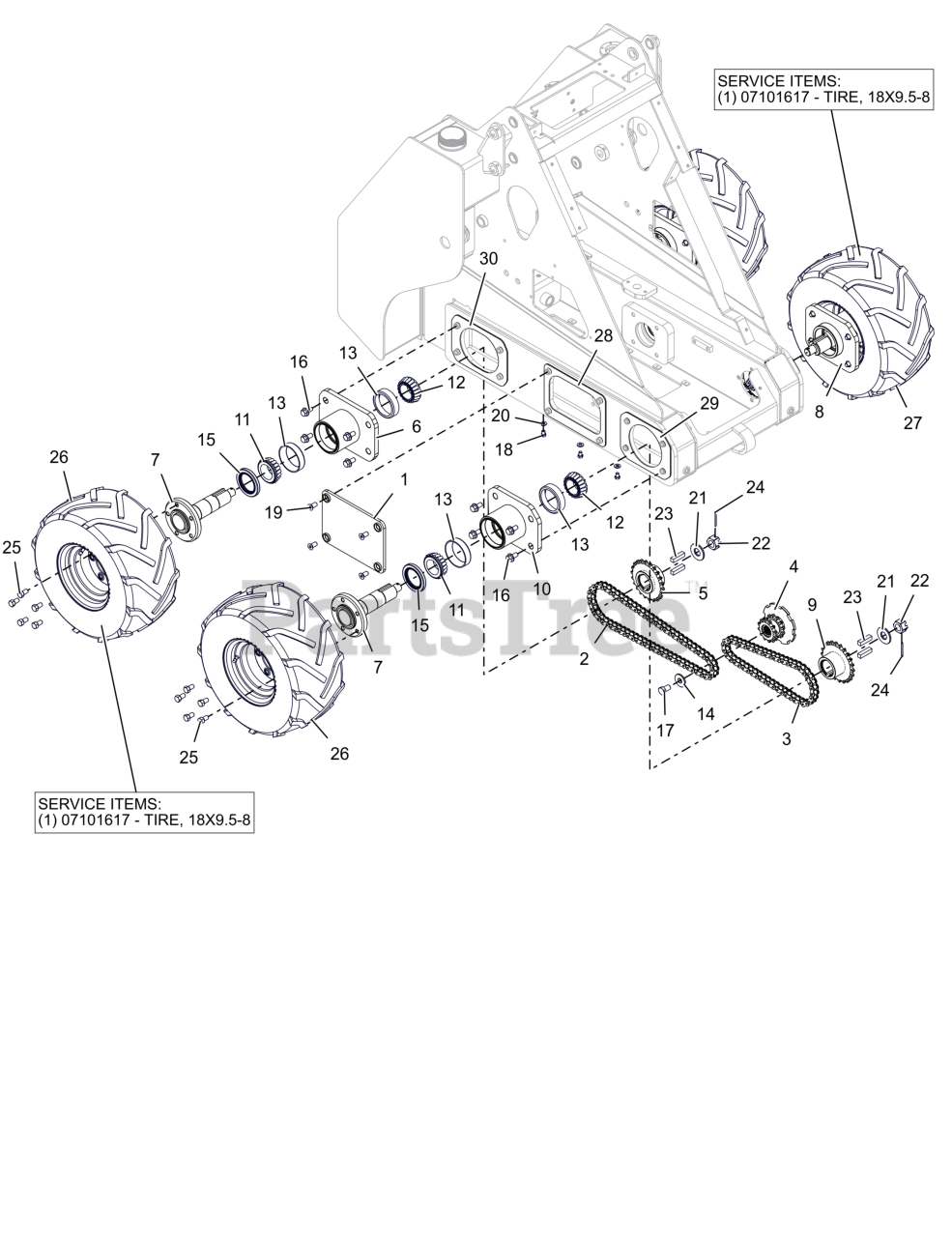

Wheels Parts Diagram

  • Title

1

Gravely 30107953

COVER, TRANSMISSION (RED)

$

$

Currently unavailable

2

Gravely 30108200

CHAIN, ROLLER -RS60HT 64 PITCH

$

$

Currently unavailable

3

Gravely 30108300

CHAIN, ROLLER -RS60HT 48 PITCH

$

$

Currently unavailable

4

Gravely 30108400

SPROCKET, DRIVE - DW

$

$

Currently unavailable

5

Gravely 30111100

SPROCKET, DRIVEN -REAR #60 22T

$

$

Currently unavailable

6

Gravely 30111253

WLDMT, HUB -REAR WHEEL

$

$

Currently unavailable

7

Gravely 30111353

WLDMT, AXLE - WHEEL

$

$

Currently unavailable

8

Gravely 30111453

WLDMT, HUB -FRONT LH WHEEL

$

$

Currently unavailable

9

Gravely 30111500

SPROCKET, DRIVEN -FRONT #60 22T

$

$

Currently unavailable

10

Gravely 30112953

WLDMT, HUB -FRONT RH WHEEL

$

$

Currently unavailable

11

Gravely 05400806

BRG, CONE 2.063 X 1.193

$129.99

$

Usually ships in 4-12 days

0

12

Gravely 05400807

BRG, CONE 2.000 X 1.193

$116.99

$

Usually ships in 4-12 days

0

13

Gravely 05400808

BRG, CUP 3.672 X .938

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 05501524

SPCR, FLANGE

$

$

Currently unavailable

15

Gravely 05600530

SEAL, OIL - 2.50X3.756X.500

$

$

Currently unavailable

16

Gravely 05902131

BLT, HEX-FLG 0.5-13X1 GR8 ZCC

$

$

Currently unavailable

17

Gravely 05902135

BLT, HEX 0.625-18X1 GR5 ZCC

$

$

Currently unavailable

18

Gravely 05967000

@BLT-HEX .38-16X.50 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06100316

SCR, MCH .50-13X1.00 SFH ZCC

$

$

Currently unavailable

20

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06401226

WSHR, FLAT - HRD 1.01X2.25X.19

$

$

Currently unavailable

22

Gravely 06501019

NUT, SLOTTED-1.00-14

$

$

Currently unavailable

23

Gravely 06600232

KEY-SQ - .500x2.000

$

$

Currently unavailable

24

Gravely 06702500

PIN, CTR .18X2.00 EXTPRSQCT ZCC

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 07001825

BLT-LUG .50-20X1.268 ZCC

$13.99

$

In Stock, only 3 left!

0

26

Gravely 07101525

ASSM TIRE\WHEEL, BAR 18X 9.5 - 8 RH

$

$

Currently unavailable

26

Gravely 07101617

TIRE, BAR 18X9.5 - 8 K357

Note: Component Service Part

$

$

Currently unavailable

27

Gravely 07101531

ASSM TIRE\WHEEL, BAR 18X 9.5 - 8 LH

$

$

Not available

28

Gravely 05600524

GASKET, ACCESS TRANSMISSION

$

$

Currently unavailable

29

Gravely 05600525

GASKET, FRONT TRANSMISSION

$

$

Currently unavailable

30

Gravely 05600526

GASKET, REAR TRANSMISSION

$

$

Currently unavailable
