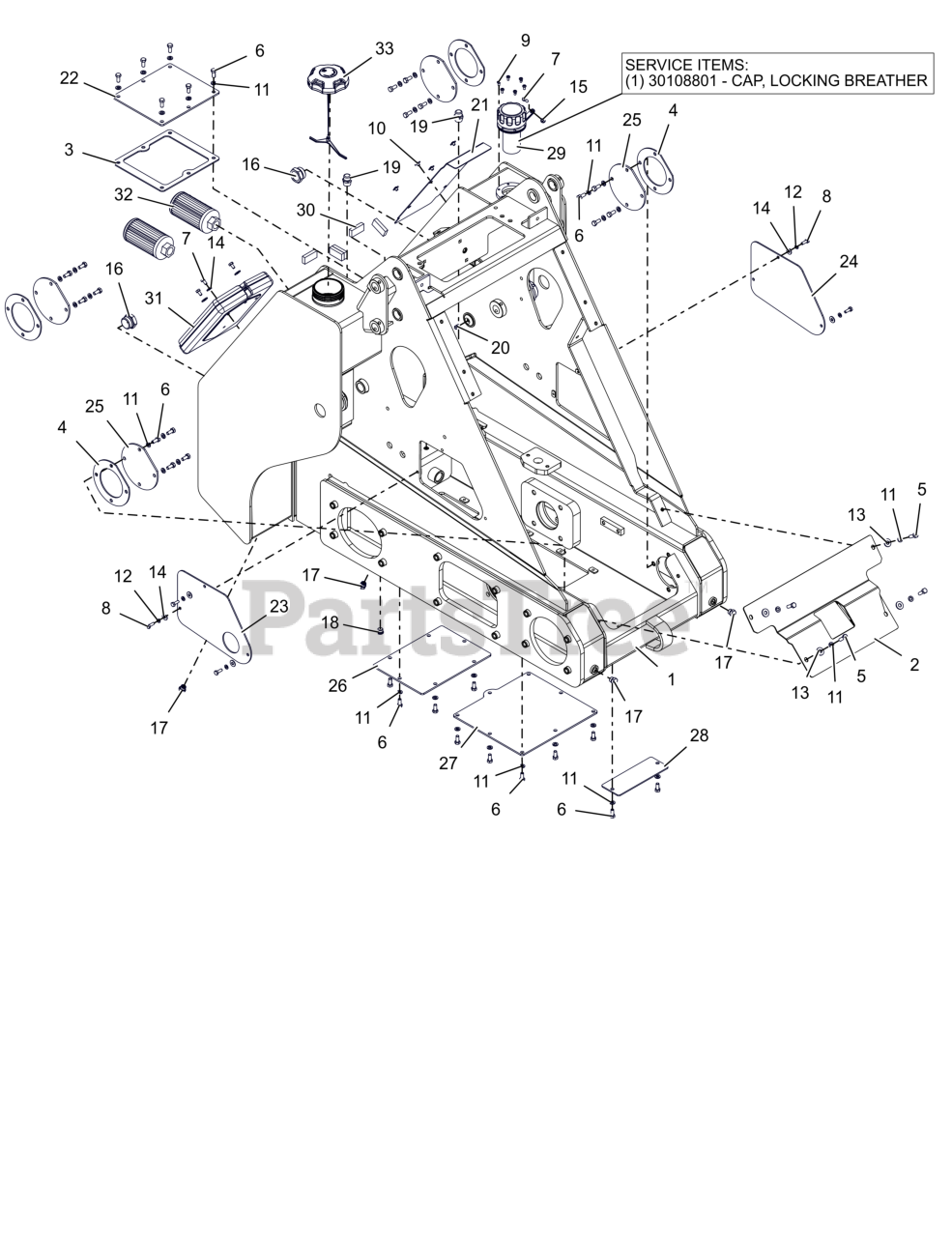

950012 (Axis 200 DW) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) Frame Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

Frame Parts Diagram

  • Title

1

Gravely 55001400

FRAME, MAIN - W/SAFETY DECALS

$

$

Currently unavailable

2

Gravely 30117551

COVER, FRONT - BATTERY

$

$

Currently unavailable

3

Gravely 05600528

GASKET, OIL TANK

$

$

Currently unavailable

4

Gravely 05600529

GASKET, AXLE COVER

$

$

Currently unavailable

5

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05902137

SCR, MCH 10-32 X .375 PH ZCC

$

$

Currently unavailable

10

Gravely 06100317

SCR,BTNHD .25-20X.50 ZCC

$

$

Currently unavailable

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500832

NUT,NYL .25-20 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 07002036

WINDOW, SIGHT - FLUID LEVEL

$

$

Currently unavailable

17

Gravely 07002121

PLUG, HEX - .56 ORB

$

$

Currently unavailable

18

Gravely 07002122

PLUG, HEX - CSK .56 ORB

$

$

Currently unavailable

19

Gravely 07002216

PLUG, VENT

$

$

Currently unavailable

20

Gravely 07023700

PLUG,PIPE .12 SQ HD UNFIN STL

$

$

Not available

21

Gravely 30106253

COVER, FILTER (RED)

$

$

Currently unavailable

22

Gravely 30106353

COVER, OIL TANK (RED)

$

$

Currently unavailable

23

Gravely 30106453

COVER, SIDE RH (RED)

$

$

Currently unavailable

24

Gravely 30106553

COVER, SIDE - LH (RED)

$

$

Currently unavailable

25

Gravely 30106653

COVER, AXLE TRANSMISSION (RED)

$

$

Currently unavailable

26

Gravely 30106751

COVER, ACCESS REAR (BLACK)

$

$

Currently unavailable

27

Gravely 30106851

COVER, ACCESS CENTER (BLACK)

$

$

Currently unavailable

28

Gravely 30106951

COVER, ACCESS FRONT (BLACK)

$

$

Currently unavailable

29

Gravely 30108800

BREATHER, LOCKING

$

$

Currently unavailable

34

Gravely 30108801

CAP, LOCKING BREATHER

Note: Component Service Part

$

$

Currently unavailable

30

Gravely 30113600

MAGNET, HYD - OIL TANK

$

$

Currently unavailable

31

Gravely 30147200

BOX, MANUAL

$

$

Currently unavailable

32

Gravely 30147300

FILTER, HYD - INTAKE .75 NPT

$

$

Currently unavailable

33

Gravely 30177300

CAP, DIESEL FUEL 3.5"

$

$

Currently unavailable
