950012 (Axis 200 DW) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) 30101100-Parker Wheel Motor/TG Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

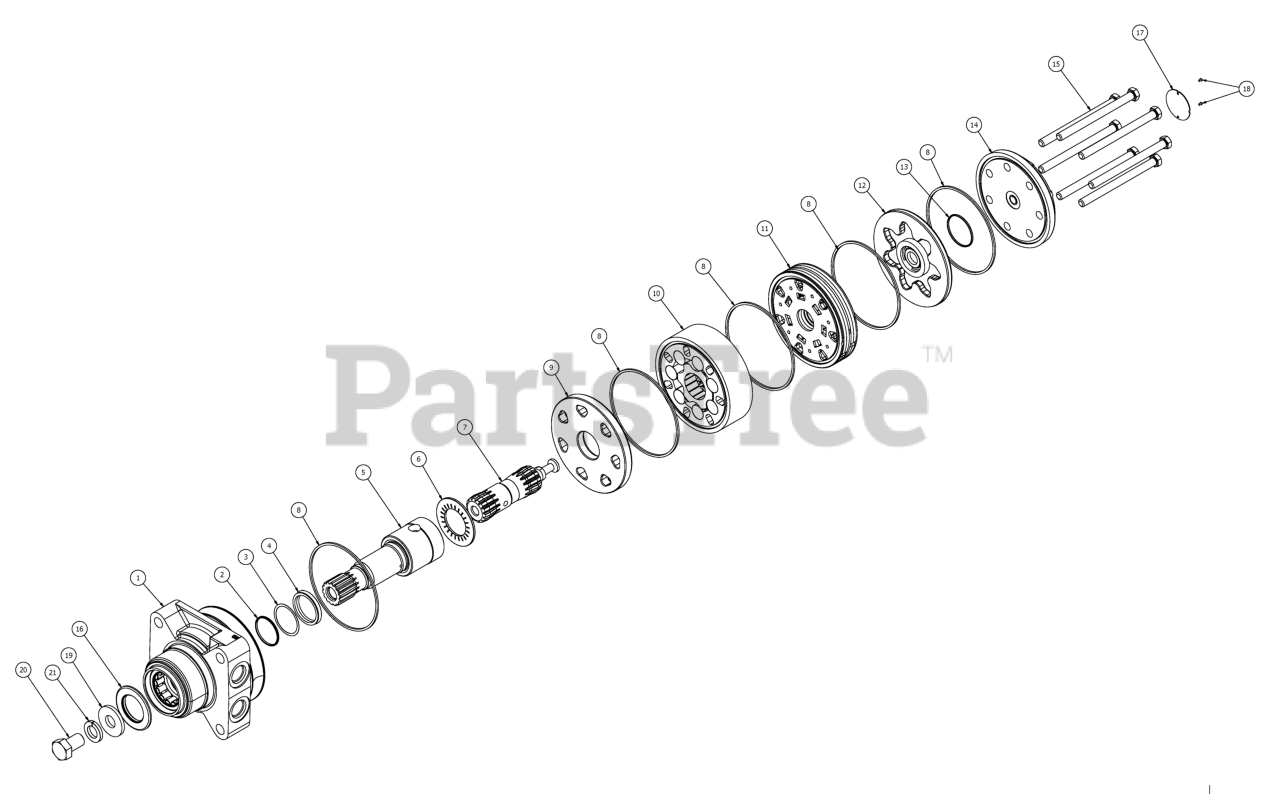

30101100-Parker Wheel Motor/TG Parts Diagram

  • Title

1

Gravely 21594400

ASSY, HOUSING

$

$

Currently unavailable

2

Gravely 21579000

BACK UP RING

Note: Included in Seal Kit 21560100

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 21579100

BACK UP WASHER

Note: Included in Seal Kit 21560100

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 21579200

SHAFT SEAL

Note: Included in Seal Kit 21560100

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 21594600

SHAFT, COUPLING

$

$

Currently unavailable

6

Gravely 21577600

THRUST BEARING

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 21594500

LINK, DRIVE

$

$

Currently unavailable

8

Gravely 21577800

SEAL RING

Note: Included in Seal Kit 21560100

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 21577900

WEAR PLATE

$136.99

$

Usually ships in 4-12 days

0

10

Gravely 21594300

CHART, ROTOR ASSY

$

$

Currently unavailable

11

Gravely 21578200

MANIFOLD (CW)

$224.99

$

Usually ships in 4-12 days

0

12

Gravely 21578300

COMMUTATOR ASSM

$62.99

$

Usually ships in 4-12 days

0

13

Gravely 21578400

COMMUTATOR SEAL

Note: Included in Seal Kit 21560100

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 21578500

END COVER

$91.99

$

Usually ships in 4-12 days

0

15

Gravely 21594200

BOLT, MOTOR ASSY

$

$

Currently unavailable

16

Gravely 21578700

DIRT AND WATER SEAL

Note: Included in Seal Kit 21560100

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 21578800

IDENTIFICATION TAG

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 21578900

RIVET

$1.49

$

Usually ships in 4-12 days

0

NS

Gravely 21560100

SEAL KIT

Note: Includes 2-4, 8, 13 & 16

$68.99

$

Usually ships in 4-12 days

0
