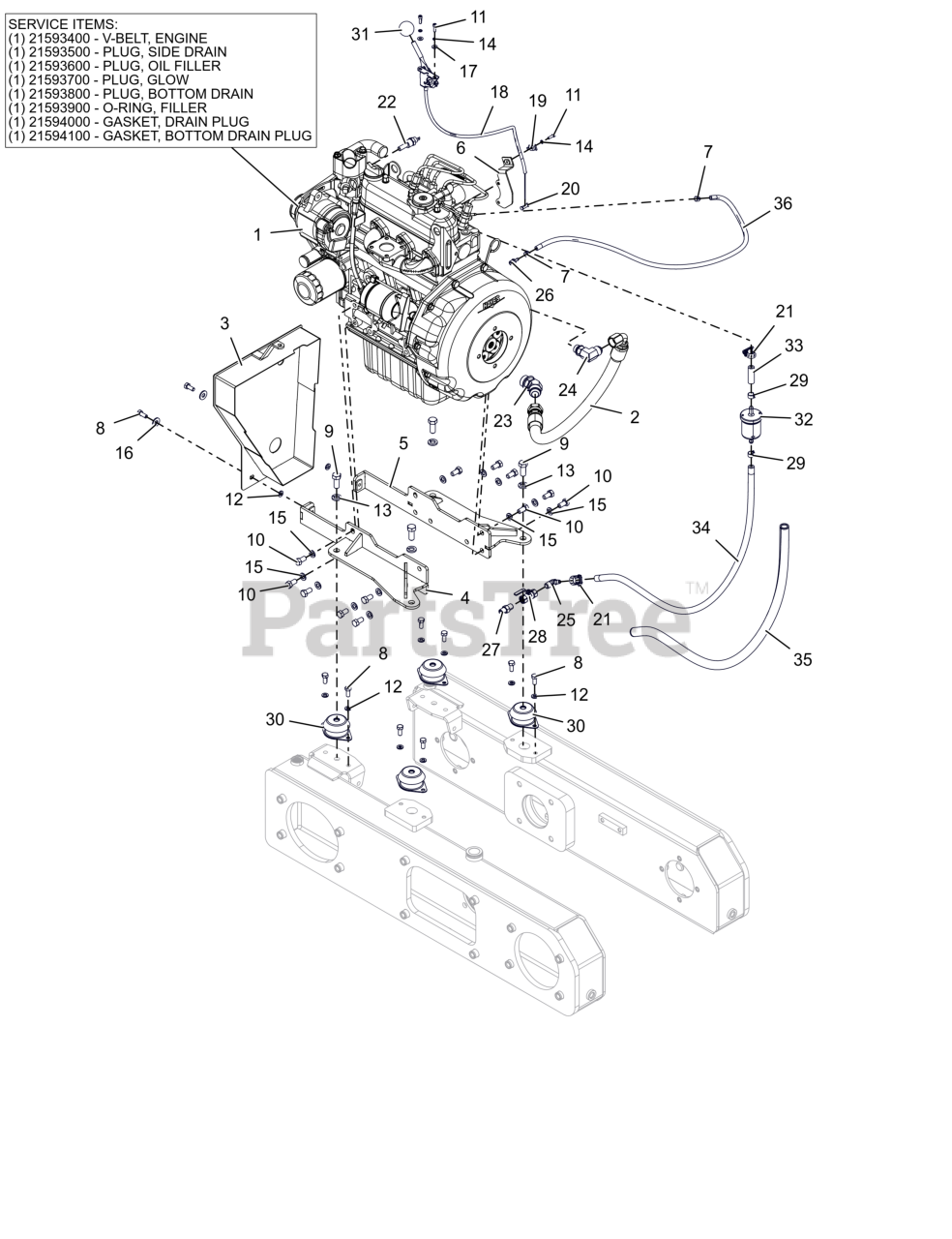

950011 (Axis 200 DTN) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) Engine Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

Engine Parts Diagram

  • Title

1

Gravely 08201504

ENGINE, KUBOTA-D1105

$

$

Currently unavailable

1

Gravely 21593400

V-BELT ENGINE

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21593500

PLUG, SIDE DRAIN

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21593600

PLUG, OIL FILLER

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21593700

PLUG, GLOW

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21593800

PLUG, BOTTOM DRAIN

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21593900

O-RING, OIL FILLER

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21594000

GASKET, SIDE DRAIN PLUG

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21594100

GASKET, BOTTOM DRAIN PLUG

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 30101900

HOSE, HYD .625" X 45.00" LG

$

$

Currently unavailable

3

Gravely 30107751

COVER, ENGINE (BLACK)

$

$

Currently unavailable

4

Gravely 30115251

MOUNT, ENGINE - RH (BLACK)

$

$

Currently unavailable

5

Gravely 30115351

MOUNT, ENGINE - LH (BLACK)

$

$

Currently unavailable

6

Gravely 30115551

MOUNT, CABLE (BLACK)

$

$

Currently unavailable

7

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

8

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05952900

BLT-BRAKE, M12 X 1.75X30

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05960500

BLT-HEX M10 X 1.25X20 YWZC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06100322

SCR, SKH 10-32X.625 GR5 ZCC

$

$

Currently unavailable

12

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06300128

WSHR,LK-REG 0.502 X 0.125 ZCC

$

$

Currently unavailable

14

Gravely 06308100

@WSHR-LK #10X.047 REG YWZC

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 06318300

WSHR,LK-M10 ZCC

$

$

Currently unavailable

16

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06401123

WSHR, FLT .219X.500X.049 ZCC

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06900736

CABLE, THROTTLE

$

$

Currently unavailable

19

Gravely 06900801

CLAMP, CABLE

$

$

Currently unavailable

20

Gravely 06900802

SWIVEL, CABLE

$

$

Currently unavailable

21

Gravely 06922100

CLAMP-HOSE WRM .44/.78X.53 F06

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 07002035

SWITCH, TEMPERATURE

$

$

Currently unavailable

23

Gravely 07002115

FITTING, HYDRAULIC 6802 12-12

$

$

Currently unavailable

24

Gravely 07002127

FITTING, HYDRAULIC 9059 08-10

$

$

Currently unavailable

25

Gravely 07002128

ELBOW, FUEL - .25NPTX.312 HOSE

$

$

Currently unavailable

26

Gravely 07002129

ADAPTOR, FUEL - .13NPTX.19 HOSE

$

$

Currently unavailable

27

Gravely 07002130

FITTING, HYDRAULIC 5404 04-04

$

$

Currently unavailable

28

Gravely 07002131

VALVE, BALL - .25" NPT

$

$

Currently unavailable

29

Gravely 07002302

CLAMP, HOSE SPRING .313

$

$

Currently unavailable

30

Gravely 07500528

ISOLATOR, ENGINE

$

$

Currently unavailable

31

Gravely 07500534

KNOB, BALL -.375-24

$

$

Currently unavailable

32

Gravely 30152600

FILTER, FUEL

$

$

Currently unavailable

33

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

Note: Sold By the Inch Approximately 2 Inches

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

Note: Sold By the Inch Approximately 24 Inches

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 00982300

SPLIT TUBING-22"

Note: Sold By the Inch Approximately 22 Inches

$

$

Currently unavailable

36

Gravely 04745900

HOSE, .188 30R7 BULK

Note: Sold By the Inch Approximately 30 Inches

$

$

Not available
