950010 (Axis 200 DT) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) Tracks - Wide Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

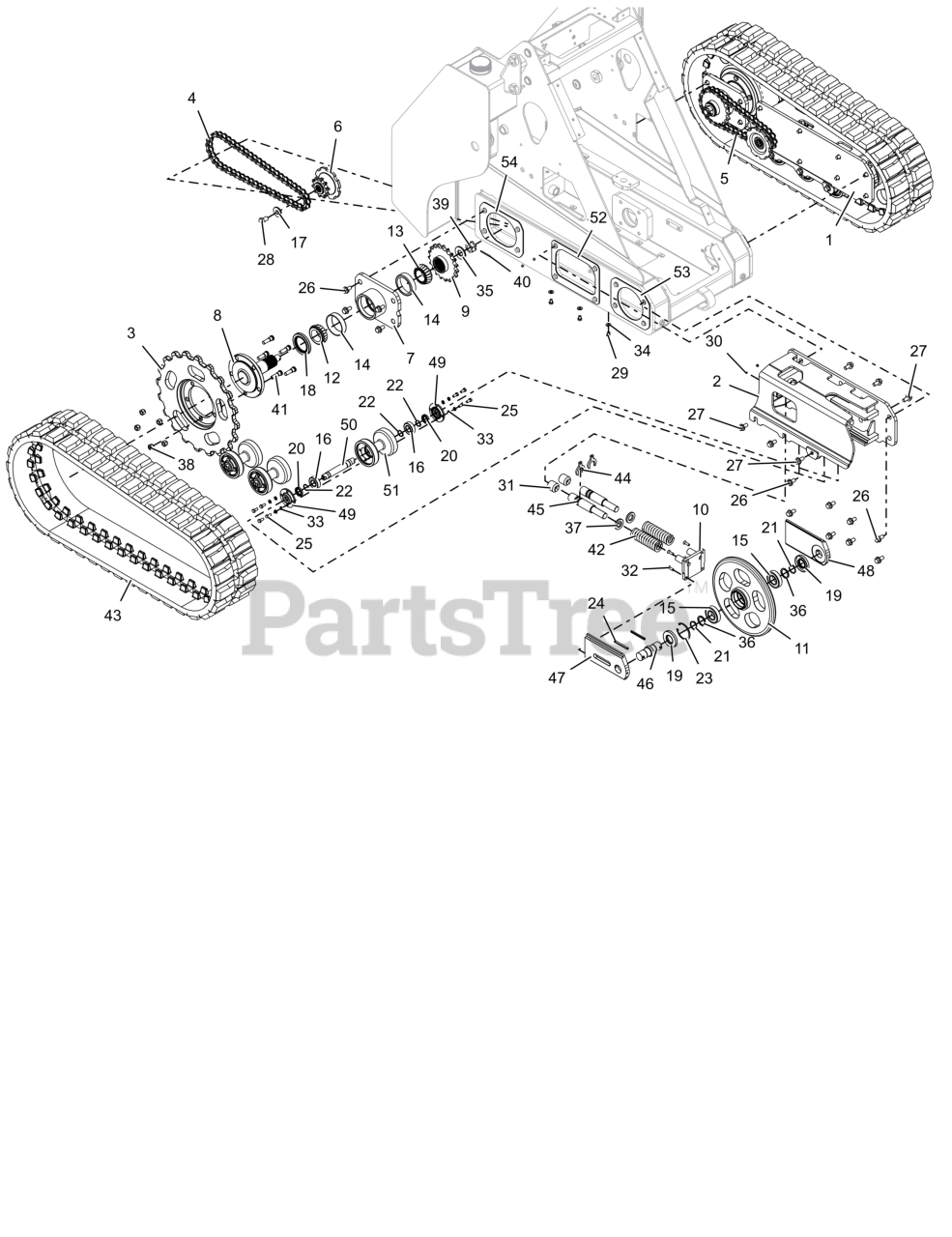

Tracks - Wide Parts Diagram

  • Title

1

Gravely 30104153

MOUNT, IDLER LH - TRACK (RED)

$

$

Currently unavailable

2

Gravely 30104253

MOUNT, IDLER RH - TRACK (RED)

$

$

Currently unavailable

3

Gravely 30107051

WHEEL, DRIVE - TRACK (BLACK)

$

$

Currently unavailable

4

Gravely 30107200

CHAIN, ROLLER -RS80HT 50 PITCH

$

$

Currently unavailable

5

Gravely 30107300

CHAIN, ROLLER -RS80HT 38 PITCH

$

$

Currently unavailable

6

Gravely 30107400

SPROCKET, DRIVE - DT

$

$

Currently unavailable

7

Gravely 30111653

WLDMT, HUB -TRACK (RED)

$

$

Currently unavailable

8

Gravely 30111753

WLDMT, AXLE - TRACK (RED)

$

$

Currently unavailable

9

Gravely 30111800

SPROCKET, DRIVEN -REAR #80 19T

$

$

Currently unavailable

10

Gravely 30112051

PLATE, TENSION -TRACK (BLACK)

$

$

Currently unavailable

11

Gravely 30136751

WHEEL, IDLER - TRACK

$

$

Currently unavailable

12

Gravely 05400806

BRG, CONE 2.063 X 1.193

$129.99

$

Usually ships in 4-12 days

0

13

Gravely 05400807

BRG, CONE 2.000 X 1.193

$116.99

$

Usually ships in 4-12 days

0

14

Gravely 05400808

BRG, CUP 3.672 X .938

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 05400809

BRG-BALL 1.378x2.835x.669

$

$

Currently unavailable

16

Gravely 05421500

BRG-BALL .984X2.04X.59

$13.99

$

In Stock, Qty 8

0

17

Gravely 05501524

SPCR, FLANGE

$

$

Currently unavailable

18

Gravely 05600530

SEAL, OIL - 2.50X3.756X.500

$

$

Currently unavailable

19

Gravely 05600531

SEAL, OIL - 35MMX72MMX10MM

$

$

Currently unavailable

20

Gravely 05600532

SEAL, OIL - 25MMX38MMX7MM

$

$

Currently unavailable

21

Gravely 05700221

RING, RETAINING-EXTERNAL 35MM X 1.5MM

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 05700223

RING, RETAINING-EXTERNAL 25MM X 1.2MM

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05700225

RING, RETAINING-INTERNAL

$11.99

$

Usually ships in 4-12 days

0

24

Gravely 05800211

PIN-ROLL .312X3.00

$

$

Currently unavailable

25

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 9

0

26

Gravely 05902131

BLT, HEX-FLG 0.5-13X1 GR8 ZCC

$

$

Currently unavailable

27

Gravely 05902132

BLT, HEX 0.5-20X1 G8 ZCC

$

$

Currently unavailable

28

Gravely 05902135

BLT, HEX 0.625-18X1 GR5 ZCC

$

$

Currently unavailable

29

Gravely 05967000

@BLT-HEX .38-16X.50 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 06000226

SCR-SET, .312-18X.312 CUP SS

$

$

Currently unavailable

31

Gravely 06000227

SCR-SET, 1.50-6X1.500 CUP

$

$

Currently unavailable

32

Gravely 06100314

SCR, MCH .312-18X1.00 SFH ZCC

$

$

Currently unavailable

33

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 10

0

34

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 15

0

35

Gravely 06401226

WSHR, FLAT - HRD 1.01X2.25X.19

$

$

Currently unavailable

36

Gravely 06401227

WSHR, FLAT - 1.380X1.750X.125

$

$

Currently unavailable

37

Gravely 06401231

WSHR, FLAT -HRD 1.006X1.813X.25

$

$

Currently unavailable

38

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 10

0

39

Gravely 06501019

NUT, SLOTTED-1.00-14

$

$

Currently unavailable

40

Gravely 06702500

PIN, CTR .18X2.00 EXTPRSQCT ZCC

$1.99

$

Usually ships in 4-12 days

0

41

Gravely 07002031

STUD, WHEEL - .50-20 X 1.875LG

$

$

Currently unavailable

42

Gravely 08300733

SPRG, COMPRESSION

$

$

Currently unavailable

43

Gravely 30101500

TRACK, WIDE

$

$

Currently unavailable

44

Gravely 30107151

CLIP, LOCKING (BLACK)

$

$

Currently unavailable

45

Gravely 30107500

ROD, SPRG PUSHER

$

$

Currently unavailable

46

Gravely 30112200

AXLE, IDLER -TRACK

$

$

Currently unavailable

47

Gravely 30112351

PLATE, IDLER SIDE LH (BLACK)

$

$

Currently unavailable

48

Gravely 30112451

PLATE, IDLER SIDE RH (BLACK)

$

$

Currently unavailable

49

Gravely 30112500

CAP, ROLLER

$

$

Currently unavailable

50

Gravely 30112600

AXLE, ROLLER -TRACK

$

$

Currently unavailable

51

Gravely 30112751

WHEEL, ROLLER 200DT (BLACK)

$

$

Currently unavailable

52

Gravely 05600524

GASKET, ACCESS TRANSMISSION

$

$

Currently unavailable

53

Gravely 05600525

GASKET, FRONT TRANSMISSION

$

$

Currently unavailable

54

Gravely 05600526

GASKET, REAR TRANSMISSION

$

$

Currently unavailable
