950010 (Axis 200 DT) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 - 000499) Lift Arms - Hydraulic Cylinders and Hoses Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

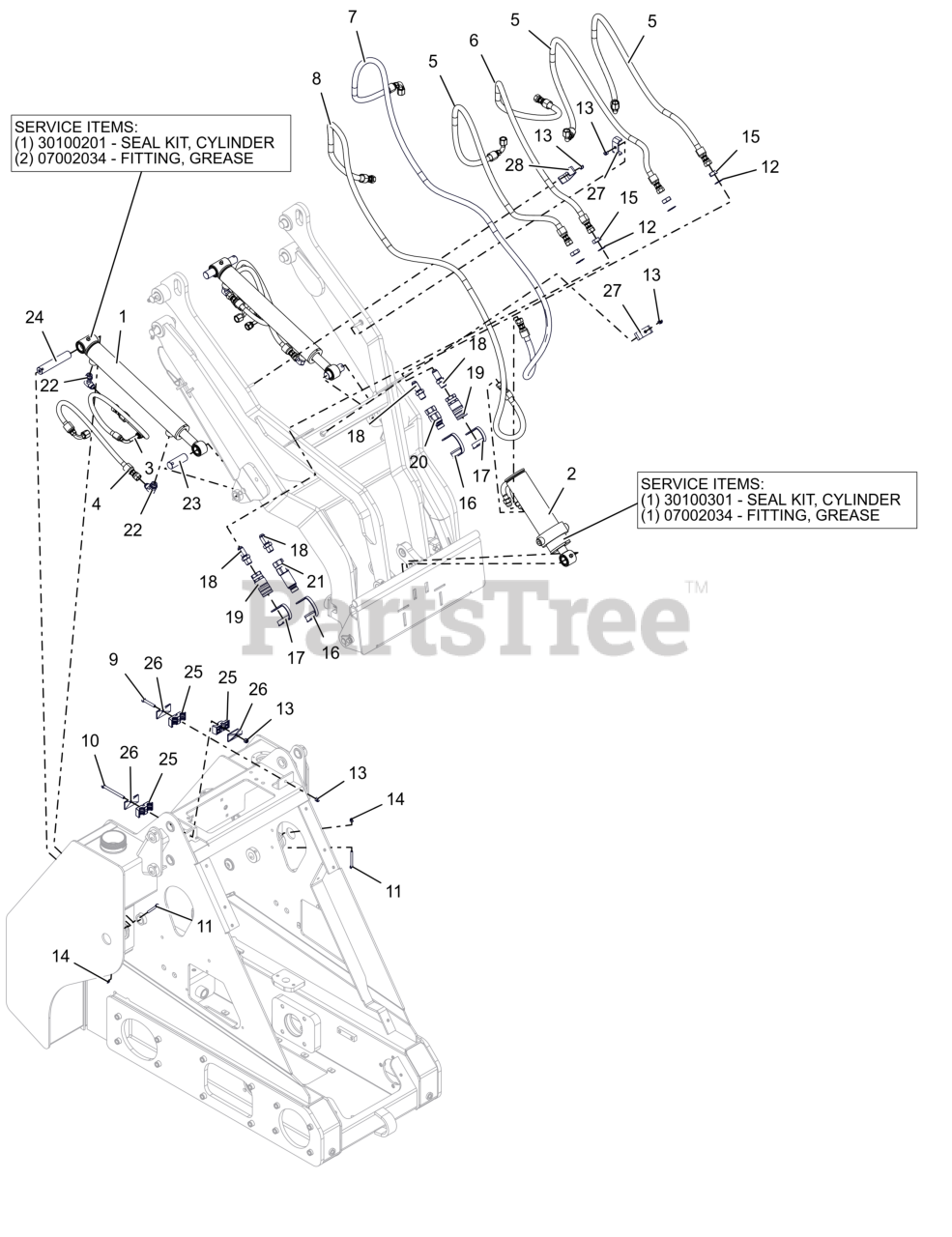

Lift Arms - Hydraulic Cylinders and Hoses Parts Diagram

  • Title

1

Gravely 30100200

CYLINDER, HYDRAULIC - LIFT

$

$

Currently unavailable

1

Gravely 30100201

SEAL, KIT, CYLINDER

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 07002034

FITTING, GREASE

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 55001900

CYLINDER, TILT - W/SAFETY DECAL

$

$

Currently unavailable

2

Gravely 30100301

SEAL, KIT, CYLINDER

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 07002034

FITTING, GREASE

Note: Component Service Part

$

$

Currently unavailable

3

Gravely 30103900

HOSE, HYD .375" X 22.00" LG

$

$

Currently unavailable

4

Gravely 30104000

HOSE, HYD .375" X 23.75" LG

$

$

Currently unavailable

5

Gravely 30102500

HOSE, HYD .375" X 47.75" LG

$

$

Currently unavailable

6

Gravely 30103200

HOSE, HYD .375" X 49.25" LG

$

$

Currently unavailable

7

Gravely 30102700

HOSE, HYD .375" X 77.50" LG

$

$

Currently unavailable

8

Gravely 30103300

HOSE, HYD .375" X

$

$

Currently unavailable

9

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901936

BLT, HEX .31-18X3.75 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05961600

@BLT-HEX .25-20X2.50 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06310800

WSHR-LK-INT .750 YWZC

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500832

NUT,NYL .25-20 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06539900

NUT-JAM .75-16 YWZC

$3.49

$

In Stock, only 2 left!

0

16

Gravely 07002104

CAP, HYD - DUST FFF

$

$

Currently unavailable

17

Gravely 07002105

CAP, HYD - DUST FFM

$

$

Currently unavailable

18

Gravely 07002107

FITTING, HYDRAULIC 2706 08-08

$

$

Currently unavailable

19

Gravely 07002112

COUPLING, HYD -.50 NPTFFF

$

$

Currently unavailable

20

Gravely 07002113

COUPLING, HYD -.50 NPTFFM

$

$

Currently unavailable

21

Gravely 07002114

COUPLING, HYD -.50 NPT3FFM

$

$

Currently unavailable

22

Gravely 07002117

FITTING, HYDRAULIC 6801 8-8

$

$

Currently unavailable

23

Gravely 30104400

PIN, CYLINDER

$

$

Currently unavailable

24

Gravely 30104500

PIN, CYLINDER

$

$

Currently unavailable

25

Gravely 30114500

CLAMP, HOSE - TWIN .75"

$

$

Currently unavailable

26

Gravely 30114600

PLATE, COVER - CLAMP

$

$

Currently unavailable

27

Gravely 30114951

BRKT, RETAINING - HOSE SHORT (BLACK)

$

$

Currently unavailable

28

Gravely 30115051

BRKT, RETAINING - HOSE TALL (BLACK)

$

$

Currently unavailable
