950006 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 & Above) Valve Bank, Levers And Hydraulics - Standard Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

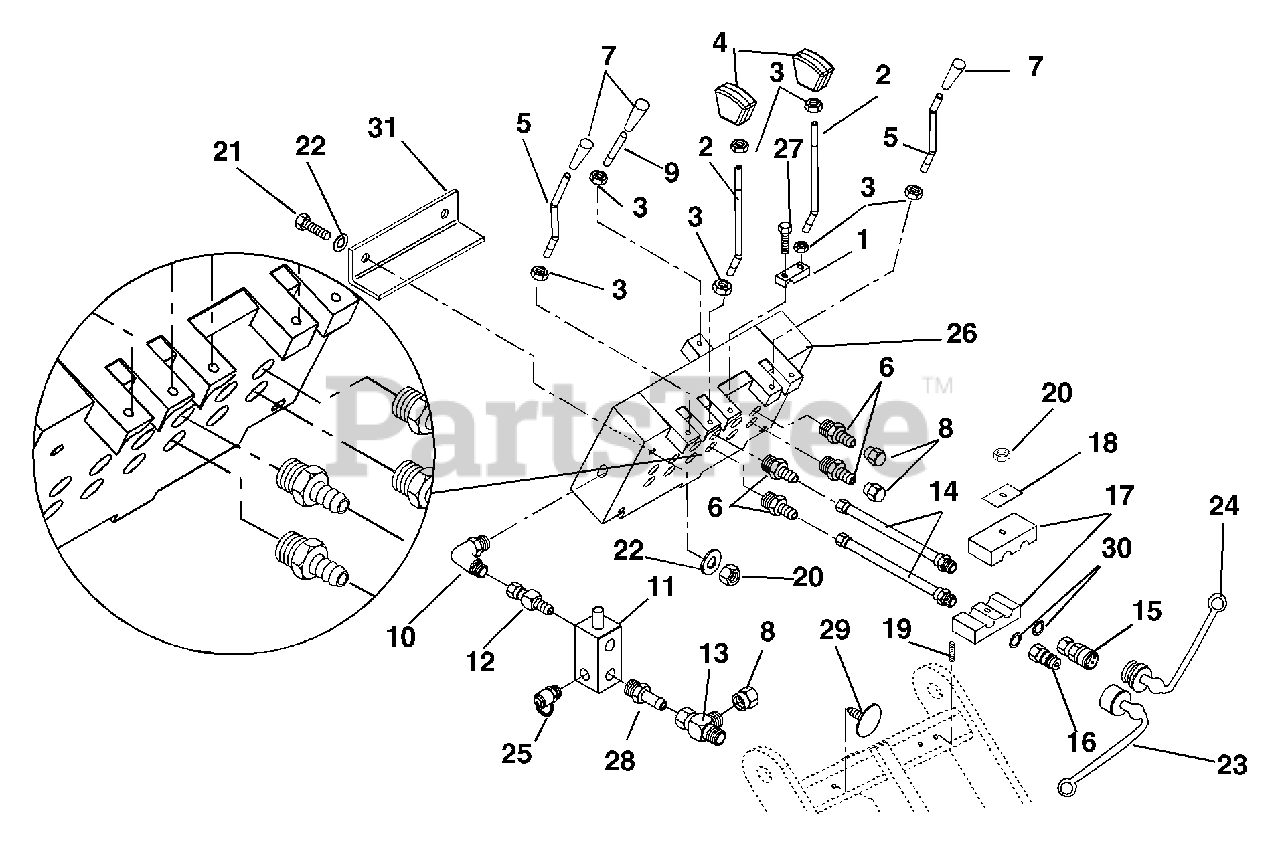

Valve Bank, Levers And Hydraulics - Standard Parts Diagram

  • Title

1

Gravely 05044251

Bracket-Positioner Lever

$

$

Not available

2

Gravely 05044300

Lever-Direction Control

$

$

Not available

3

Gravely 06537800

Nut-Jam M10-1.5

$

$

Not available

4

Gravely 07531200

Knob-Control

$

$

Not available

5

Gravely 05044400

Lever-Cylinder Control

$

$

Not available

6

Gravely 07056100

Adapter-Straight .500-14M x .875-14M

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 07532800

Knob-Control Lever

$

$

Not available

8

Gravely 07058100

Cap-Steel .88-14

Note: (004)

$

$

Not available

9

Gravely 05045300

Lever-Auxiliary Control

$

$

Not available

10

Gravely 07055900

Adapter-90 Degree Elbow .500-14 x .750-16

$

$

Not available

11

Gravely 05035200

Valve-Overcenter

$

$

Not available

12

Gravely 07055800

Adapter-Swivel Connector .75-16 x .75-16

$

$

Not available

13

Gravely 07057900

Adapter-Swivel Nut Run Tee .875-14

$

$

Not available

14

Gravely 05040100

Hose-Hydraulic Auxiliary Power

$

$

Not available

15

Gravely 07058700

Coupler-Female Quick .500-14

$

$

Not available

16

Gravely 07058800

Coupler-Male Quick .500-14

$

$

Not available

17

Gravely 06943900

Clamp-Dual Hose .500 I.D.

$

$

Not available

18

Gravely 07059100

Plate-Cover

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07008800

Stud 8mm-1.25 x 3.62

$

$

Not available

20

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 05964900

Bolt-Hex M8-1.25 x 20

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07058900

Plug-Dust .50

$

$

Not available

24

Gravely 07059000

Cap-Dust .50

$

$

Not available

25

Gravely 07058200

Coupling-Test Port

$

$

Not available

26

Gravely 05035300

Valve-Bank

$

$

Not available

27

Gravely 05929100

Bolt-Hex M10-1.5 x 30 Grade 5

$

$

Not available

28

Gravely 07058400

Adapter-Straight .75-16 x .875-14

$

$

Not available

29

Gravely 05048600

Retainer-Trim

$

$

Not available

30

Gravely 07060200

Seal, Bonded

$

$

Not available

31

05045951

Shield, Valve Heat

$

$

Not available
