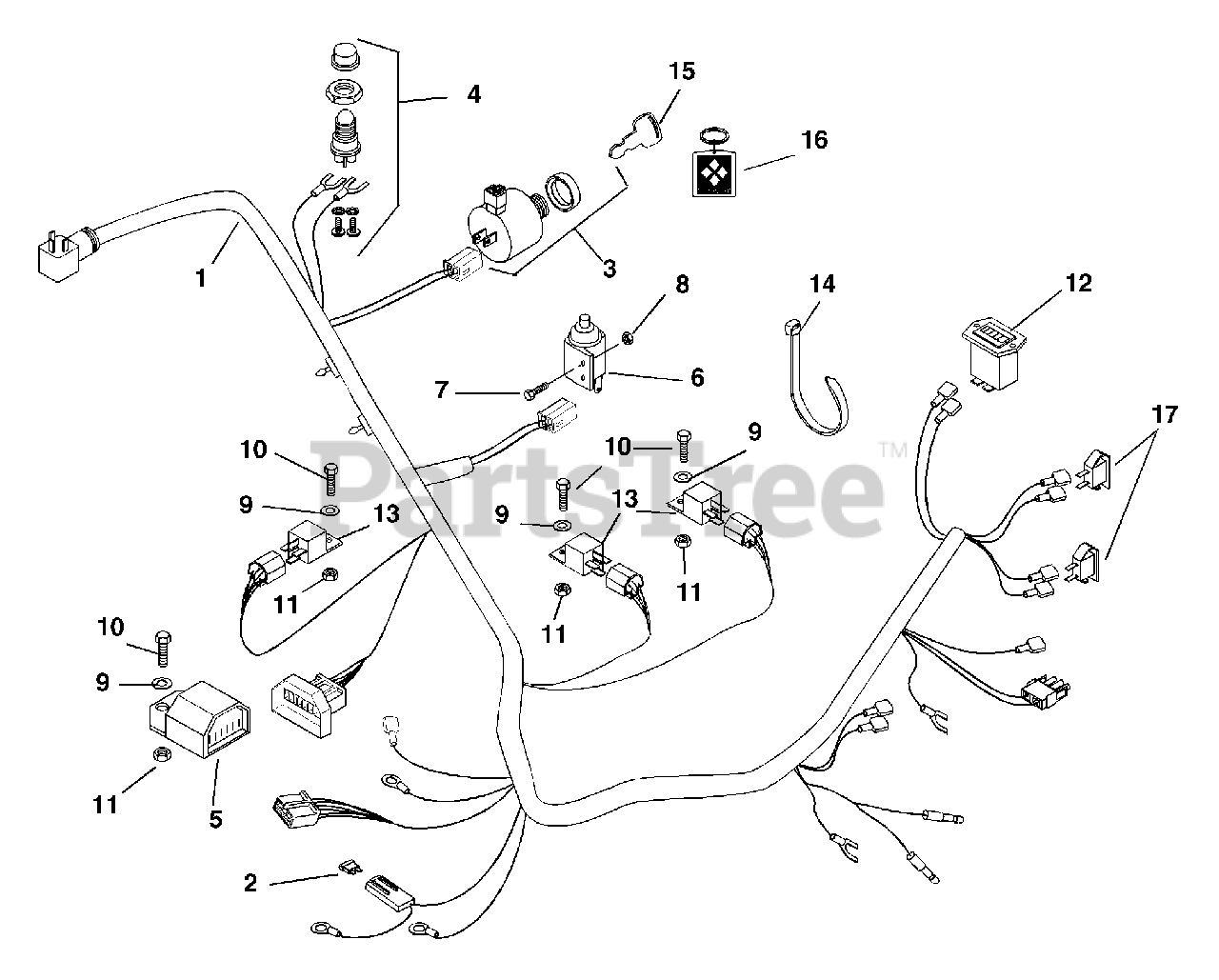

950006 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 & Above) Electrical Harness - Diesel Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Electrical Harness - Diesel Parts Diagram

  • Title

1

Gravely 05051500

Harness,Wiring 20HP Kubota

$

$

Not available

2

Gravely 00524600

Fuse-30 Amp

$

$

Not available

3

Gravely 05050000

Switch-Ignition-Kubota

$

$

Not available

4

Gravely 045237

Switch
(Superseded to 08967700)

$

$

Not available

5

Gravely 09044200

Module-Interlock Delay

$71.99

$

In Stock, only 1 left!

0

6

Gravely 09251900

Switch-Operator Presence

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 05975800

Bolt-Hex M5-.8 x 16

$

$

Not available

8

Gravely 06543000

Nut-Locking-Nylon M5-.8

$

$

Not available

9

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 05975800

Bolt-Hex M5 x .80 x 16

$

$

Not available

11

Gravely 06543000

Nut-Locking-Nylon M5 x .80

$

$

Not available

12

Gravely 03492700

Meter-Hour
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

13

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

14

Gravely 07517300

Cable-Tie Large 5-1/2

$

$

Not available

15

Gravely 05050200

Key, Ignition

$

$

Not available

16

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

17

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0
