950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000600 & Above) Parking Brake Parts Diagram

Skidster with Trencher Valve, 20hp Honda

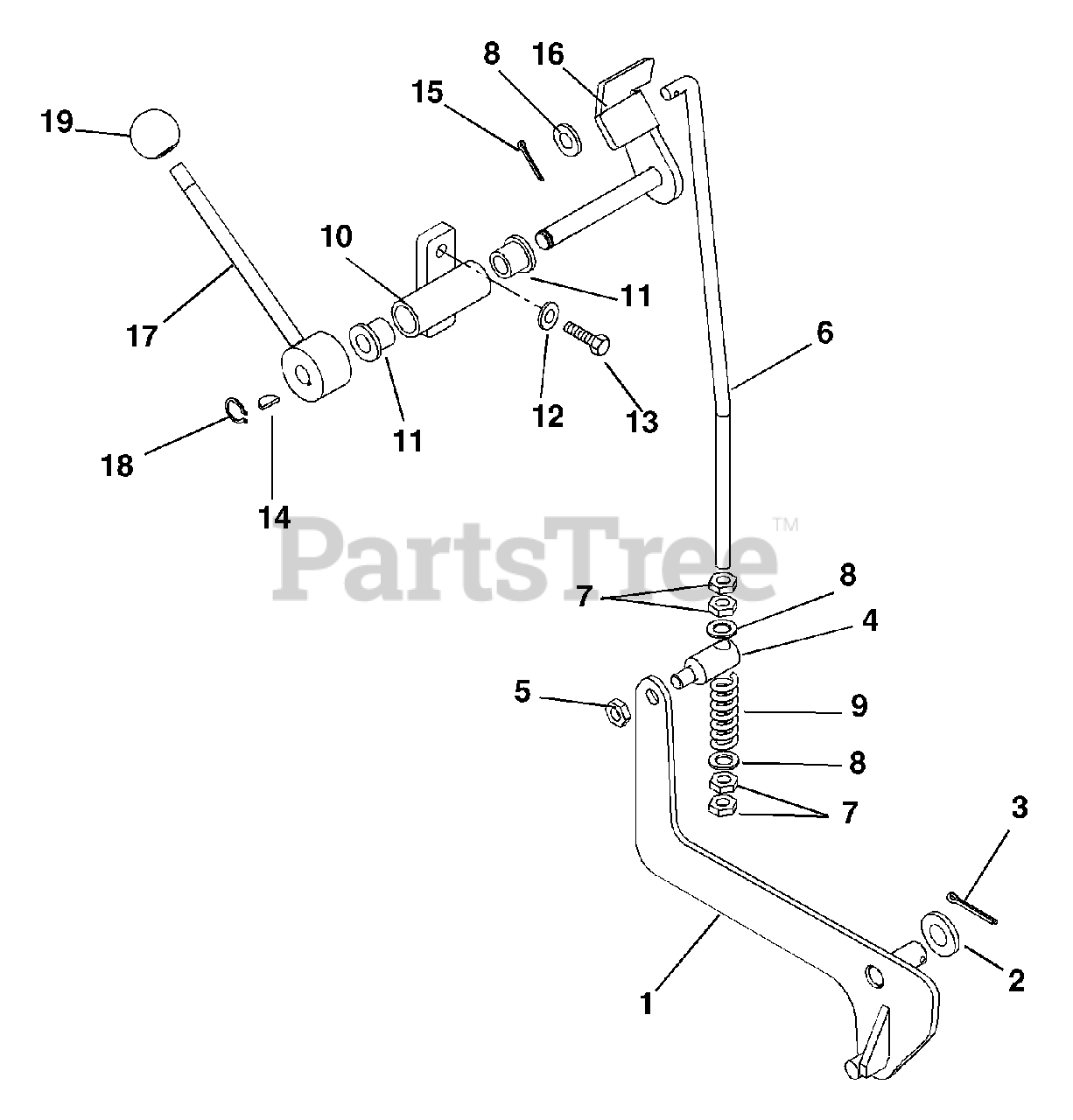

Parking Brake Parts Diagram

  • Title

1

Gravely 05055100

Weldment, Parking Brake Arm

$

$

Not available

2

Gravely 06445100

Washer, Flat-Steel .63 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06714300

Pin, Cotter .12 x 1.50

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 05056600

Trunnion

$

$

Not available

5

Gravely 06542400

Nut, Locking-Nylon M10-1.5

$

$

Not available

6

Gravely 05055300

Linkage, Brake

$

$

Not available

7

Gravely 06537800

Nut, Jam M10-1.5

$

$

Not available

8

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 08328500

Spring, Compression .143 x .71 x 2.00

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 05055250

Weldment, Actuator Pivot

$

$

Not available

11

Gravely 05503100

Bushing, Flange .50 x .75 x .75 x 1.00

$9.99

$

In Stock, only 4 left!

0

12

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05968200

Bolt, Hex M8 x 1.25 x 30 Grade 5

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

15

Gravely 06707000

Pin, Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 05055400

Weldment, Actuator

$

$

Not available

17

Gravely 05055551

Weldment, Brake Lever

$

$

Not available

18

Gravely 05701500

Ring, Retaining-External .50 x .035
(Superseded to 05717100)

$2.49

$

In Stock, Qty 8

0

19

Gravely 07505200

Knob, Steering Lock

$20.99

$

In Stock, only 1 left!

0
