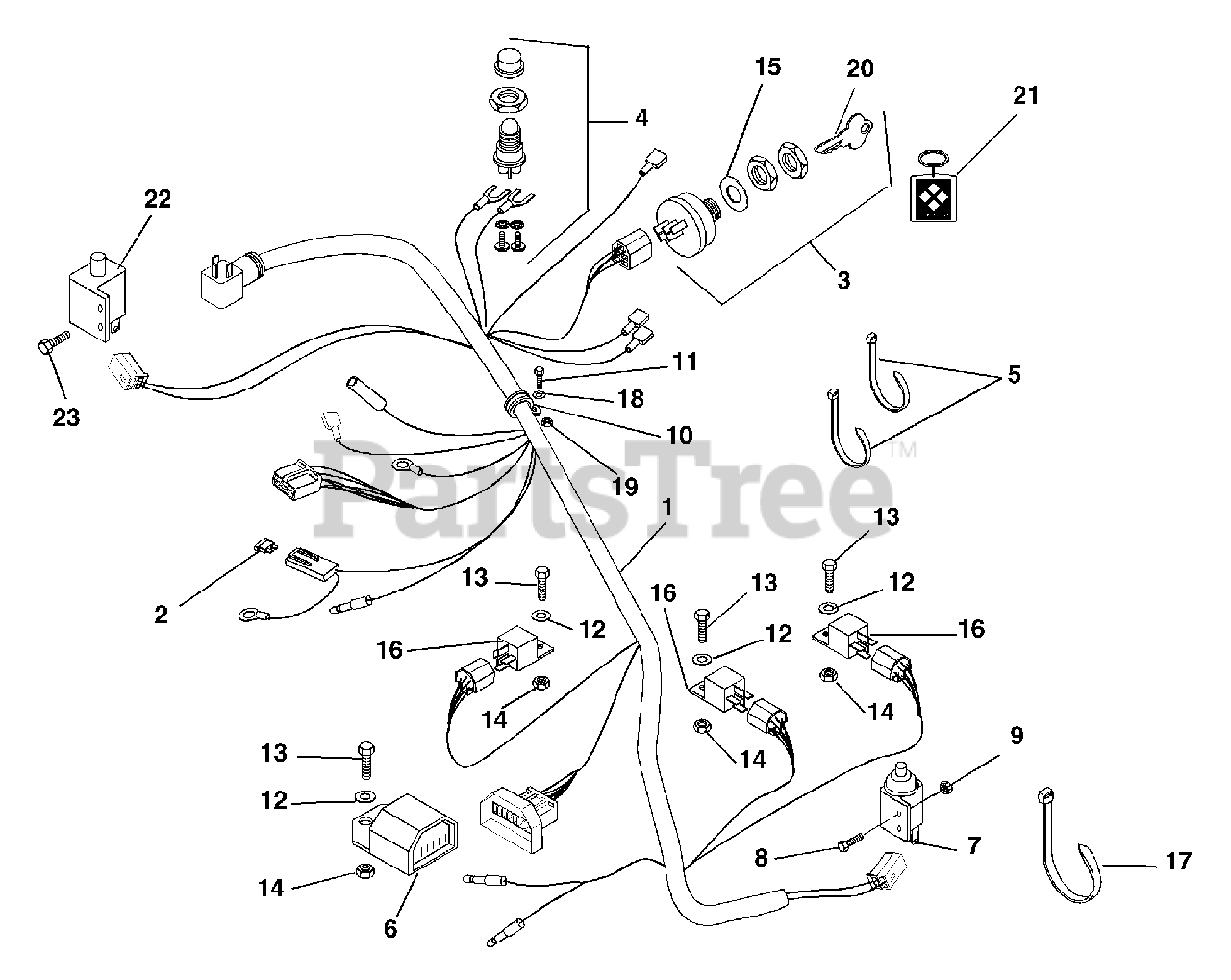

950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000600 & Above) Electrical Harness - Gas Parts Diagram

Skidster with Trencher Valve, 20hp Honda

Electrical Harness - Gas Parts Diagram

  • Title

1

Gravely 05057100

Harness-Wiring 20 H.P. Honda 20 AMP

$

$

Not available

2

Gravely 05046500

Fuse-25 Amp

$

$

Not available

3

Gravely 09089700

Switch-Ignition
(Superseded to 04331700)

$43.99

$

In Stock, Qty 11

0

4

Gravely 045237

Switch
(Superseded to 08967700)

$

$

Not available

5

Gravely 04003500

Tie- Wrap 15.25"

$

$

Not available

6

Gravely 09044200

Module-Interlock Delay

$71.99

$

In Stock, only 1 left!

0

7

Gravely 09251900

Switch-Operator Presence

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 05975800

Bolt-Hex M5-.8 x 16

$

$

Not available

9

Gravely 06543000

Nut-Locking-Nylon M5-.8

$

$

Not available

10

Gravely 06908200

Clamp-Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 05972000

Bolt-Hex M6 x 1.0 x 25

$

$

Not available

12

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 05975800

Bolt-Hex M5 x .80 x 16

$

$

Not available

14

Gravely 06543000

Nut-Locking-Nylon M5 x .80

$

$

Not available

15

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

17

Gravely 07517300

Cable-Tie Large 5-1/2

$

$

Not available

18

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06542600

Nut-Locking Nylon M6-1

$

$

Not available

20

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

22

Gravely 03095700

Switch, Interlock NC

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 05975800

Bolt-Hex M5-.8 x 16

$

$

Not available
