950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000600 & Above) Bucket And Lift Parts Diagram

Skidster with Trencher Valve, 20hp Honda

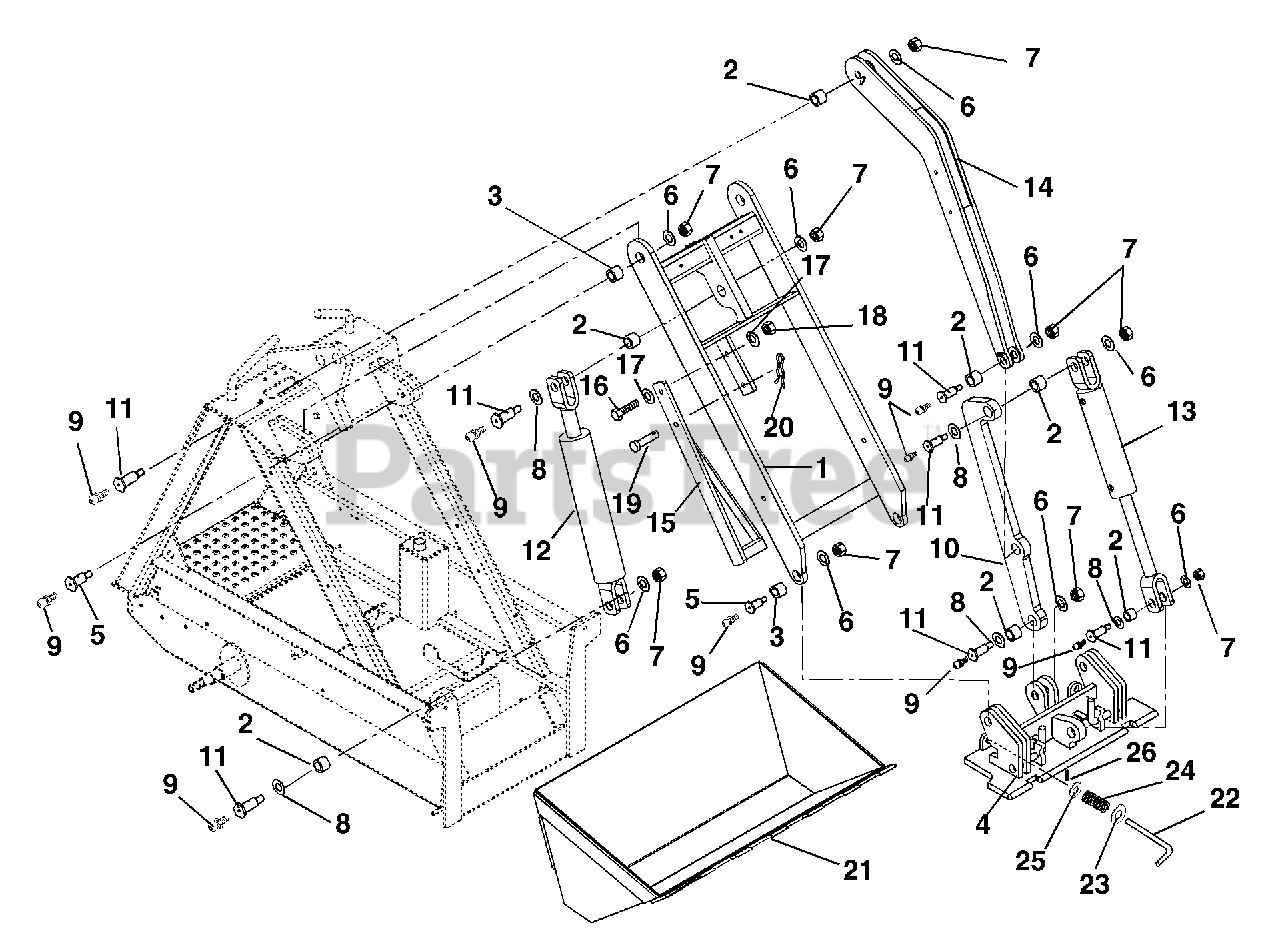

Bucket And Lift Parts Diagram

  • Title

1

Gravely 05060451

Weldment, Boom Assembly

$

$

Not available

2

Gravely 05532900

Bushing-1.00 x 1.25 x 25.65 MM

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 05533000

Bushing-1.00 x 1.25 x 16.125 MM

$

$

Not available

4

Gravely 05058251

Plate, Attachment

$

$

Not available

5

Gravely 05043600

Pin-Linkage "A" 1.50 Hex

$

$

Not available

6

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06541400

Nut-Locking-Nylon M16-1.5

$

$

Not available

8

Gravely 06436300

Washer-Flat-Steel 1.01 x 1.50 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

10

Gravely 05033151

Arm-Tilt

$

$

Not available

11

Gravely 05043700

Pin-Linkage "B" 1.50 Hex

$

$

Not available

12

Gravely 05032800

Cylinder-Lift

$

$

Not available

12

Gravely 55000300

Seal, Replacement

$

$

Not available

13

Gravely 05032700

Cylinder-Crowd

$

$

Not available

13

Gravely 55000200

Seal, Replacement

$

$

Not available

14

Gravely 05033051

Arm-Leveler

$

$

Not available

15

Gravely 05060351

Bracket-Cylinder Lock Weldment

$

$

Not available

16

Gravely 05975100

Bolt-Hex M12-1.75 x 45

$

$

Not available

17

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06542500

Nut-Locking-Nylon M12-1.75

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06815600

Pin-Clevis .438 x 1.50

$

$

Not available

20

Gravely 06714000

Pin-Hair Internal .15 x 2.937

$2.99

$

In Stock, Qty 6

0

21

Gravely 05058751

Bucket

$

$

Not available

22

Gravely 05058300

Pin, Locking

$

$

Not available

23

Gravely 06441500

Washer-Flat-Steel .755 x 1.38 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 08324100

Spring-Compression .08 x .91 x 3.38

$

$

Not available

25

Gravely 06436100

Washer-Flat-Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05800900

Pin-Roll .125 x 1.00

$0.99

$

In Stock, Qty 20+

0
