950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000500 - 000599) Valve Bank To Motor Parts Diagram

Skidster with Trencher Valve, 20hp Honda

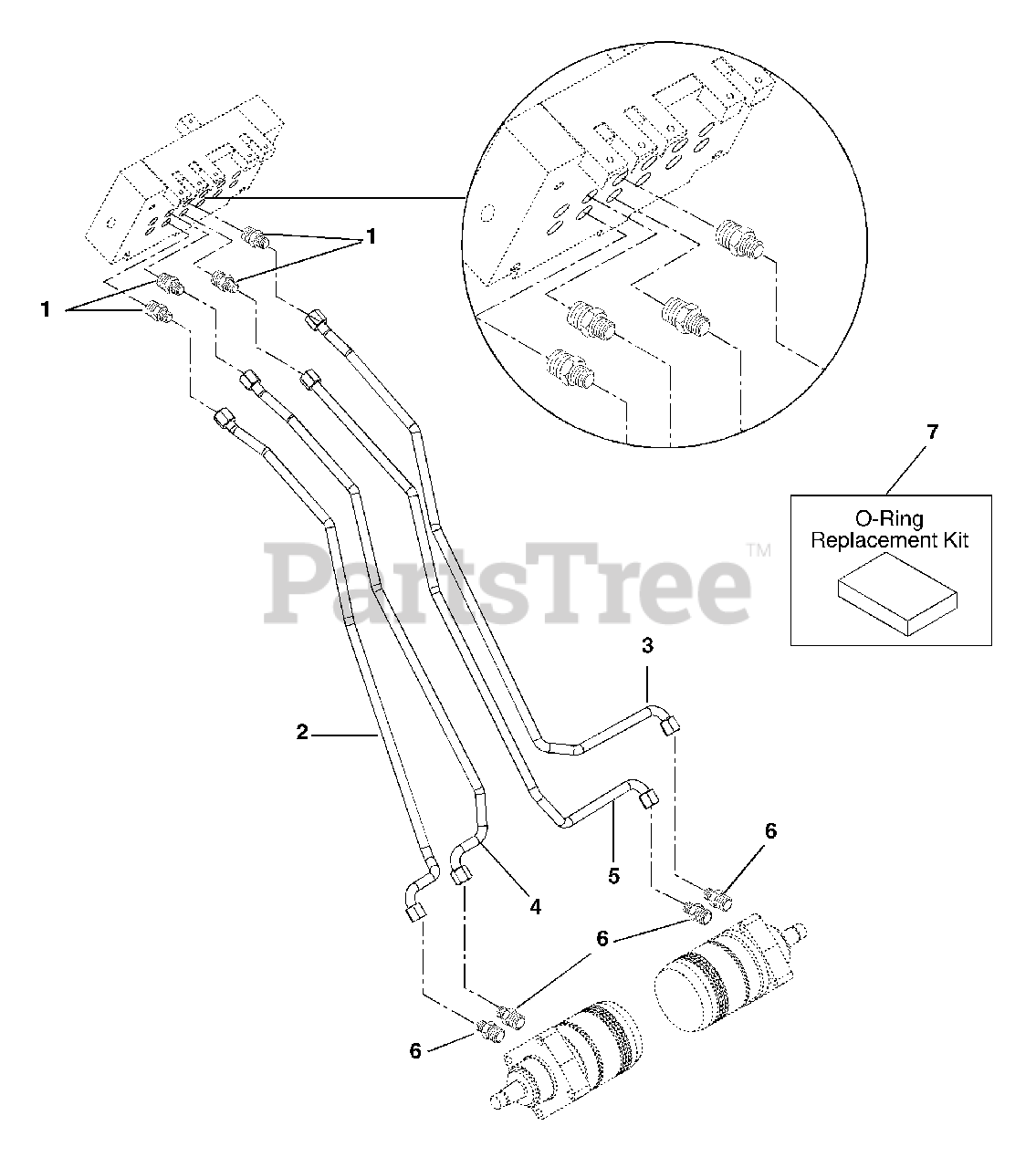

Valve Bank To Motor Parts Diagram

  • Title

1

Gravely 07061800

Fitting, Hydraulic Straight

$

$

Not available

2

Gravely 05052000

Tube, Right Hand Motor

$

$

Not available

3

Gravely 05051900

Tube, Left Hand Motor

$

$

Not available

4

Gravely 05052100

Tube, Right Hand Motor

$

$

Not available

5

Gravely 05052200

Tube, Left Hand Motor

$

$

Not available

6

Gravely 07061500

Fitting, Hydraulic Straight

$

$

Not available

7

Gravely 00046900

Assorted O-Rings

Note: For Hydraulic Components to fittings SAE

$

$

Not available

7

Gravely 00047000

Assorted O-Rings

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
