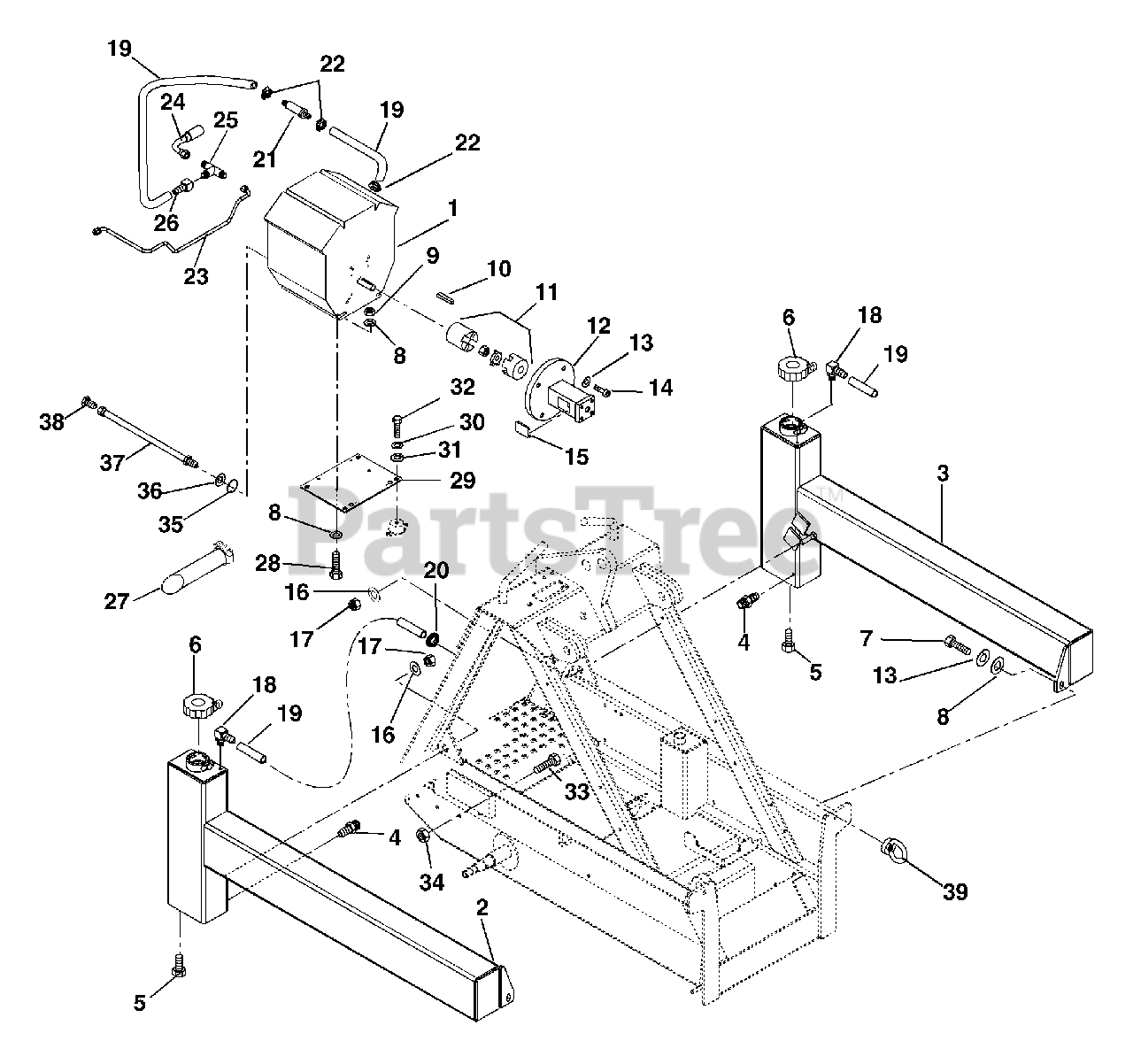

950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000500 - 000599) Engine And Fuel-Gas Parts Diagram

Skidster with Trencher Valve, 20hp Honda

Engine And Fuel-Gas Parts Diagram

  • Title

1

Gravely 08261700

Engine-Honda (GX620K1QDF)

Note: (GX620K1QDF)

$

$

Not available

1

Gravely 05047900

Filter-Air Honda

$

$

Not available

1

Gravely 05048000

Filter-Air Precleaner Honda

$

$

Not available

1

Gravely 05048100

Plug-Spark Honda

$

$

Not available

1

Gravely 05048200

Filter-Fuel Honda

$

$

Not available

1

Gravely 05048300

Clip-Fuel Filter Honda

$

$

Not available

1

Gravely 05031800

Filter-Engine Oil Honda Skidster

$

$

Not available

1

Gravely 05048500

Wrench, Oil Filter Honda

$

$

Not available

2

Gravely 05042450

Tank-Fuel Gas Right Hand

$

$

Not available

3

Gravely 05042550

Tank-Fuel Gas Left Hand

$

$

Not available

4

Gravely 07059400

Adapter-Male Connector .438-20 x .125-27

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 07057700

Plug-Pipe .125-27 NPT

$

$

Not available

6

Gravely 05042800

Cap-Fuel Tank

$

$

Not available

7

Gravely 05955200

Bolt-Hex M10-1.5 x 40

$

$

Not available

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06542400

Nut-Locking-Nylon M10-1.5

$

$

Not available

10

Gravely 06603400

Key-Square .25 x 1.25 x .25 SAE

$3.99

$

In Stock, Qty 11

0

11

Gravely 05034700

Coupling

$

$

Not available

12

Gravely 05034600

Bell-Housing

$

$

Not available

13

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

15

Gravely 05045800

Cover-Access

$

$

Not available

16

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06542500

Nut-Locking-Nylon M12-1.75

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 07057500

Fitting-Barber 90 Degree Elbow .125-27 NPT x .25 I.D. Hose

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 021134

Line-Gas
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07506400

Grommet

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 040742

Filter-Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 05044000

Tube-Fuel Line-Long

$

$

Not available

24

Gravely 05044100

Tube-Fuel Line-Short

$

$

Not available

25

Gravely 07021500

Adapter-Tee .56-18

$30.99

$

Usually ships in 4-12 days

0

26

Gravely 07057200

Fitting-Hose .375-M6

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 05041600

Extension-Muffler Exhaust

$

$

Not available

28

Gravely 05975600

Bolt-Hex M10-1.5 x 45

$

$

Not available

29

Gravely 05034950

Mount-Engine Plate

$

$

Not available

30

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

31

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 05975000

Bolt-Hex .50-20 x 1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

33

Gravely 05972000

Bolt-Hex M6-1.0 x 25

$

$

Not available

34

Gravely 06542600

Nut-Locking-Nylon M6-1

$

$

Not available

35

Gravely 07060300

O-Ring M14 x 1.5

$

$

Not available

36

Gravely 07060400

Ring, Retaining M14

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 05043900

Hose, Engine Oil Drain

$

$

Not available

38

Gravely 07057600

Plug .44-20

$

$

Not available

39

Gravely 07064700

Nut, Eye M10-1.5

$

$

Not available
